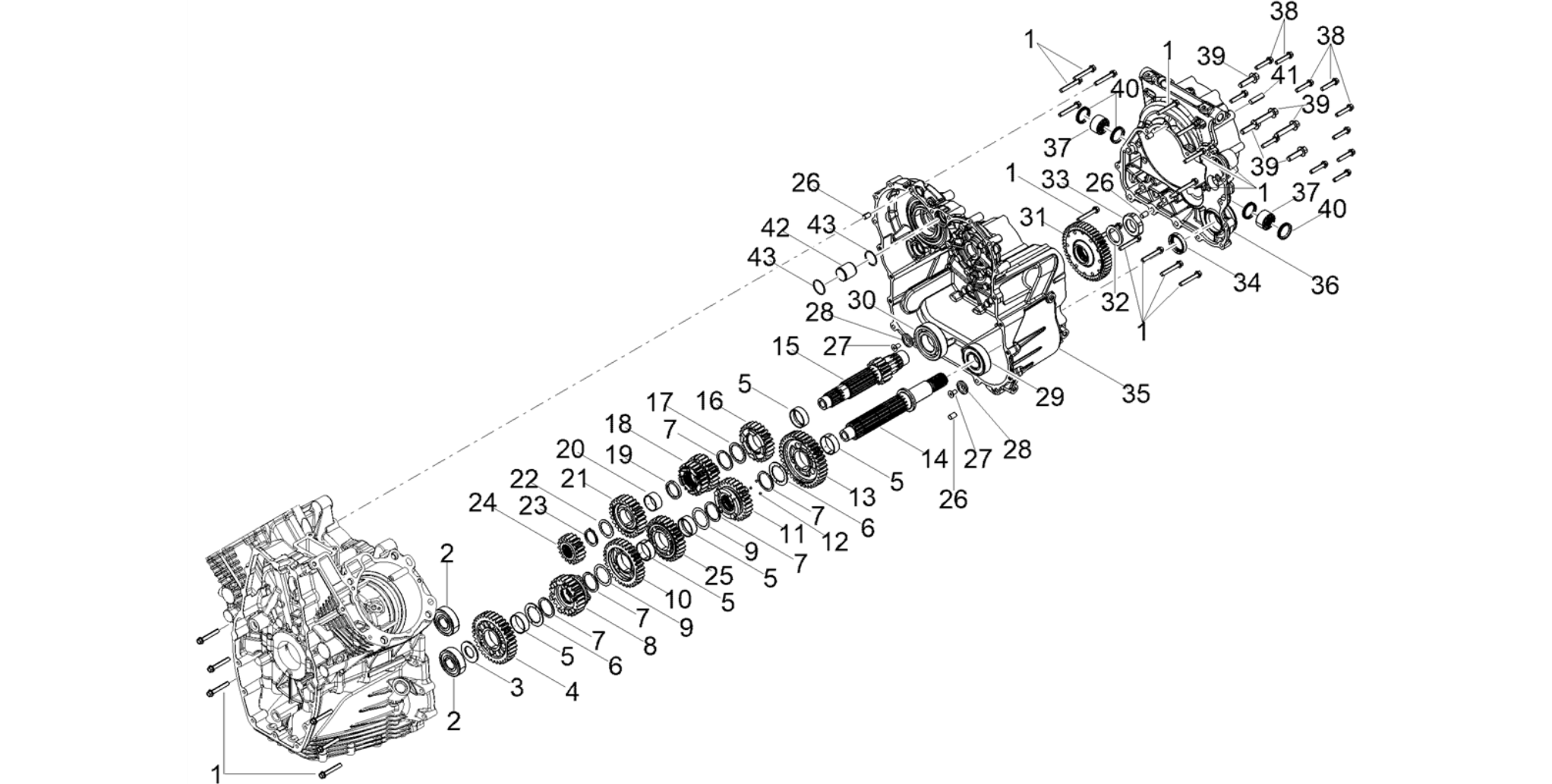

Moto Guzzi V100 Mandello E5+ ABS 2025 (APAC) Gear box - Gear assembly

Position

Part Name

Stock

Price

1

FLANGED HEXAGON SCREW

874550

6 in stock
£3.27

0
2

BALL BEARING 20X47X14

2A001078R

Back order
£32.31

0
3

THRUST WASHER

2A001456

Back order
£3.23

0
4

2ND SPEED GEAR ON TRANSMISSION SHAFT

2A001486

Back order
£47.57

0
5

MOVEABLE BUSH

849308

Back order
£24.40

0
6

CLEARANCE WASHER

849309

Back order
£2.47

0
7

SHAFT SNAP RING

1A002604

Back order
£1.30

0
8

6ND SPEED GEAR

2A001487

Back order
£46.53

0
9

CLEARANCE WASHER

849310

3 in stock
£4.84

0
10

3RD SPEED GEAR

2A001509

Back order
£49.64

0
11

FIFTH SPEED GEAR

2A001506

Back order
£46.53

0
12

BALL D 3.5

2A001391

Back order
£0.56

0
13

1ST SPEED GEAR

2A001492

Back order
£47.57

0
14

SECONDARY GEARBOX SHAFT

2A001459

Back order
£67.22

0
15

PRIMARY GEAR SHAFT

1A026465

Back order
£83.76

0
16

FIFTH SPEED GEAR

2A001244

Back order
£48.78

0
17

CLEARANCE WASHER

849424

Back order
£2.41

0
18

3RD-4TH GEAR

1A026464

Back order
£56.95

0
19

THRUST WASHER

B015040

Back order
£1.79

0
20

MOVEABLE BUSH

974162

Back order
£27.35

0
21

GEAR 6A

2A001319

Back order
£49.93

0
22

CLEARANCE WASHER

849396

Back order
£2.57

0
23

SNAP RING

974165

10 in stock
£2.33

0
24

2ND SPEED GEAR

2A001242

Back order
£40.64

0
25

4TH SPEED GEAR

2A001505

Back order
£49.64

0
26

LOCATING DOWEL Ø7,5X12

277916

29 in stock
£5.04

0
27

COUNTERSUNK SCREW WITH HEXAGON SOCKET

B013608

Back order
£1.48

0
28

COUNTERSUNK WASHER

2A001454

Back order
£3.78

0
29

BALL BEARING 25X52X15

GU92201226

Back order
£37.23

0
30

RADIAL BALL BEARING 30X62X16

1A003038

Back order
£8.73

0
31

ENGINE GEAR

1A020071

Back order
£98.23

0
32

BELLEVILLE SPRING

876337

Back order
£4.46

0
33

NUT

878296

Back order
£10.57

0
34

OIL SEAL

B018223

Back order
£3.84

0
35

TRANSMISSION CAGE

2A001453

Back order
£369.94

0
36

GEARBOX COVER

2A001499

Back order
£87.89

0
37

ROLLER CAGE 22X28X16

AP8110067

6 in stock
£13.32

0
38

SCREW W/ FLANGE M6X30

874551

10 in stock
£1.00

0
39

SCREW M8X40

825758
Replaced by

SCREW W/ FLANGE M8X40

873980

Discontinued

Back order
N/A

£2.79

0
40

GASKET Ø22XØ28X4

2B005214

Back order
£10.04

0
41

SCREW WITHOUT HEAD M8X30

1A025280

Back order
£1.55

0
42

TUBE

1A020040

Back order
£2.75

0
43

OIL SEAL 26.7X1.78

B019103

Back order
£0.84

0
