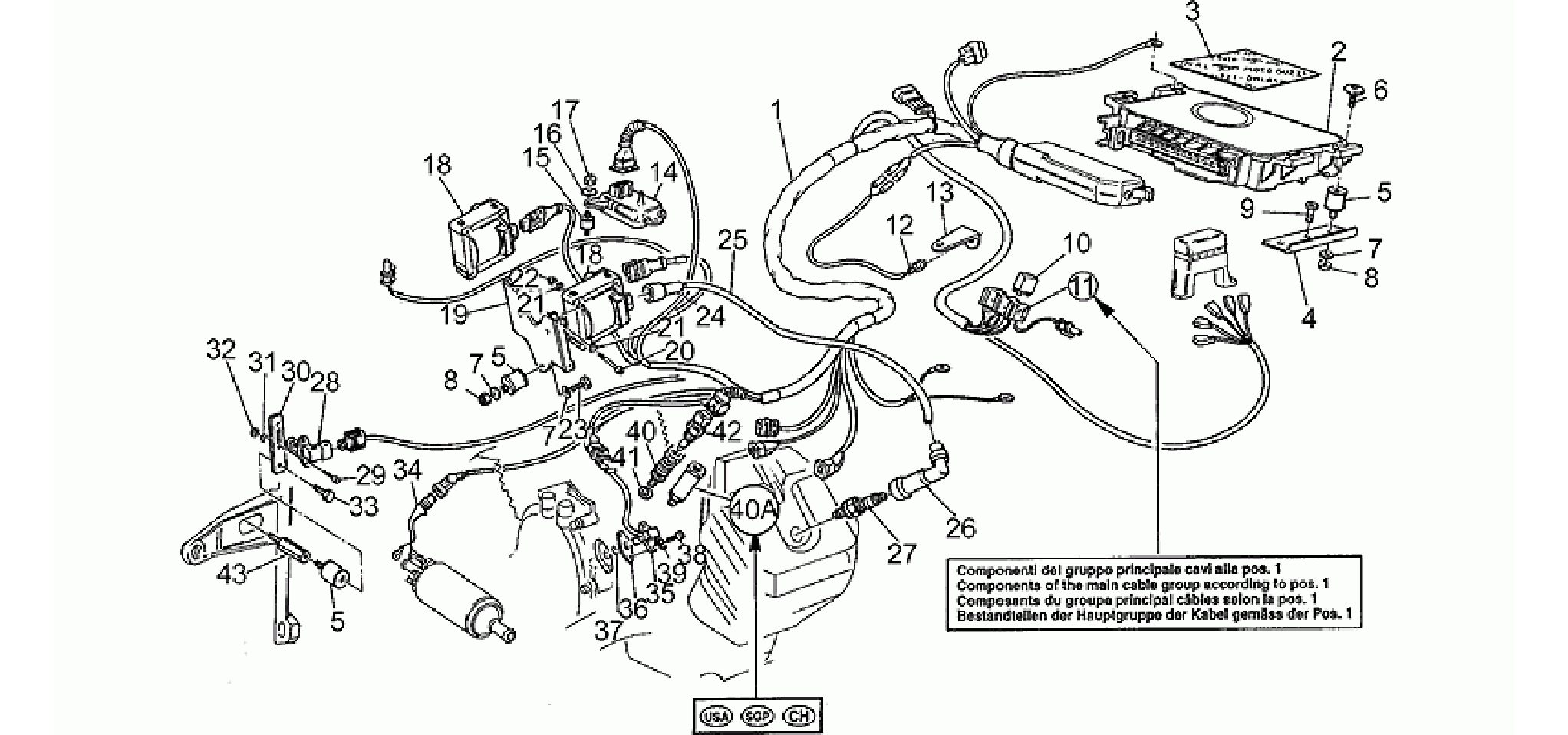

Moto Guzzi V 10 Centauro 1000 1997-1999 Electrical system (33.24)

Position

Part Name

Stock

Price

1

INJECTION WIRING

GU02725800

Back order
£0.00

0
2

ECU

GU02729501

more info + more info -

Technical Specification: From frame KK12495[T7]

Back order
£1,454.56

0
2

ECU

GU02729500

more info + more info -

Technical Specification: Until frame KK12494[T6]

Back order
£554.65

0
3

TAMPERPROOF DATAPLATE

GU01732001

2 in stock
£20.04

0
4

PLATE

GU02728700

Back order
£2.50

0
5

SILENT-BLOCK

GU93222020
Replaced by

SILENT-BLOCK

GU93222023

7 in stock

10 in stock
£11.19

£11.19

0

0
6

SCREW

GU98230616

Back order
£10.00

0
7

WASHER

GU95000206

Back order
£0.76

0
8

NUT M6X1

GU92630106

4 in stock
£3.93

0
9

SCREW

GU98230612

Back order
£1.13

0
10

RELAY SIEMENS A302/B1008

GU30732560

Back order
£33.52

0
11

RELAIS SUPPORT

GU30732400

Back order
£12.09

0
12

LED

GU29727860

Back order
£12.51

0
13

SUPPORT PLATE

GU30732900

Back order
£11.29

0
14

PRESSURE SENSOR

GU29727061

Back order
£503.78

0
15

SILENT-BLOCK

GU93211315

Back order
£8.26

0
16

WASHER

GU95100025

Back order
£1.42

0
17

NUT

GU92601004

Back order
£0.84

0
18

HT COIL

GU30716500

Back order
£156.83

0
19

BRACKET

GU01407400
Replaced by

COIL HOLDER

GU01407460

Discontinued

Back order
N/A

£31.03

0
20

SCREW

GU98620125

Back order
£0.30

0
21

WASHER

GU95004204

Back order
£0.60

0
22

NUT M4X0,7

GU92630104

Back order
£0.76

0
23

SCREW

GU98054308

Back order
£0.00

0
24

CAP

GU14717600

1 in stock
£2.97

0
25

HT CABLE

GU01718350

Back order
£11.83

0
26

SPARK PLUG CAP

GU30717402

Back order
£12.41

0
27

SPARK PLUG NGK DR9EA

GU30717002

Back order
£5.34

0
28

AIR TEMP. SENSOR

GU30729331
Replaced by

AIR TEMP. SENSOR

GU30729330

Discontinued

Back order
N/A

£92.97

0
29

SCREW

GU98610110

Back order
£0.76

0
30

PLATE

GU02728200

Back order
£2.65

0
31

WASHER

GU95120032

Back order
£0.94

0
32

NUT

GU92601003

Back order
£0.43

0
34

FUEL PUMP WIRING

GU01738500

Back order
£14.37

0
35

PHASE/REVOLUTION SENSOR

GU01721600

Back order
£245.94

0
36

GASKET 0,5 MM

GU29722760

3 in stock
£2.60

0
37

O-RING

GU90706141
Replaced by

O-RING

847180

Discontinued

19 in stock
N/A

£2.33

0
38

HEX SOCKET SCREW

GU98622210

Back order
£0.76

0
39

WASHER

GU95004205

Back order
£0.84

0
40

SENSOR SUPPORT

GU30163301

more info + more info -

Technical Specification: To the engine number KK12494[M1]

Back order
£35.37

0
40

SENSOR SUPPORT

GU02163300

more info + more info -

Technical Specification: See spare parts comm.n.012 of 1998[01298N] From the engine number KK12495[M2]

Back order
£19.76

0
41

WASHER 10,2X18X2

GU95004210

Back order
£0.76

0
42

OIL TEMPERATURE SENSOR

GU29729461

5 in stock
£111.19

0
43

STUD BOLT

GU27742010

Back order
£7.60

0
