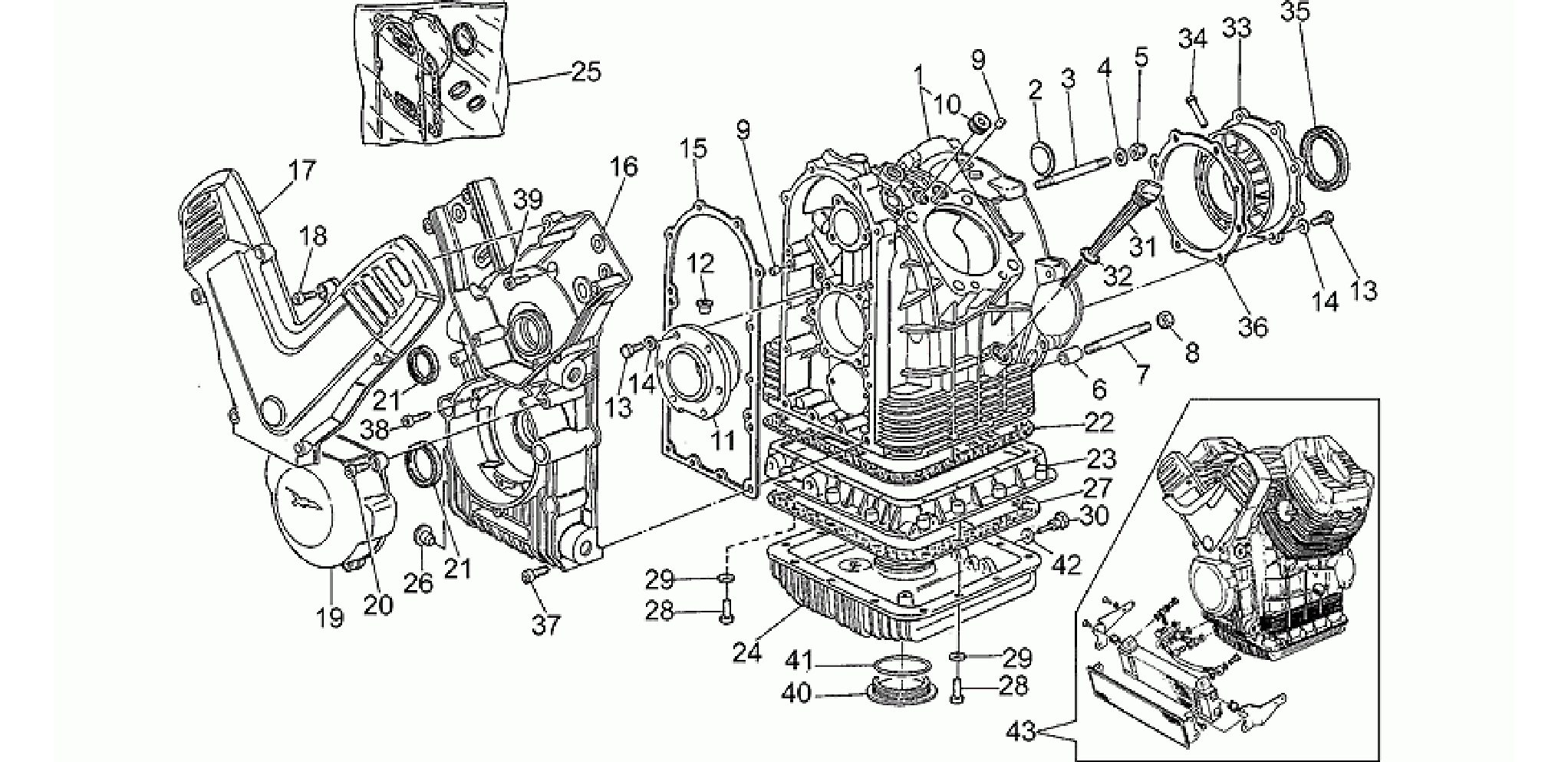

Moto Guzzi V 10 Centauro 1000 1997-1999 Crank-case

Crank-case
Skip to results list
Position
Part Name
Stock
Price
  • 1
    CRANKCASE

    CRANKCASE

    GU02000700
    Replaced by

    CRANKCASE

    GU01000750
    Discontinued
    Back order
    N/A
    £1,174.33
    0
  • 2
    DISC

    DISC

    GU12003900
    Back order
    £6.08
    0
  • 3
    STUD BOLT M8X66

    STUD BOLT M8X66

    GU96508066
    Back order
    £37.51
    0
  • 4
    WASHER

    WASHER

    GU95004208
    8 in stock
    £0.58
    0
  • 5
    NUT

    NUT

    GU92781081
    Back order
    £7.99
    0
  • 6
    COUPLING BUSH

    COUPLING BUSH

    GU12018900
    Back order
    £8.02
    0
  • 7
    STUD BOLT M8X75

    STUD BOLT M8X75

    GU96508075
    Back order
    £10.02
    0
  • 8
    NUT

    NUT

    GU92602208
    Back order
    £0.39
    0
  • 9
    PIN

    PIN

    GU95512081
    Back order
    £3.23
    0
  • 10
    COVER

    COVER

    GU12065400
    Back order
    £23.73
    0
  • 11
    FLANGE MIN.0,2 MM

    FLANGE MIN.0,2 MM

    GU14011901
    more info + more info -
    Technical Specification: Tolerance min.[M]
    Back order
    £331.61
    0
  • 11
    COMPLETE FLANGE

    COMPLETE FLANGE

    GU14011900
    more info + more info -
    Technical Specification: Tolerance standard[std]
    Back order
    £115.95
    0
  • 12
    PIN

    PIN

    GU12012200
    Back order
    £14.99
    0
  • 13
    SCREW

    SCREW

    GU98054425
    Back order
    £0.38
    0
  • 14
    SPRING WASHER 8X15X0,3

    SPRING WASHER 8X15X0,3

    GU61270300
    8 in stock
    £1.27
    0
  • 15
    COVER GASKET

    COVER GASKET

    GU12001200
    Replaced by

    COVER GASKET

    GU05001230
    Discontinued
    2 in stock
    N/A
    £13.25
    0
  • 16
    TIMING SYSTEM COVER

    TIMING SYSTEM COVER

    GU01001450
    Back order
    £162.73
    0
  • 17
    COVER

    COVER

    GU30056800
    Back order
    £21.44
    0
  • 18
    HEX SOCKET SCREW M6X20

    HEX SOCKET SCREW M6X20

    GU98612320
    Back order
    £0.79
    0
  • 19
    COVER

    COVER

    GU30001600
    Back order
    £10.65
    0
  • 20
    HEX SOCKET SCREW

    HEX SOCKET SCREW

    GU98622316
    Replaced by

    HEX SOCKET SCREW M6X16

    GU98682316
    Discontinued
    9 in stock
    N/A
    £0.94
    0
  • 21
    GASKET RING 28X38X7

    GASKET RING 28X38X7

    GU90402840
    1 in stock
    £11.39
    0
  • 22
    GASKET

    GASKET

    GU01003650
    11 in stock
    £9.54
    0
  • 23
    MOTOR OIL FLANGE

    MOTOR OIL FLANGE

    GU01003252
    Back order
    £117.23
    0
  • 24
    MOTOR OIL CUP

    MOTOR OIL CUP

    GU01003550
    Back order
    £200.42
    0
  • 25
    GASKET SET

    GASKET SET

    GU01998950
    Back order
    £481.71
    0
  • 26
    COVER

    COVER

    GU30002100
    Back order
    £18.70
    0
  • 27
    GASKET

    GASKET

    GU01003600
    1 in stock
    £9.54
    0
  • 28
    SCREW

    SCREW

    GU98622322
    Back order
    £0.76
    0
  • 29
    WASHER 6,15X11X0,8

    WASHER 6,15X11X0,8

    GU95004206
    Replaced by

    WASHER 6,15X11X0,8

    GU95008206
    Discontinued
    11 in stock
    N/A
    £1.85
    0
  • 30
    OIL UNLOAD PLUG M10X1

    OIL UNLOAD PLUG M10X1

    GU31003766
    more info + more info -
    Technical Specification: Short magnet[CC]
    6 in stock
    £11.70
    0
  • 30
    OIL UNLOAD PLUG

    OIL UNLOAD PLUG

    GU30003770
    more info + more info -
    Technical Specification: Long magnet[CL]
    Back order
    £13.70
    0
  • 31
    OIL LEVEL PLUG

    OIL LEVEL PLUG

    GU01004900
    Back order
    £4.80
    0
  • 32
    O-RING 17,86X2,62

    O-RING 17,86X2,62

    GU90706178
    9 in stock
    £0.74
    0
  • 33
    FLANGE MIN.0,6 MM

    FLANGE MIN.0,6 MM

    GU12011403
    more info + more info -
    Technical Specification: Tolerance min.[M]
    Back order
    £345.47
    0
  • 33
    FLANGE MIN.0,4 MM

    FLANGE MIN.0,4 MM

    GU12011402
    more info + more info -
    Technical Specification: Tolerance min.[M]
    Back order
    £331.61
    0
  • 33
    FLANGE MIN.0,2 MM

    FLANGE MIN.0,2 MM

    GU12011401
    more info + more info -
    Technical Specification: Tolerance min.[M]
    Back order
    £331.61
    0
  • 33
    COMPLETE FLANGE

    COMPLETE FLANGE

    GU12011400
    more info + more info -
    Technical Specification: Tolerance standard[std]
    Back order
    £126.05
    0
  • 34
    PIN

    PIN

    GU12011700
    Back order
    £11.99
    0
  • 35
    GASKET RING

    GASKET RING

    GU90405367
    1 in stock
    £26.49
    0
  • 36
    GASKET

    GASKET

    GU12011800
    Replaced by

    GASKET

    GU05011830
    Discontinued
    3 in stock
    N/A
    £7.86
    0
  • 37
    SCREW M6X35

    SCREW M6X35

    GU98620335
    Replaced by

    SCREW

    AP8123947
    Discontinued
    Back order
    N/A
    £2.00
    0
  • 38
    HEX SOCKET SCREW

    HEX SOCKET SCREW

    GU98622325
    Back order
    £0.76
    0
  • 39
    SCREW

    SCREW

    GU98622320
    Back order
    £0.76
    0
  • 40
    PLUG

    PLUG

    GU01003400
    1 in stock
    £77.44
    0
  • 41
    O-RING

    O-RING

    GU90706948
    8 in stock
    £10.00
    0
  • 42
    GASKET

    GASKET

    GU10528900
    8 in stock
    £3.30
    0
  • 43
    ENGINE W/O GEARBOX, BLANK

    ENGINE W/O GEARBOX, BLANK

    GU400034900600
    more info + more info -
    Technical Specification: See spare parts comm.n.012 of 1998[01298N] From the engine number KK12495[M2]
    Back order
    £5,205.02
    0
  • 43
    ENGINE W/O GEARBOX, BLANK

    ENGINE W/O GEARBOX, BLANK

    GU02690200
    more info + more info -
    Technical Specification: To the engine number
    Back order
    £5,317.16
    0
