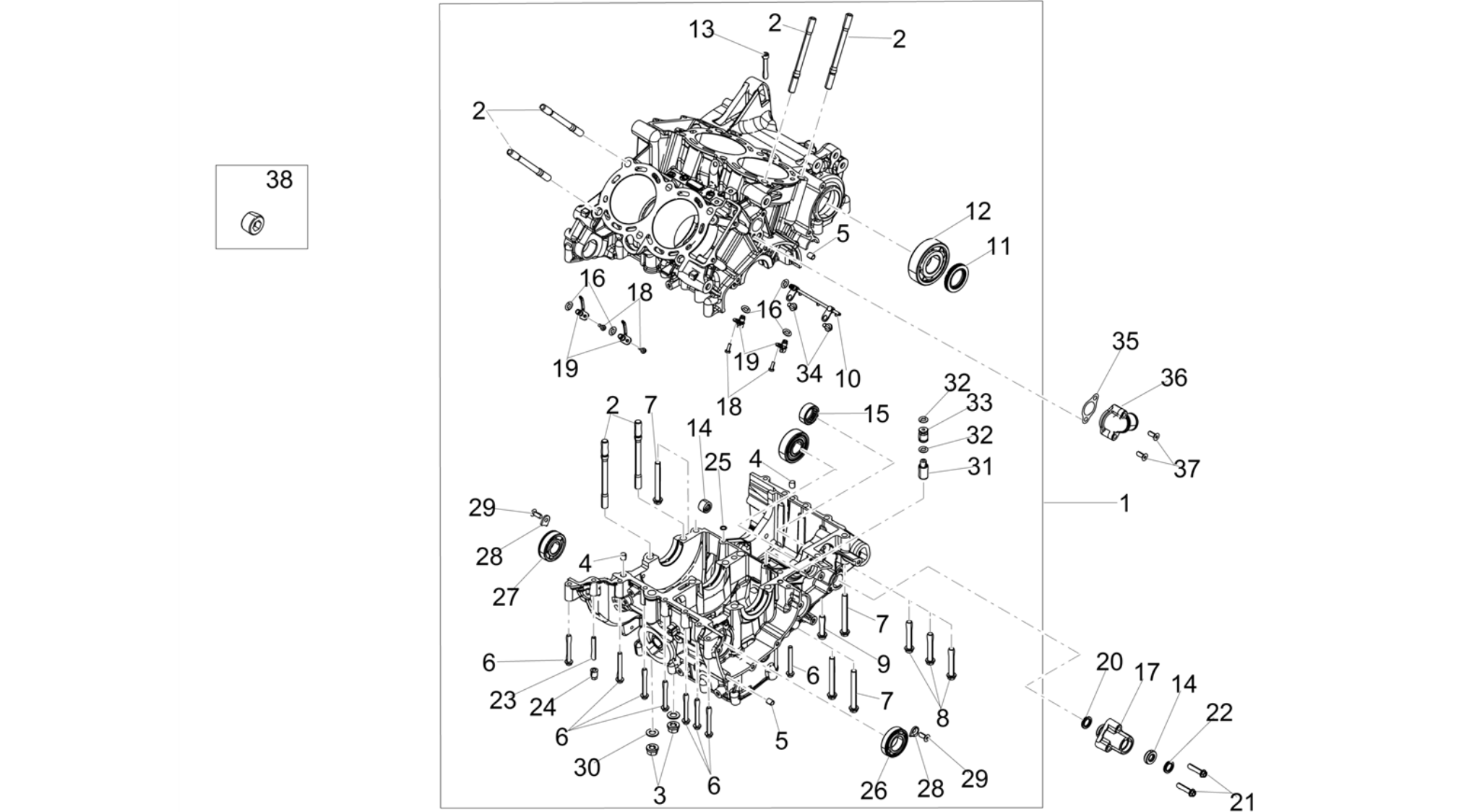

Aprilia Tuono V4 Factory 1100 E5+ 2025 (Nafta) Crankcases I

Crankcases I
Skip to results list
Position
Part Name
Stock
Price
  • 1
    CRANKCASE

    CRANKCASE

    1A0248455
    Back order
    £2,250.54
    0
  • 2
    STUD BOLT M10X1,5

    STUD BOLT M10X1,5

    1A011257
    Back order
    £10.21
    0
  • 3
    FLANGED NUT M10X1

    FLANGED NUT M10X1

    897434
    14 in stock
    £10.78
    0
  • 4
    LOCATING DOWEL M8X12

    LOCATING DOWEL M8X12

    857427
    4 in stock
    £1.77
    0
  • 5
    LOCATING DOWEL

    LOCATING DOWEL

    411209
    22 in stock
    £3.58
    0
  • 6
    SCREW W/ FLANGE M6X50

    SCREW W/ FLANGE M6X50

    AP9100433
    12 in stock
    £1.82
    0
  • 7
    SCREW W/ FLANGE

    SCREW W/ FLANGE

    AP8152294
    104 in stock
    £1.49
    0
  • 8
    SCREW W/ FLANGE

    SCREW W/ FLANGE

    AP8152292
    64 in stock
    £1.53
    0
  • 9
    SCREW W/ FLANGE

    SCREW W/ FLANGE

    AP8152289
    15 in stock
    £3.77
    0
  • 10
    LUBRICATION PIPE

    LUBRICATION PIPE

    2A000569
    1 in stock
    £48.60
    0
  • 11
    GASKET RING 30X47X7

    GASKET RING 30X47X7

    857128
    3 in stock
    £28.63
    0
  • 12
    BALL BEARING 30X72X19

    BALL BEARING 30X72X19

    898633
    1 in stock
    £20.34
    0
  • 13
    HEX SOCKET SCREW M6X40

    HEX SOCKET SCREW M6X40

    AP8152003
    5 in stock
    £4.96
    0
  • 14
    12X8X12 ROLLER BEARING

    12X8X12 ROLLER BEARING

    B045224
    2 in stock
    £5.92
    0
  • 15
    ROLLER CAGE HK1512

    ROLLER CAGE HK1512

    857249
    4 in stock
    £22.27
    0
  • 16
    O-RING 6X1

    O-RING 6X1

    GU90706009
    11 in stock
    £1.85
    0
  • 17
    MAINTENANCE

    MAINTENANCE

    857090
    Back order
    £83.34
    0
  • 18
    SCREW TB 4X12 TORX

    SCREW TB 4X12 TORX

    B046202
    Back order
    £0.45
    0
  • 19
    PISTON COOLING JET

    PISTON COOLING JET

    2A000885
    Back order
    £28.17
    0
  • 20
    GASKET RING 17,12X2,62

    GASKET RING 17,12X2,62

    857109
    2 in stock
    £4.06
    0
  • 21
    HEX SOCKET SCREW M6X35

    HEX SOCKET SCREW M6X35

    AP8150285
    93 in stock
    £1.56
    0
  • 22
    OIL SEAL 12X22

    OIL SEAL 12X22

    1A017552
    5 in stock
    £25.08
    0
  • 23
    SPECIAL STUD BOLT

    SPECIAL STUD BOLT

    1A011263
    Back order
    £2.76
    0
  • 24
    SPECIAL NUT

    SPECIAL NUT

    857496
    Back order
    £10.50
    0
  • 25
    O-RING

    O-RING

    857144
    10 in stock
    £0.55
    0
  • 26
    BEARING

    BEARING

    897436
    1 in stock
    £14.29
    0
  • 27
    BEARING

    BEARING

    897435
    2 in stock
    £10.88
    0
  • 28
    CHECK BEARING PLATE

    CHECK BEARING PLATE

    AP9150145
    1 in stock
    £30.96
    0
  • 29
    COUNTERSUNK-HEAD SCREW M6X16

    COUNTERSUNK-HEAD SCREW M6X16

    1A011248
    Back order
    £3.89
    0
  • 30
    WASHER

    WASHER

    857208
    Back order
    £4.06
    0
  • 31
    LUBRICATING JET

    LUBRICATING JET

    2A000363
    Back order
    £5.47
    0
  • 32
    O-RING 2018

    O-RING 2018

    AP8120965
    13 in stock
    £0.83
    0
  • 33
    RELIEF VALVE

    RELIEF VALVE

    B045126
    Back order
    £18.85
    0
  • 34
    SCREW W/ FLANGE M6X12

    SCREW W/ FLANGE M6X12

    AP8152277
    9 in stock
    £1.49
    0
  • 35
    UNION GASKET

    UNION GASKET

    1A006321
    2 in stock
    £1.27
    0
  • 36
    JOINT

    JOINT

    857126
    Back order
    £22.66
    0
  • 37
    SCREW W/ FLANGE

    SCREW W/ FLANGE

    872117
    Replaced by

    FLANGED HEXAGON SCREW

    874550
    Discontinued
    6 in stock
    N/A
    £3.27
    0
  • 38
    PLUG M16X1,5

    PLUG M16X1,5

    974060
    4 in stock
    £4.15
    0
