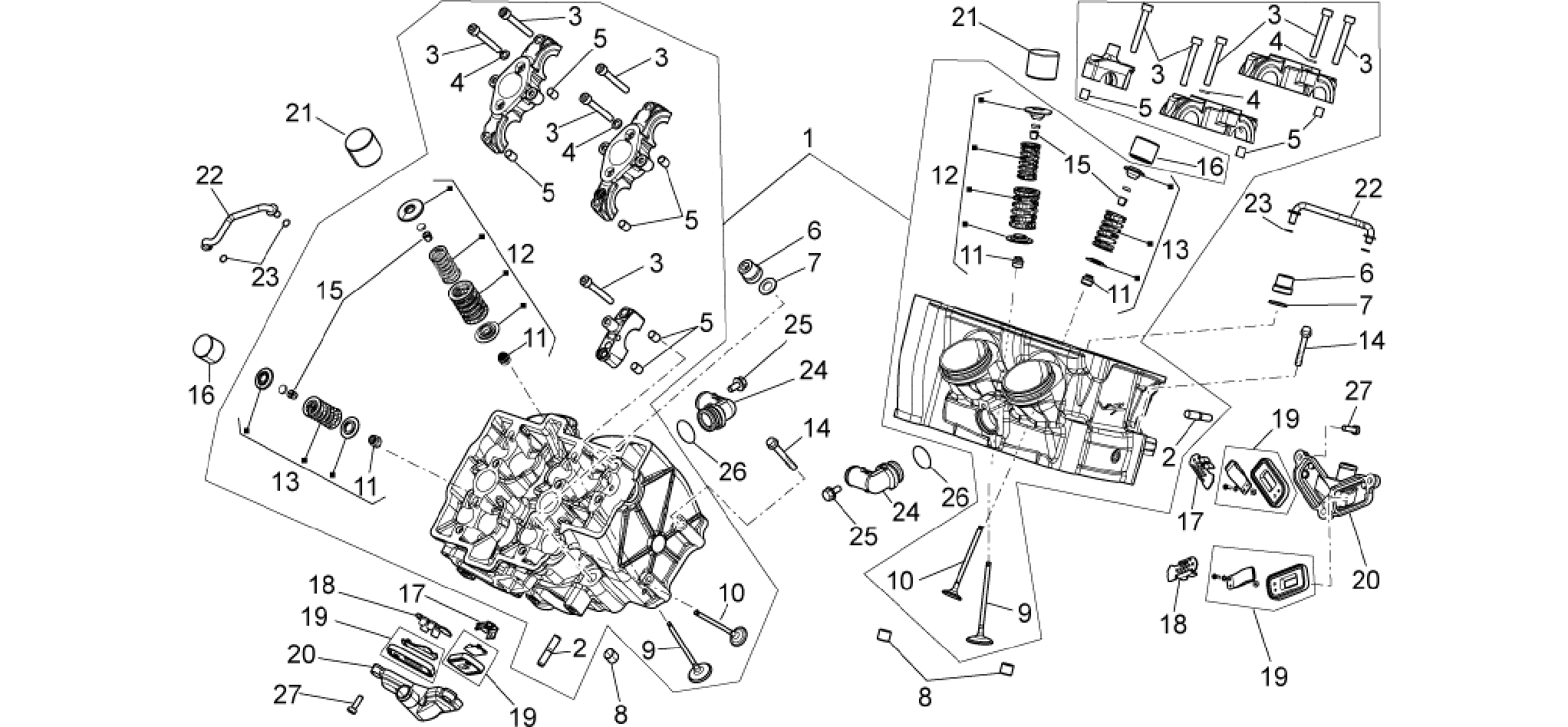

Aprilia Tuono V4 1100 Factory E3 ABS 2016 (NAFTA) Cylinder head - valves

Cylinder head - valves
Skip to results list
Position
Part Name
Stock
Price
  • 1
    CYLINDER HEAD ASSY.

    CYLINDER HEAD ASSY.

    8986822
    Back order
    £1,116.92
    0
  • 2
    STUD BOLT M10X171

    STUD BOLT M10X171

    857035
    17 in stock
    £6.20
    0
  • 3
    HEX SOCKET SCREW M6X45

    HEX SOCKET SCREW M6X45

    857085
    3 in stock
    £6.79
    0
  • 4
    COPPER WASHER

    COPPER WASHER

    857042
    24 in stock
    £0.96
    0
  • 5
    LOCATING DOWEL

    LOCATING DOWEL

    411209
    22 in stock
    £3.58
    0
  • 6
    FLANGED NUT M10X1

    FLANGED NUT M10X1

    897434
    14 in stock
    £10.78
    0
  • 7
    WASHER

    WASHER

    857208
    Back order
    £4.06
    0
  • 8
    LOCATING DOWEL 11,8X10

    LOCATING DOWEL 11,8X10

    825597
    12 in stock
    £1.85
    0
  • 9
    VALVE, IN

    VALVE, IN

    857018
    6 in stock
    £22.60
    0
  • 10
    EXAUST VALVE

    EXAUST VALVE

    2A000546
    2 in stock
    £74.84
    0
  • 11
    VALVE GASKET RING

    VALVE GASKET RING

    436438
    41 in stock
    £8.72
    0
  • 12
    INTAKE VALVE SPRING KIT

    INTAKE VALVE SPRING KIT

    2R000041
    4 in stock
    £30.84
    0
  • 13
    EXHAUST VALVE SPRING KIT

    EXHAUST VALVE SPRING KIT

    2R000042
    Back order
    £22.19
    0
  • 14
    SCREW W/ FLANGE

    SCREW W/ FLANGE

    478895
    20 in stock
    £1.96
    0
  • 15
    VALVE HALF-CONE

    VALVE HALF-CONE

    857024
    18 in stock
    £2.78
    0
  • 16
    VALVE LIFTER BUCKET

    VALVE LIFTER BUCKET

    857067
    15 in stock
    £55.42
    0
  • 17
    SPARK ARRESTER

    SPARK ARRESTER

    857046
    Back order
    £7.73
    0
  • 18
    SPARK ARRESTER

    SPARK ARRESTER

    857047
    4 in stock
    £7.99
    0
  • 19
    REED VALVE

    REED VALVE

    857045
    2 in stock
    £41.85
    0
  • 20
    COVER REED VALVE

    COVER REED VALVE

    857044
    Back order
    £48.01
    0
  • 21
    VALVE LIFTER BUCKET

    VALVE LIFTER BUCKET

    857066
    Back order
    £43.95
    0
  • 22
    OIL SPRAYER PIPE

    OIL SPRAYER PIPE

    857017
    1 in stock
    £44.13
    0
  • 23
    O-RING

    O-RING

    873097
    8 in stock
    £6.20
    0
  • 24
    ANGULAR UNION

    ANGULAR UNION

    857016
    Replaced by

    ANGULAR UNION

    8570164
    1 in stock
    1 in stock
    £12.25
    £12.25
    0
    0
  • 25
    FLANGED HEXAGON SCREW

    FLANGED HEXAGON SCREW

    1A003153
    Back order
    £0.50
    0
  • 26
    O-RING

    O-RING

    857083
    4 in stock
    £1.74
    0
  • 27
    SCREW M5X16

    SCREW M5X16

    857048
    9 in stock
    £1.96
    0
