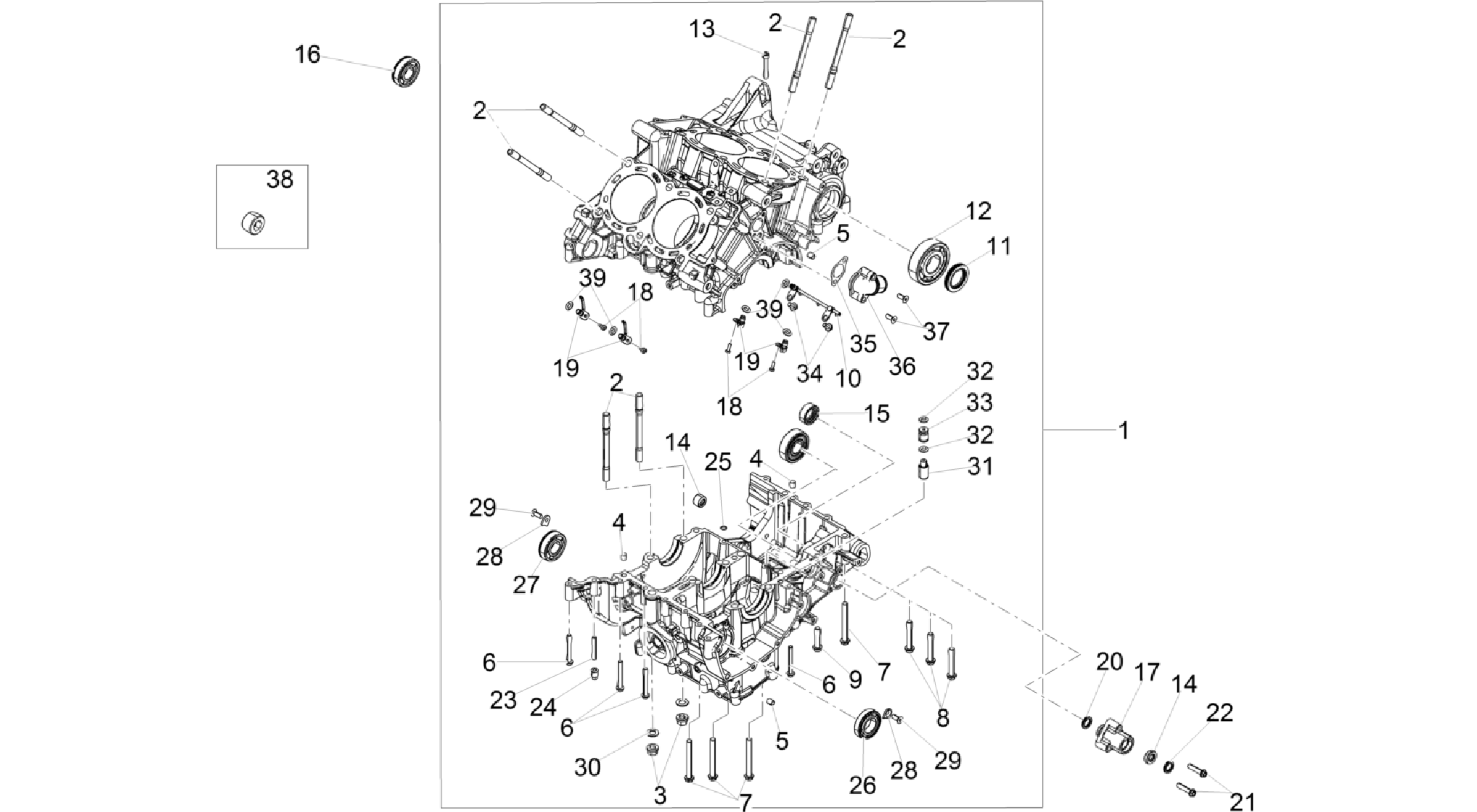

Aprilia Tuono V4 1100 Factory E3 ABS 2016 (NAFTA) Crank-case I

Crank-case I
Skip to results list
Position
Part Name
Stock
Price
  • 1
    CARTER, PAIR

    CARTER, PAIR

    2A0005845
    Back order
    £1,899.38
    0
  • 2
    STUD BOLT M10X126

    STUD BOLT M10X126

    857087
    32 in stock
    £11.16
    0
  • 3
    FLANGED NUT M10X1

    FLANGED NUT M10X1

    897434
    14 in stock
    £10.78
    0
  • 4
    LOCATING DOWEL M8X12

    LOCATING DOWEL M8X12

    857427
    4 in stock
    £1.77
    0
  • 5
    LOCATING DOWEL

    LOCATING DOWEL

    411209
    22 in stock
    £3.58
    0
  • 6
    SCREW W/ FLANGE M6X50

    SCREW W/ FLANGE M6X50

    AP9100433
    more info + more info -
    Technical Specification: For engines from V4-G 1000 to V4- G 1339[RM]
    12 in stock
    £1.82
    0
  • 7
    SCREW W/ FLANGE

    SCREW W/ FLANGE

    AP8152294
    104 in stock
    £1.49
    0
  • 8
    SCREW W/ FLANGE M8X40

    SCREW W/ FLANGE M8X40

    AP8152290
    more info + more info -
    Technical Specification: For engines from V4-G 1000 to V4- G 1339[RM]
    46 in stock
    £2.08
    0
  • 8
    SCREW W/ FLANGE

    SCREW W/ FLANGE

    AP8152292
    64 in stock
    £1.53
    0
  • 9
    SCREW W/ FLANGE

    SCREW W/ FLANGE

    AP8152289
    15 in stock
    £3.77
    0
  • 10
    LUBRICATION PIPE

    LUBRICATION PIPE

    2A000569
    1 in stock
    £48.60
    0
  • 11
    GASKET RING 30X47X7

    GASKET RING 30X47X7

    857128
    3 in stock
    £28.63
    0
  • 12
    BALL BEARING 30X72X19

    BALL BEARING 30X72X19

    898633
    1 in stock
    £20.34
    0
  • 13
    HEX SOCKET SCREW M6X30

    HEX SOCKET SCREW M6X30

    AP8150220
    more info + more info -
    Technical Specification: For engines from V4-G 1000 to V4- G 1339[RM]
    144 in stock
    £0.70
    0
  • 13
    HEX SOCKET SCREW M6X40

    HEX SOCKET SCREW M6X40

    AP8152003
    5 in stock
    £4.96
    0
  • 14
    12X8X12 ROLLER BEARING

    12X8X12 ROLLER BEARING

    B045224
    2 in stock
    £5.92
    0
  • 15
    ROLLER CAGE HK1512

    ROLLER CAGE HK1512

    857249
    4 in stock
    £22.27
    0
  • 16
    BALL BEARING 20X52X15

    BALL BEARING 20X52X15

    898635
    4 in stock
    £11.56
    0
  • 17
    MAINTENANCE

    MAINTENANCE

    857090
    Back order
    £83.34
    0
  • 18
    SCREW TB 4X12 TORX

    SCREW TB 4X12 TORX

    B046202
    Back order
    £0.45
    0
  • 19
    PISTON COOLING JET

    PISTON COOLING JET

    2A000293
    Back order
    £26.67
    0
  • 20
    GASKET RING 17,12X2,62

    GASKET RING 17,12X2,62

    857109
    2 in stock
    £4.06
    0
  • 21
    HEX SOCKET SCREW M6X35

    HEX SOCKET SCREW M6X35

    AP8150285
    93 in stock
    £1.56
    0
  • 22
    GASKET RING 12X22

    GASKET RING 12X22

    857127
    Replaced by

    OIL SEAL 12X22

    1A017552
    Discontinued
    5 in stock
    N/A
    £25.08
    0
  • 23
    STUD BOLT

    STUD BOLT

    857495
    more info + more info -
    Technical Specification: For engines from V4-G 1000 to V4- G 1339[RM]
    Back order
    £10.50
    0
  • 23
    STUD BOLT

    STUD BOLT

    2A000295
    Back order
    £4.34
    0
  • 24
    SPECIAL NUT

    SPECIAL NUT

    857496
    Back order
    £10.50
    0
  • 25
    O-RING

    O-RING

    857144
    10 in stock
    £0.55
    0
  • 26
    BEARING

    BEARING

    897436
    1 in stock
    £14.29
    0
  • 27
    BEARING

    BEARING

    897435
    2 in stock
    £10.88
    0
  • 28
    CHECK BEARING PLATE

    CHECK BEARING PLATE

    AP9150145
    1 in stock
    £30.96
    0
  • 29
    SCREW M6X16

    SCREW M6X16

    AP8152166
    12 in stock
    £3.17
    0
  • 30
    WASHER

    WASHER

    857208
    Back order
    £4.06
    0
  • 31
    LUBRICATING JET

    LUBRICATING JET

    2A000363
    Back order
    £5.47
    0
  • 32
    O-RING 2018

    O-RING 2018

    AP8120965
    13 in stock
    £0.83
    0
  • 33
    RELIEF VALVE

    RELIEF VALVE

    B045126
    Back order
    £18.85
    0
  • 34
    SCREW W/ FLANGE

    SCREW W/ FLANGE

    1A003114
    Back order
    £17.34
    0
  • 35
    JOINT

    JOINT

    857126
    Back order
    £22.66
    0
  • 36
    GASKET

    GASKET

    857125
    4 in stock
    £3.50
    0
  • 37
    FLANGED HEXAGON SCREW

    FLANGED HEXAGON SCREW

    874550
    6 in stock
    £3.27
    0
  • 38
    PLUG M16X1,5

    PLUG M16X1,5

    974060
    4 in stock
    £4.15
    0
  • 39
    O-RING 6X1

    O-RING 6X1

    GU90706009
    11 in stock
    £1.85
    0
