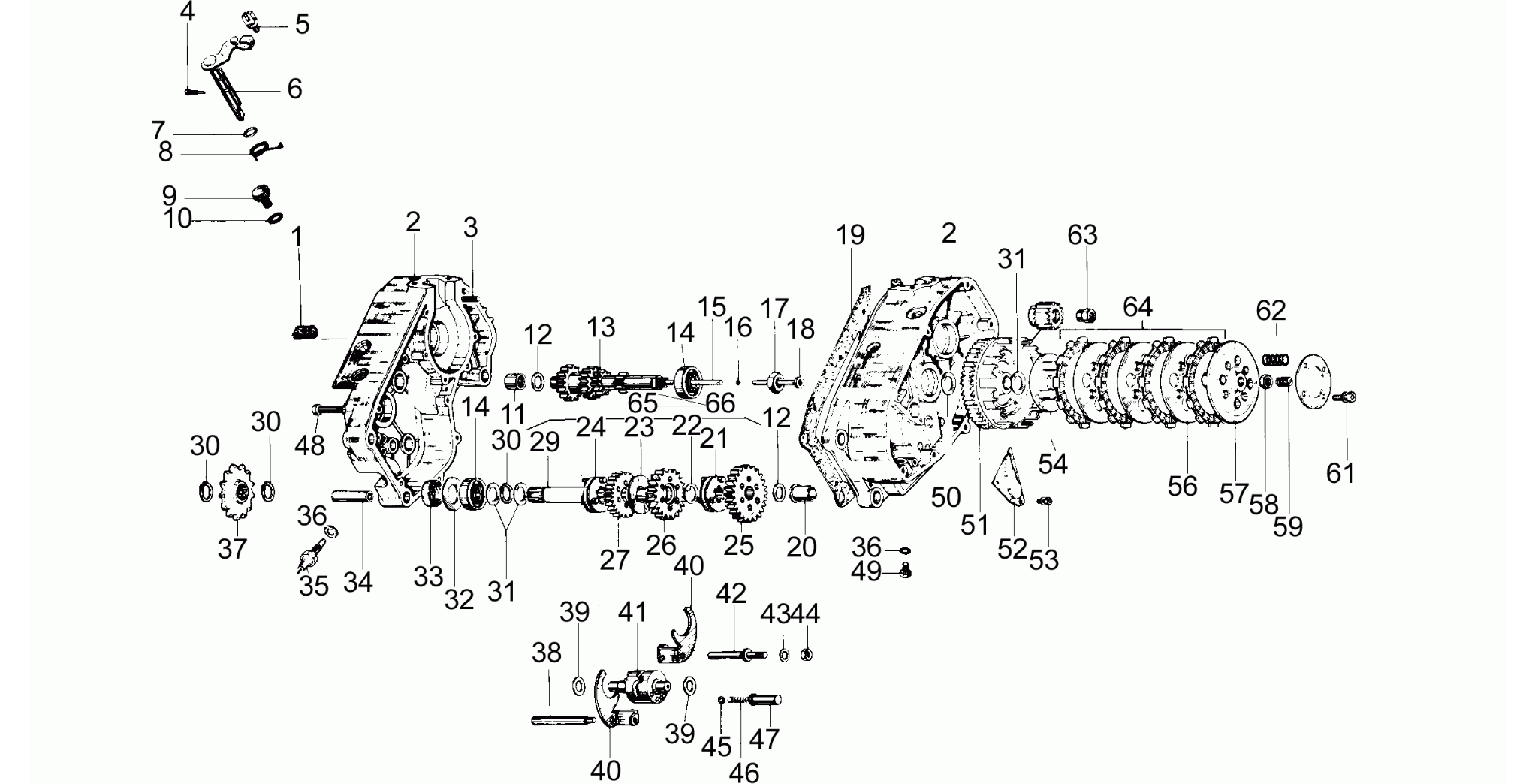

Aprilia TUAREG RALLY 50 1990-1992 Crank-case

Position

Part Name

Stock

Price

1

RUBBER SPACER

AP8501853

Back order
£6.12

0
2

CRANKCASE ASSY

AP8509927

Back order
£168.30

0
3

SCREW M6X30

AP8502566

4 in stock
£1.19

0
4

SPECIAL CAP SCREW M4

AP8502537

Back order
£6.12

0
5

GEAR CPL.

AP8502999

Back order
£4.63

0
6

CLUTCH LEVER

AP8509194

1 in stock
£12.88

0
7

O-RING D7,65X1,78

AP8502655

145 in stock
£1.12

0
8

SPRING

AP8502358

8 in stock
£2.25

0
9

OIL FILLER PLUG

AP8501876

2 in stock
£1.90

0
10

PLUG GASKET

AP8502713

Back order
£0.10

0
11

ROLLER CAGE

AP8502608

2 in stock
£6.41

0
12

BLUE STEEL WASHER D13,2X20

AP8222337

14 in stock
£2.40

0
13

PRIMARY GEAR SHAFT

AP8509900

Back order
£150.20

0
14

BEARING D15X35X11 0 TECHNICAL SPECIFICATIONS:

AP8502624

Back order
£9.02

0
15

PUSH ROD D.5X79

AP8502794

Back order
£3.62

0
16

BALL 3/16"

AP8502652

4 in stock
£2.41

0
17

NUT M11X1 (H=7,5)

AP8502435

Back order
£2.68

0
18

CLUTCH PUSH ROD D13

AP8502836

Discontinued
N/A
19

GASKET

AP8502687

Back order
£5.39

0
20

BUSH

AP8502613

1 in stock
£3.76

0
21

SLIDING COUPLING 1-2 SPD.

AP8502253

Back order
£21.18

0
22

OUTSIDE CIRCLIP D18

AP8501471

8 in stock
£2.06

0
23

BLUE STEEL WASHER D18X30

AP8502500

1 in stock
£0.35

0
24

SLIDING COUPLING 3-4 SPD.

AP8502257

Back order
£21.18

0
25

1ST WHEEL GEAR

AP8502161

Back order
£25.87

0
26

2ND WHEEL GEAR

AP8509880

Back order
£26.33

0
27

3RD WHEEL GEAR

AP8509881

Back order
£25.93

0
29

DRIVEN SHAFT

AP8509879

Back order
£56.70

0
30

OUTSIDE CIRCLIP D15

AP8501469

38 in stock
£2.44

0
31

WASHER D.15

AP8502494

2 in stock
£4.01

0
32

WASHER D.22

AP8502522

Back order
£6.89

0
33

OIL SEAL D12X22X7

AP8509180

8 in stock
£6.38

0
34

LOCATING DOWEL

AP8502810

Back order
£5.39

0
35

NEUTRAL INDICATOR SWITCH

AP8507439

4 in stock
£29.41

0
36

OIL PLUG SEAL D8X14

AP8502759

63 in stock
£1.62

0
37

PINION

AP8207035

2 in stock
£17.03

0
37

PINION Z=14

AP8207034

Back order
£15.32

0
37

PINION Z=13

AP8207033

4 in stock
£16.77

0
37

PINION Z=12

AP8207032

Back order
£16.08

0
37

PINION Z=11

AP8207031

4 in stock
£16.40

0
37

PINION Z=10

AP8207030

Back order
£17.03

0
38

PIN

AP8502823

Back order
£5.42

0
39

WASHER D.10

AP8502486
Replaced by

BLUE STEEL WASHER D10X16

AP8206269

Discontinued

Discontinued
N/A

N/A
40

FORK

AP8501969

Back order
£16.01

0
41

SHIFT CAM

AP8509883

Back order
£57.20

0
42

PIN

AP8502819

Back order
£6.89

0
43

INT. NOTCHED WASHER D7

AP8502473

4 in stock
£1.85

0
44

NUT M7X5,5

AP8502414

35 in stock
£2.03

0
45

BALL

AP8502653

4 in stock
£5.39

0
46

SPRING

AP8502343

1 in stock
£7.57

0
47

PIN RETAINER

AP8502806

1 in stock
£5.39

0
48

SCREW M6X50

AP8502570

Back order
£6.89

0
49

OIL DRAIN HEX SCREW M8X10

AP8502586

40 in stock
£1.49

0
50

COPPER WASHER

AP8508556

1 in stock
£5.39

0
51

CLUTCH HOUSING, COMPLETE Z=16/61

AP8508572

Back order
£140.30

0
52

PLATE

AP8501923

Back order
£4.97

0
53

SCREW WITH WASHER M4X10 0

AP8502559

Discontinued
N/A
54

SPRINGHOLDER PLATE

AP8508543

Back order
£21.40

0
56

METALLIC CLUTCH DISC

AP8508544

2 in stock
£5.39

0
57

SPRINGHOLDER PLATE

AP8508545

Back order
£13.89

0
58

NUT M14X1,25X6

AP8502432

36 in stock
£2.96

0
59

ADJUSTER SCREW M14X1,25

AP8502533

8 in stock
£5.82

0
61

SCREW

AP8508554

Back order
£6.89

0
62

CLUTCH SPRING 4 DISK

AP8502328

29 in stock
£2.64

0
63

NUT M9X1

AP8502419

Back order
£2.68

0
64

CLUTCH DISKS

AP8222187

Back order
£85.87

0
65

SECONDARY SHAFT CPL.

AP8509901

Back order
£214.12

0
66

GEAR BOX ASSY

AP8509882

more info + more info -

speeds

Back order
£253.94

0
