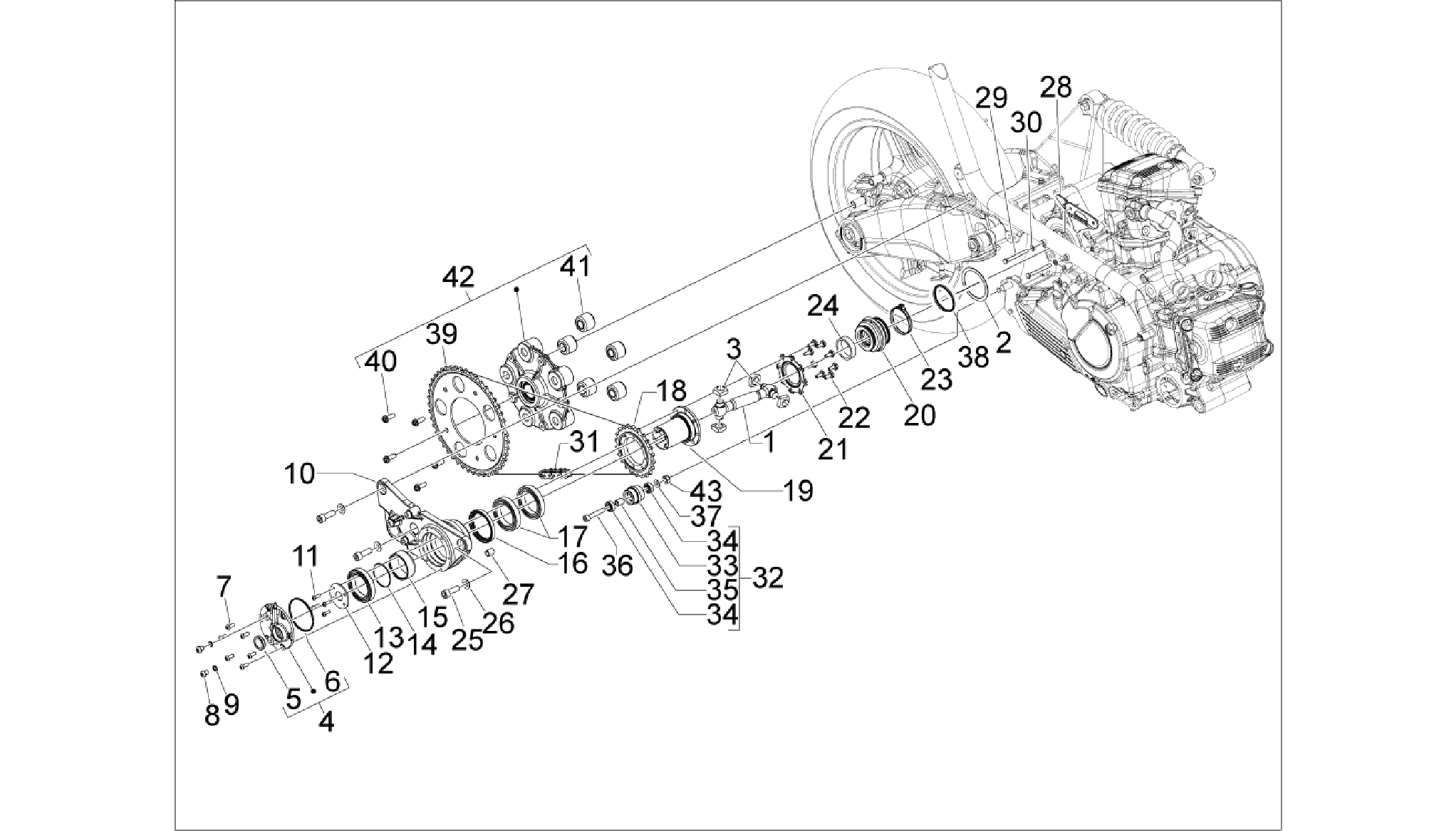

Aprilia SRV 850 4T 8V E3 ABS-NOABS 2012-2014 (EMEA) Transmission assembly

Position

Part Name

Stock

Price

1

COMPLETE CARDING AXLE

876490

Back order
£209.67

0
2

FLAT WASHER

874981

Back order
£8.11

0
3

SLIDING BLOCK

8753764

Back order
£0.00

0
4

JOINT COVER

601550

Back order
£41.35

0
5

OIL LEVEL INDICATOR

485693

1 in stock
£12.66

0
6

GASKET RING

601552

Back order
£5.63

0
7

HEX SOCKET SCREW

873433

Back order
£1.04

0
8

SCREW M8X10

846609

Back order
£1.00

0
9

WASHER 8.2X12X1

485703

48 in stock
£0.81

0
10

CARDING SUPPORT WITH I.P.

649415

Back order
£311.81

0
11

HEX SOCKET SCREW

650901

Back order
£0.97

0
12

WASHER

650084

Back order
£14.57

0
13

RADIAL BEARING

82925R

Back order
£31.90

0
14

GASKET

846607

1 in stock
£6.92

0
15

SPACER

649427

Back order
£58.96

0
16

GASKET RING 58-72-8

846606

1 in stock
£25.16

0
17

RADIAL BEARING 50X72X12

82924R

Back order
£92.85

0
18

PINION 5/8" X 5/16"

649484

Back order
£99.25

0
19

BUSHING

876014

Back order
£239.83

0
20

COMPLETE OIL SEAL HOOD

649928

Back order
£52.69

0
21

HOOD FIXING RING

649474

Back order
£34.48

0
22

HEX SCREW M6X16

847421

Back order
£3.54

0
23

HOSE CLAMP M4

650153

Back order
£15.03

0
24

RING

650132

Back order
£18.87

0
25

SPECIAL CAP SCREW

564632

Back order
£0.97

0
26

WASHER

006970

Back order
£1.23

0
27

CALIBRATED DOWEL 11,8X10

825597

12 in stock
£1.85

0
28

PINION PROTECTION

649826

Back order
£24.47

0
29

SCREW

030062

Back order
£2.12

0
30

SPRING WASHER 12X6,4X0,5

006976

Back order
£1.26

0
31

CHAIN 137/525

649481

Back order
£147.74

0
32

CHAIN TENSIONER ROLLER

649823

Back order
£8.07

0
33

BLACK CHAIN GUIDE ROLLER

AP8161074

Back order
£10.50

0
34

BEARING

AP8110117

Back order
£7.00

0
35

SPACER

AP8161076

Back order
£4.06

0
36

COUNTERSUNK CYLINDRICAL HEX HEAD SCREW

826298

3 in stock
£0.95

0
37

WASHER

316144

Back order
£0.70

0
38

SNAP RING

650103

Back order
£24.49

0
39

CHAIN RING 5/16

651095

Back order
£181.21

0
40

SCREW W/ FLANGE

651295

Back order
£0.97

0
41

SPRING DRIVE RUBBER

650743

12 in stock
£20.54

0
42

COMPLETE FLEXIBLE COUPLING UNIT

650745
Replaced by

COMPLETE SPRING DRIVE

6507455

Discontinued

Back order
N/A

£536.81

0
43

SELF LOCKING NUT M8

195483
Replaced by

NUT M8

020008

Discontinued

36 in stock
N/A

£1.28

0
