Aprilia SRV 850 4T 8V E3 ABS-NOABS 2012-2014 (EMEA) Crankcase

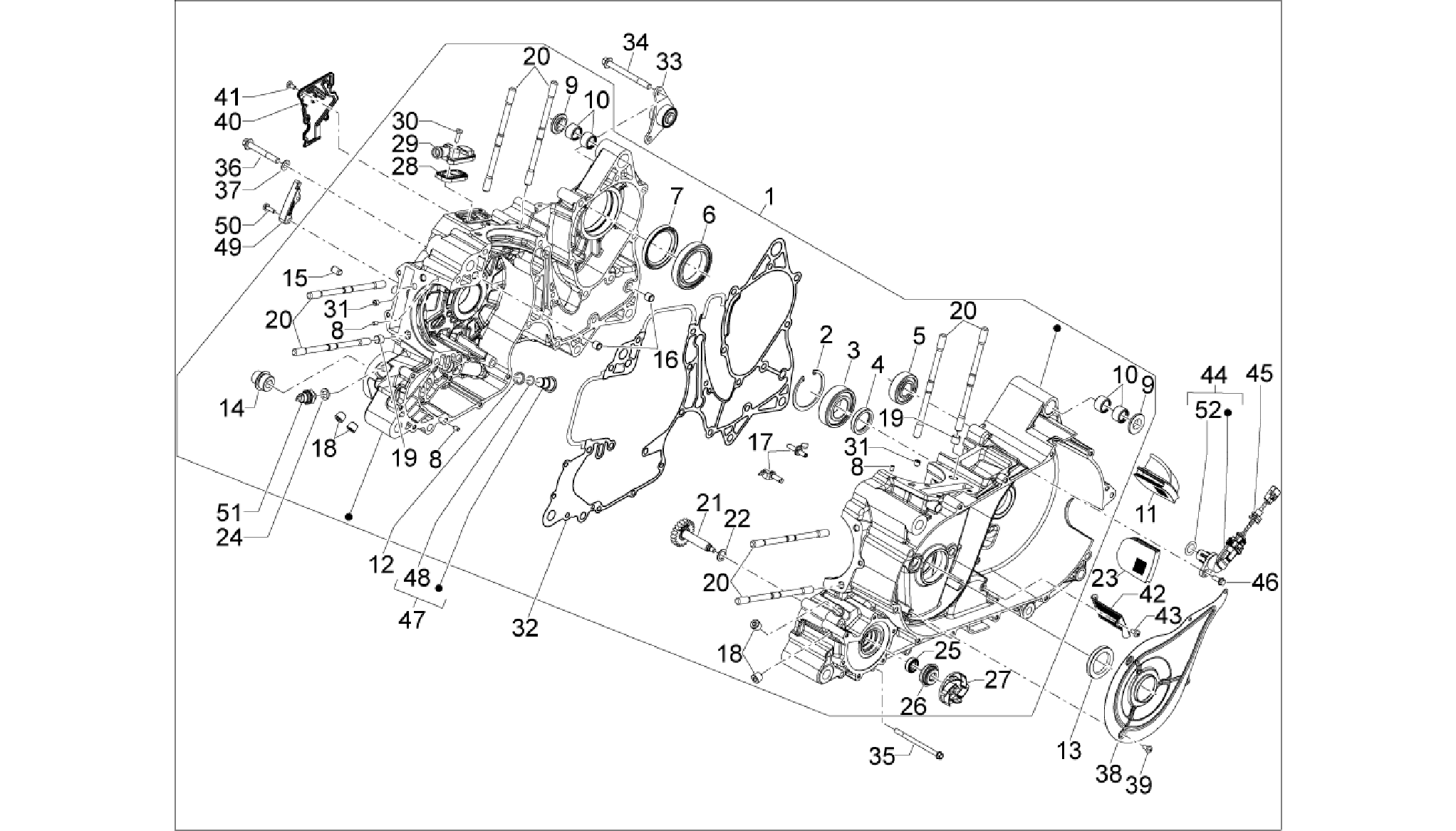

Crankcase
Skip to results list
Position
Part Name
Stock
Price
  • 1
    2ND CAT. COMPLETE CRANKCASE

    2ND CAT. COMPLETE CRANKCASE

    B0173160002
    Back order
    £2,509.20
    0
  • 1
    COMPLETE CRANKCASE 1ST CAT.

    COMPLETE CRANKCASE 1ST CAT.

    B0173160001
    Back order
    £2,509.20
    0
  • 2
    SNAP RING

    SNAP RING

    006662
    8 in stock
    £1.55
    0
  • 3
    BEARING

    BEARING

    82926R
    Back order
    £23.91
    0
  • 4
    GASKET RING

    GASKET RING

    825023
    1 in stock
    £20.36
    0
  • 5
    RADIAL BALL BEARING 20X47X14

    RADIAL BALL BEARING 20X47X14

    833701
    1 in stock
    £20.58
    0
  • 6
    RADIAL BEARING 50X72X12

    RADIAL BEARING 50X72X12

    845439
    Replaced by

    RADIAL BEARING

    82925R
    Discontinued
    Back order
    N/A
    £31.90
    0
  • 7
    GASKET RING 50-68

    GASKET RING 50-68

    845443
    Back order
    £24.61
    0
  • 8
    LOCATING DOWEL

    LOCATING DOWEL

    484993
    Back order
    £0.92
    0
  • 9
    BUSH

    BUSH

    623857
    Back order
    £1.89
    0
  • 10
    ROLLER CAGE

    ROLLER CAGE

    845684
    Back order
    £8.03
    0
  • 11
    FUEL BAFFLE

    FUEL BAFFLE

    875442
    Back order
    £13.19
    0
  • 12
    GASKET

    GASKET

    831393
    29 in stock
    £0.56
    0
  • 13
    GASKET RING 35X50X7

    GASKET RING 35X50X7

    832987
    13 in stock
    £12.03
    0
  • 14
    OIL FILTER UNION

    OIL FILTER UNION

    832985
    1 in stock
    £18.69
    0
  • 15
    PIN 6,5X9,5X15

    PIN 6,5X9,5X15

    239388
    46 in stock
    £1.08
    0
  • 16
    LOCATING DOWEL Ø11X10

    LOCATING DOWEL Ø11X10

    478115
    19 in stock
    £0.84
    0
  • 17
    NOZZLE

    NOZZLE

    830666
    Back order
    £37.69
    0
  • 18
    PLUG M12X1,5

    PLUG M12X1,5

    411311
    12 in stock
    £1.20
    0
  • 19
    CALIBRATED DOWEL 11,8X10

    CALIBRATED DOWEL 11,8X10

    825597
    12 in stock
    £1.85
    0
  • 20
    STUD BOLT M10X1.25X166

    STUD BOLT M10X1.25X166

    877281
    1 in stock
    £7.88
    0
  • 21
    WATER PUMP SHAFT ASSY.

    WATER PUMP SHAFT ASSY.

    872025
    Back order
    £124.01
    0
  • 22
    SHIM WASHER

    SHIM WASHER

    974290
    7 in stock
    £1.00
    0
  • 23
    AIR DEFLECTOR

    AIR DEFLECTOR

    874451
    Back order
    £29.10
    0
  • 24
    WASHER 10,5X17X1,5

    WASHER 10,5X17X1,5

    AP9150472
    6 in stock
    £1.66
    0
  • 25
    GASKET RING

    GASKET RING

    873934
    2 in stock
    £8.34
    0
  • 26
    OIL SEAL

    OIL SEAL

    82991R
    4 in stock
    £21.45
    0
  • 27
    IMPELLER

    IMPELLER

    833054
    2 in stock
    £28.90
    0
  • 28
    REED VALVE SUPPORT

    REED VALVE SUPPORT

    82778R
    Back order
    £30.14
    0
  • 29
    COVER SAS

    COVER SAS

    827209
    1 in stock
    £16.86
    0
  • 30
    SCREW

    SCREW

    873102
    Back order
    £1.00
    0
  • 31
    NOZZLE

    NOZZLE

    825649
    Back order
    £2.38
    0
  • 32
    HALF CRANKCASE GASKET MM 0,3

    HALF CRANKCASE GASKET MM 0,3

    872625
    10 in stock
    £30.19
    0
  • 33
    EXHAUST PIPE SUPPORT CLAMP

    EXHAUST PIPE SUPPORT CLAMP

    875518
    Back order
    £40.67
    0
  • 34
    SCREW W/ FLANGE M6X90

    SCREW W/ FLANGE M6X90

    874746
    Back order
    £1.27
    0
  • 35
    FLANGED HEXAGON SCREW M8X60

    FLANGED HEXAGON SCREW M8X60

    874747
    20 in stock
    £1.95
    0
  • 36
    SCREW W/ FLANGE M8X85

    SCREW W/ FLANGE M8X85

    874748
    9 in stock
    £2.47
    0
  • 37
    WASHER

    WASHER

    106009
    Replaced by

    WASHER 8.2X12X1

    485703
    Discontinued
    48 in stock
    N/A
    £0.81
    0
  • 38
    AIR DEFLECTOR

    AIR DEFLECTOR

    832981
    1 in stock
    £14.25
    0
  • 39
    SCREW M5X10

    SCREW M5X10

    018575
    145 in stock
    £0.57
    0
  • 40
    PLATE

    PLATE

    843317
    Back order
    £10.71
    0
  • 42
    GRID

    GRID

    834345
    Back order
    £8.47
    0
  • 44
    PHASE/REVOLUTION SENSOR

    PHASE/REVOLUTION SENSOR

    832963
    Replaced by

    Phase sensor

    8329635
    Discontinued
    1 in stock
    N/A
    £53.87
    0
  • 45
    JOINT.P.

    JOINT.P.

    643331
    Back order
    £42.77
    0
  • 45
    JOINT.P.

    JOINT.P.

    584838
    Back order
    £30.60
    0
  • 46
    SCREW W/ FLANGE M6X16

    SCREW W/ FLANGE M6X16

    434541
    20 in stock
    £1.42
    0
  • 47
    OIL UNLOAD PLUG

    OIL UNLOAD PLUG

    82929R
    Replaced by

    OIL DRAIN PLUG COMPLETE

    B015860
    Discontinued
    2 in stock
    N/A
    £11.03
    0
  • 48
    O-RING

    O-RING

    843186
    58 in stock
    £1.00
    0
  • 49
    CHAIN GUIDE PLATE

    CHAIN GUIDE PLATE

    831335
    Back order
    £1.04
    0
  • 51
    OIL PRESSURE SENSOR

    OIL PRESSURE SENSOR

    641541
    Replaced by

    MINIMUM OIL PRESSURE SENSOR

    1A024308R
    Discontinued
    5 in stock
    N/A
    £14.10
    0
  • 52
    O-RING

    O-RING

    430044
    9 in stock
    £0.82
    0
