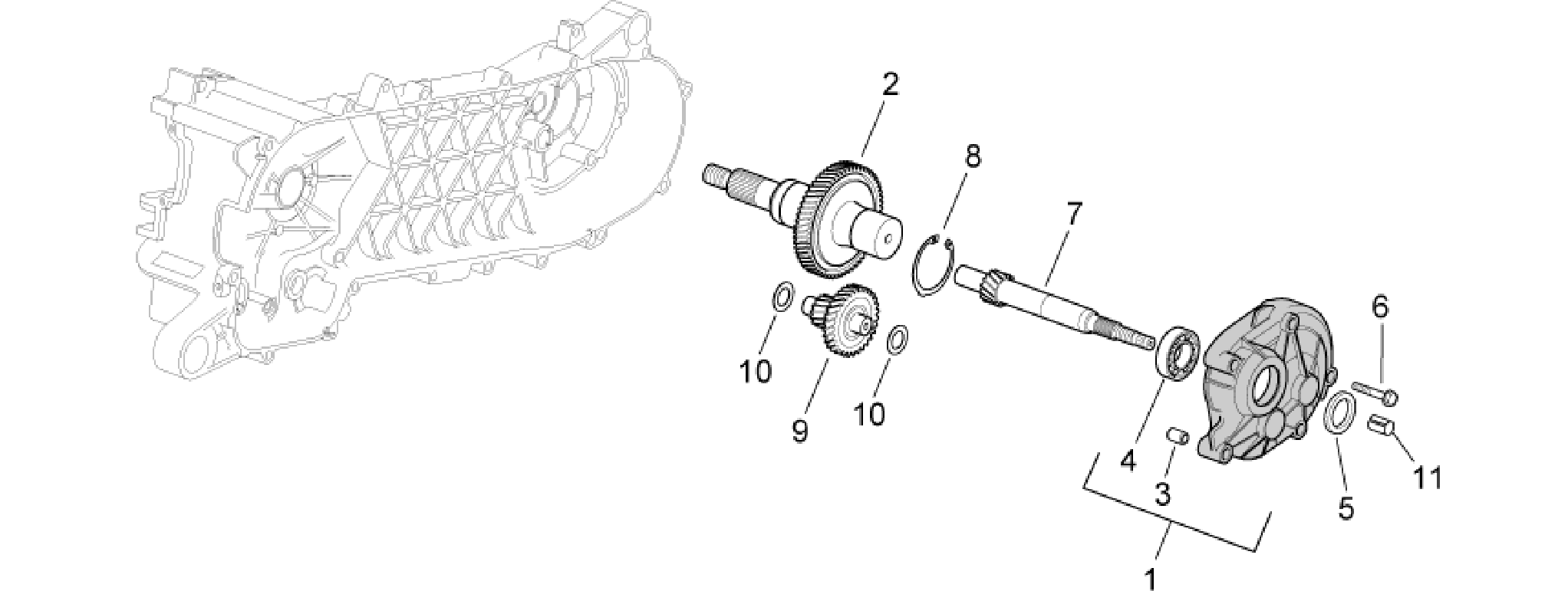

Aprilia SR 50 H2O IE+Carb. 2003-2012 (APAC, EMEA) Transmission final drive

Transmission final drive
Skip to results list
Position
Part Name
Stock
Price
  • 1
    TRANSMISSION COVER CPL.

    TRANSMISSION COVER CPL.

    AP8515064
    Replaced by

    WHEEL HUB COVER WITH U.P.

    4874805
    1 in stock
    Back order
    £83.43
    £83.43
    0
    0
  • 2
    DRIVE SHAFT ASSY

    DRIVE SHAFT ASSY

    AP8515115
    more info + more info -
    Technical Specification: Carburetor Version (C364M)[carb]
    Replaced by

    DRIVE SHAFT ASSY 1

    4874845
    Discontinued
    Back order
    N/A
    £146.85
    0
  • 2
    DRIVE SHAFT ASSY

    DRIVE SHAFT ASSY

    AP8515067
    more info + more info -
    Technical Specification: Injection Version (C361M)[ie]
    Replaced by

    DRIVE SHAFT ASSY 1

    4874845
    Discontinued
    Back order
    N/A
    £146.85
    0
  • 3
    PIN D.9,5 H=15

    PIN D.9,5 H=15

    AP8550107
    Replaced by

    PIN 6,5X9,5X15

    239388
    46 in stock
    46 in stock
    £1.08
    £1.08
    0
    0
  • 4
    BALL BEARING 40X17X12

    BALL BEARING 40X17X12

    AP8223019
    Replaced by

    BEARING

    435363
    Discontinued
    9 in stock
    N/A
    £9.16
    0
  • 5
    OIL SEAL

    OIL SEAL

    AP8551035
    Replaced by

    GASKET RING

    480066
    7 in stock
    19 in stock
    £8.64
    £8.64
    0
    0
  • 6
    SCREW M6X40

    SCREW M6X40

    AP8515066
    Replaced by

    SCREW W/ FLANGE M6X40

    414834
    Discontinued
    13 in stock
    N/A
    £0.70
    0
  • 7
    DRIVE SHAFT Z=13

    DRIVE SHAFT Z=13

    AP8515069
    Replaced by

    DRIVEN PULLEY SHAFT

    4795935
    Discontinued
    Back order
    N/A
    £82.03
    0
  • 8
    CIRCLIP

    CIRCLIP

    AP8551039
    Replaced by

    SNAP RING

    480953
    Discontinued
    54 in stock
    N/A
    £2.39
    0
  • 9
    IDLE GEAR ASSY

    IDLE GEAR ASSY

    AP8515114
    more info + more info -
    Technical Specification: Carburetor Version
    Replaced by

    IDLE GEAR ASSY

    4802185
    1 in stock
    3 in stock
    £161.23
    £161.23
    0
    0
  • 9
    IDLE GEAR ASSY

    IDLE GEAR ASSY

    AP8515065
    more info + more info -
    Technical Specification: Injection Version (C361M)[ie]
    Replaced by

    IDLE GEAR ASSY

    4802185
    Discontinued
    3 in stock
    N/A
    £161.23
    0
  • 10
    THRUST WASHER

    THRUST WASHER

    AP8550470
    Replaced by

    SHIM WASHER

    288639
    13 in stock
    152 in stock
    £0.68
    £0.68
    0
    0
  • 11
    COMPENSATOR RING

    COMPENSATOR RING

    AP8551031
    Replaced by

    COMPENSATOR RING

    478197
    Discontinued
    3 in stock
    N/A
    £3.54
    0
