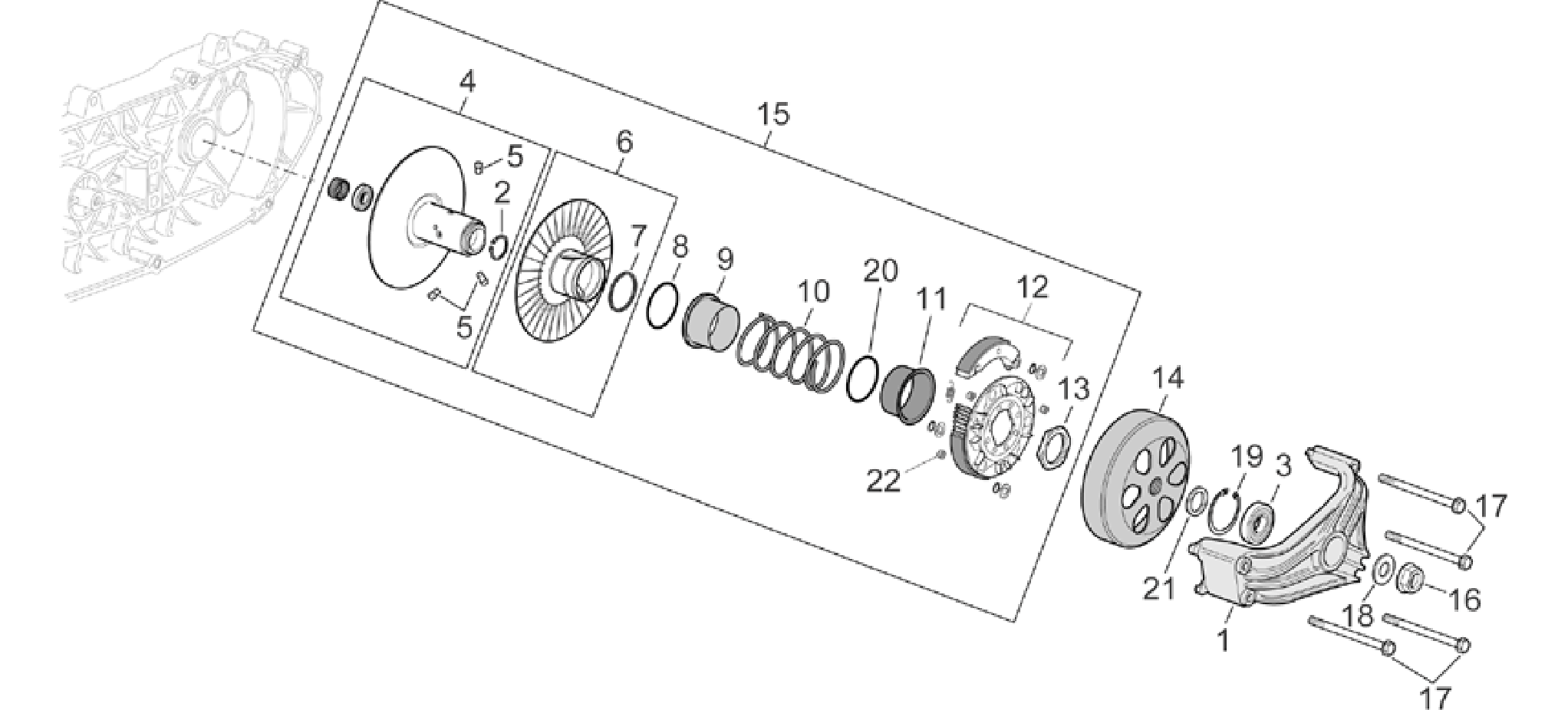

Scarabeo Scarabeo 500 2003-2006 Pulley assy., driven

Position

Part Name

Stock

Price

1

SEC. SHEAVE SUPPORT

AP8560187
Replaced by

BRACKET PULLEY

8327415

Discontinued

Back order
N/A

£153.18

0
2

CIRCLIP

AP8560033
Replaced by

CIRCLIP

825382

Discontinued

Back order
N/A

£3.81

0
3

BEARING D17X40X12

AP8560028
Replaced by

RADICAL BEARING 17X40X1

825234

Discontinued

Back order
N/A

£6.76

0
4

SEC. FIXED SHEAVE, COMPLETE

AP8560196
Replaced by

SEC. SLIDING SHEAVE, COMPLETE

846696

Discontinued

Back order
N/A

£287.40

0
5

GUIDE PIN

AP8560109
Replaced by

PIN FOR REAR PULLEY SHA

828978

Discontinued

Back order
N/A

£2.05

0
6

SEC. SLIDING SHEAVE, COMPLETE

AP8560197
Replaced by

SEC. SLIDING SHEAVE, COMPLETE

846696

Discontinued

Back order
N/A

£287.40

0
7

OIL SEAL 50X57X5

AP8560031
Replaced by

OIL SEAL FOR REAR PULLEY

825239

4 in stock

12 in stock
£6.64

£6.64

0

0
8

O-RING

AP8560111
Replaced by

O-RING

828984

4 in stock

Back order
£2.60

£2.60

0

0
9

SPRING SEAT

AP8560108
Replaced by

STOP WASHER FOR REAR PULLEY

828974

Discontinued

Back order
N/A

£10.65

0
10

SPRING

AP8560177
Replaced by

SPRING

831098

Discontinued

Back order
N/A

£30.55

0
11

SPRING SEAT

AP8560034
Replaced by

CUP FOR REAR PULLEY SPRING

825384

Discontinued

Back order
N/A

£4.21

0
12

CENTRIFUGAL CLUTCH ASSY 5M

AP8560246
Replaced by

CENTRIFUGAL CLUTCH ASSY 5M

8405775

Discontinued

Back order
N/A

£130.85

0
13

NUT

AP8560035
Replaced by

RING NUT 44X1

825385

1 in stock

Back order
£11.03

£11.03

0

0
14

CLUTCH HOUSING, COMPLETE

AP8560026
Replaced by

COMPLETE CLUTCH DRUM

825176

1 in stock

Back order
£49.41

£49.41

0

0
15

SECONDARY PULLEY

AP8560245
Replaced by

SEC. SLIDING SHEAVE, COMPLETE

846696

Discontinued

Back order
N/A

£287.40

0
16

NUT M14X1,5

AP8560063
Replaced by

NUT M14X1,5

827116

8 in stock

9 in stock
£1.67

£1.67

0

0
17

SCREW W/ FLANGE

AP8560097
Replaced by

HEXAGONAL-HEAD SCREW M8X90

828566

Discontinued

14 in stock
N/A

£1.29

0
18

PLAIN WASHER

AP8560043
Replaced by

FLAT WASHER 14.1X30X3

825725

Discontinued

2 in stock
N/A

£2.70

0
19

CIRCLIP

AP8560040
Replaced by

CIRCLIP

825667

Discontinued

59 in stock
N/A

£0.68

0
20

O-RING

AP8560029
Replaced by

O-RING

825237

1 in stock

1 in stock
£1.98

£1.98

0

0
21

SPACER 26X17X3

AP8560046

Back order
£4.06

0
22

DAMPER DRIFT

AP8176091

more info + more info -

Technical Specification: Clutch with three

Replaced by

DAMPER DRIFT

844621

Discontinued

2 in stock
N/A

£2.06

0
22

DAMPER DRIFT

AP8152506

more info + more info -

Technical Specification: Clutch with five jaws[5M]

Replaced by

DAMPER DRIFT

844621

Discontinued

2 in stock
N/A

£2.06

0
