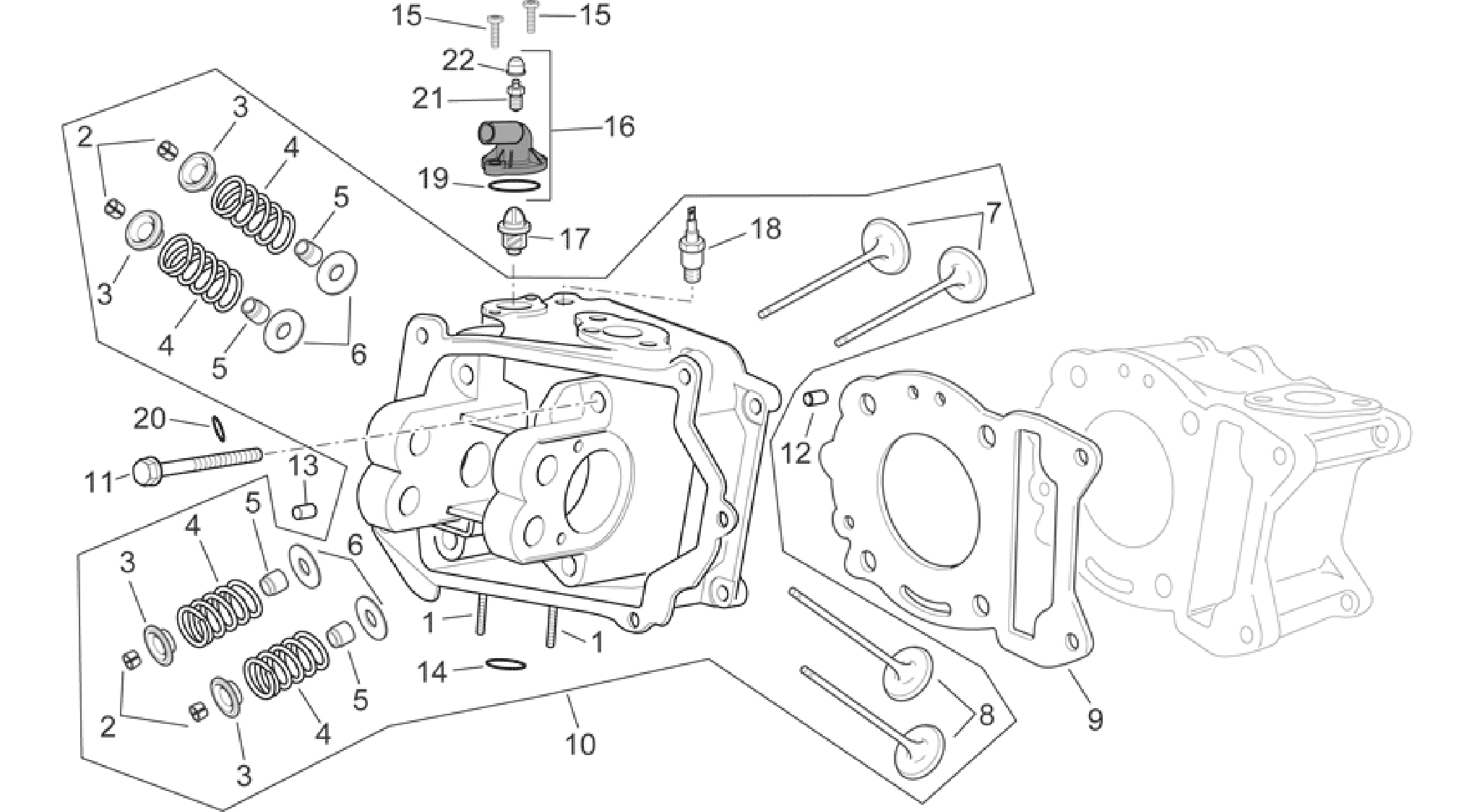

Scarabeo Scarabeo 300 Light E3 2009-2010 (APAC, NAFTA) Cylinder head

Cylinder head
Skip to results list
Position
Part Name
Stock
Price
  • 1
    STUD BOLT M7

    STUD BOLT M7

    435629
    75 in stock
    £1.56
    0
  • 2
    VALVE HALF-CONE

    VALVE HALF-CONE

    285846
    202 in stock
    £1.63
    0
  • 3
    UPPER CAP

    UPPER CAP

    483914
    9 in stock
    £4.72
    0
  • 4
    SPRING

    SPRING

    828480
    Back order
    £9.11
    0
  • 5
    VALVE GASKET RING

    VALVE GASKET RING

    436438
    41 in stock
    £9.16
    0
  • 6
    CUP

    CUP

    AP8580069
    13 in stock
    £0.64
    0
  • 7
    INTAKE VALVE

    INTAKE VALVE

    872999
    3 in stock
    £27.82
    0
  • 8
    EXHAUST VALVE

    EXHAUST VALVE

    873009
    Back order
    £32.97
    0
  • 9
    CYLINDER HEAD GASKET 0,3 MM

    CYLINDER HEAD GASKET 0,3 MM

    848168
    Replaced by

    CYLINDER HEAD GASKET

    1A014002
    Discontinued
    Back order
    N/A
    £12.83
    0
  • 10
    CYLINDER HEAD ASSY.

    CYLINDER HEAD ASSY.

    872864
    Replaced by

    CYLINDER HEAD ASSY.

    878330
    Discontinued
    Back order
    N/A
    £374.12
    0
  • 11
    SCREW

    SCREW

    844160
    Back order
    £0.62
    0
  • 12
    LOCATING DOWEL Ø7,5X12

    LOCATING DOWEL Ø7,5X12

    277916
    29 in stock
    £5.30
    0
  • 13
    LOCATING DOWEL Ø11X10

    LOCATING DOWEL Ø11X10

    478115
    19 in stock
    £0.38
    0
  • 14
    EXHAUST PIPE GASKET

    EXHAUST PIPE GASKET

    480853
    61 in stock
    £4.26
    0
  • 15
    HEX SOCKET SCREW M5X20

    HEX SOCKET SCREW M5X20

    845753
    Replaced by

    COVEX HEAD SCREW WITH TORX M5X20

    B016808
    1 in stock
    9 in stock
    £0.59
    £6.62
    0
    0
  • 16
    THERMOSTAT COVER

    THERMOSTAT COVER

    876943
    Back order
    £21.55
    0
  • 17
    THERMOSTAT

    THERMOSTAT

    82831R
    Replaced by

    THERMOSTAT

    82831R5
    Discontinued
    Back order
    N/A
    £57.69
    0
  • 18
    TEMPERATURE GAUGE

    TEMPERATURE GAUGE

    640485
    Replaced by

    TEMPERATURE GAUGE

    1A021287R
    Discontinued
    1 in stock
    N/A
    £38.53
    0
  • 19
    GASKET

    GASKET

    297027
    9 in stock
    £1.26
    0
  • 20
    O-RING

    O-RING

    478184
    Replaced by

    O-RING

    B017342
    19 in stock
    23 in stock
    £0.23
    £0.84
    0
    0
  • 21
    BLEED SCREW

    BLEED SCREW

    845605
    3 in stock
    £12.85
    0
  • 22
    BLEED VALVE CAP

    BLEED VALVE CAP

    063435
    24 in stock
    £2.38
    0
