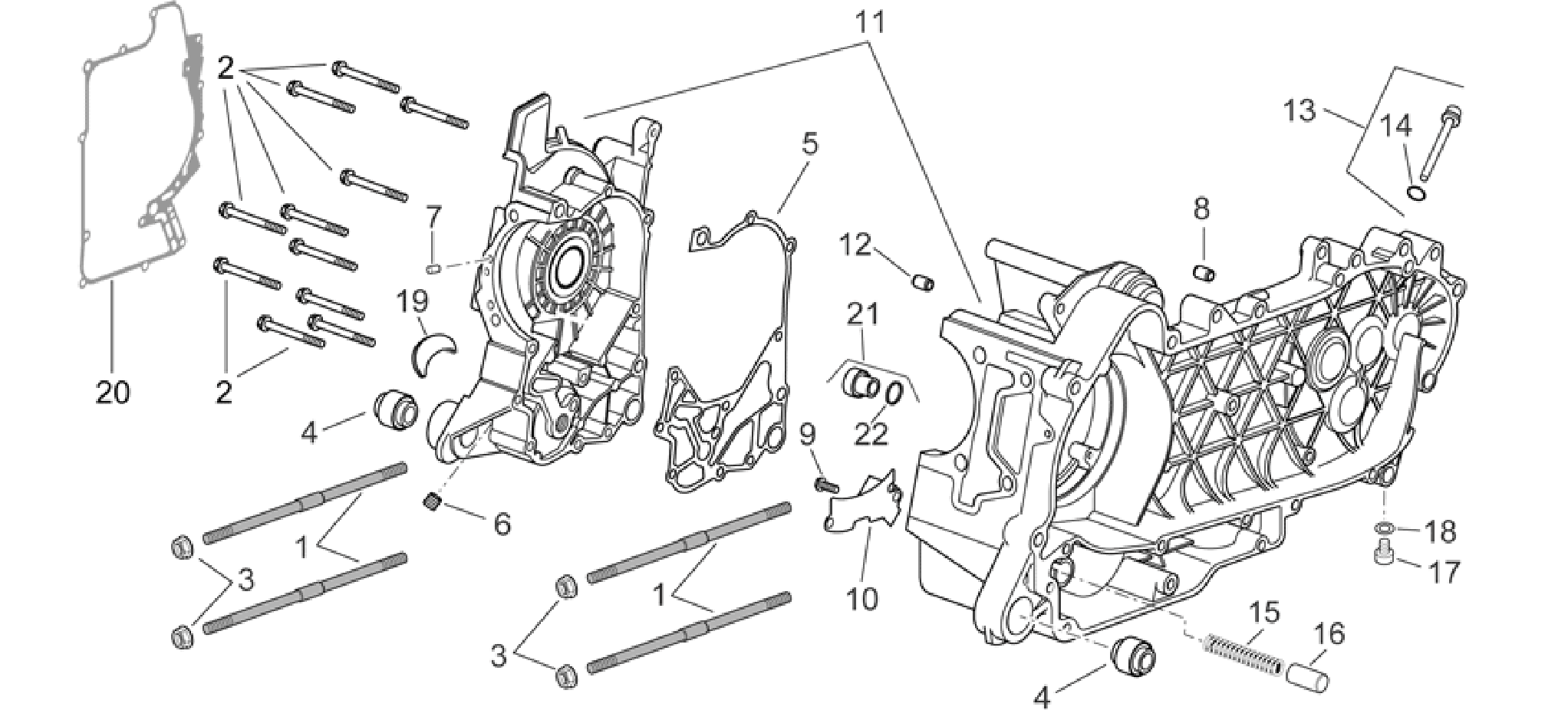

Scarabeo Scarabeo 300 Light E3 2009-2010 (APAC, NAFTA) Crankcase

Crankcase
Skip to results list
Position
Part Name
Stock
Price
  • 1
    STUD BOLT

    STUD BOLT

    840332
    Replaced by

    STUD BOLT

    877285
    Discontinued
    Back order
    N/A
    £5.06
    0
  • 2
    SCREW M6X60

    SCREW M6X60

    432142
    Replaced by

    FLANGED HEXAGON SCREW M6X60

    B016425
    22 in stock
    Back order
    £1.28
    £1.28
    0
    0
  • 3
    NUT M8X1,25

    NUT M8X1,25

    411296
    19 in stock
    £1.56
    0
  • 4
    ENGINE SUPPORT SILENT-BLOCK

    ENGINE SUPPORT SILENT-BLOCK

    486081
    16 in stock
    £8.38
    0
  • 5
    GASKET

    GASKET

    875111
    1 in stock
    £12.61
    0
  • 6
    PLUG M12X1,5

    PLUG M12X1,5

    411311
    12 in stock
    £1.20
    0
  • 7
    NOZZLE

    NOZZLE

    484034
    9 in stock
    £6.41
    0
  • 8
    PIN 6,5X9,5X15

    PIN 6,5X9,5X15

    239388
    46 in stock
    £1.08
    0
  • 9
    SCREW M5X10

    SCREW M5X10

    018575
    145 in stock
    £0.57
    0
  • 10
    UPPER OIL BULKHEAD

    UPPER OIL BULKHEAD

    485047
    Back order
    £9.79
    0
  • 11
    CRANKSHAFT CPL.,CAT.1

    CRANKSHAFT CPL.,CAT.1

    8747940002
    Replaced by

    COMPLETE CRANKCASE CAT.2

    B0172830002
    Discontinued
    Back order
    N/A
    £822.17
    0
  • 11
    CRANKSHAFT CPL.,CAT.1

    CRANKSHAFT CPL.,CAT.1

    8747940001
    Replaced by

    COMPLETE CRANKCASE CAT.1

    B0172830001
    Discontinued
    Back order
    N/A
    £809.91
    0
  • 12
    LOCATING DOWEL Ø7,5X12

    LOCATING DOWEL Ø7,5X12

    277916
    29 in stock
    £5.04
    0
  • 13
    OIL LEVEL ROD CPL.

    OIL LEVEL ROD CPL.

    843361
    Replaced by

    OIL PLUG ASSEMBLY

    843364
    Discontinued
    10 in stock
    N/A
    £4.64
    0
  • 14
    GASKET RING 14,43X9,19X2,62

    GASKET RING 14,43X9,19X2,62

    827085
    146 in stock
    £0.77
    0
  • 15
    OIL PRESSURE VALVE SPRING

    OIL PRESSURE VALVE SPRING

    485655
    18 in stock
    £0.88
    0
  • 16
    OIL PRESSURE VALVE

    OIL PRESSURE VALVE

    829661
    Back order
    £9.07
    0
  • 17
    HEX SOCKET SCREW M8X12

    HEX SOCKET SCREW M8X12

    269755
    20 in stock
    £1.08
    0
  • 18
    WASHER 8.2X12X1

    WASHER 8.2X12X1

    485703
    48 in stock
    £0.81
    0
  • 19
    CUP

    CUP

    840489
    13 in stock
    £0.97
    0
  • 20
    FLYWHEEL HOUSING COVER GASKET

    FLYWHEEL HOUSING COVER GASKET

    840504
    2 in stock
    £8.36
    0
  • 21
    FILTER DOOR INSERT

    FILTER DOOR INSERT

    845861
    4 in stock
    £8.06
    0
  • 22
    GASKET

    GASKET

    431065
    47 in stock
    £0.72
    0
