Scarabeo Scarabeo 250 Light E3 2006-2008 (APAC, EMEA) Crankcase

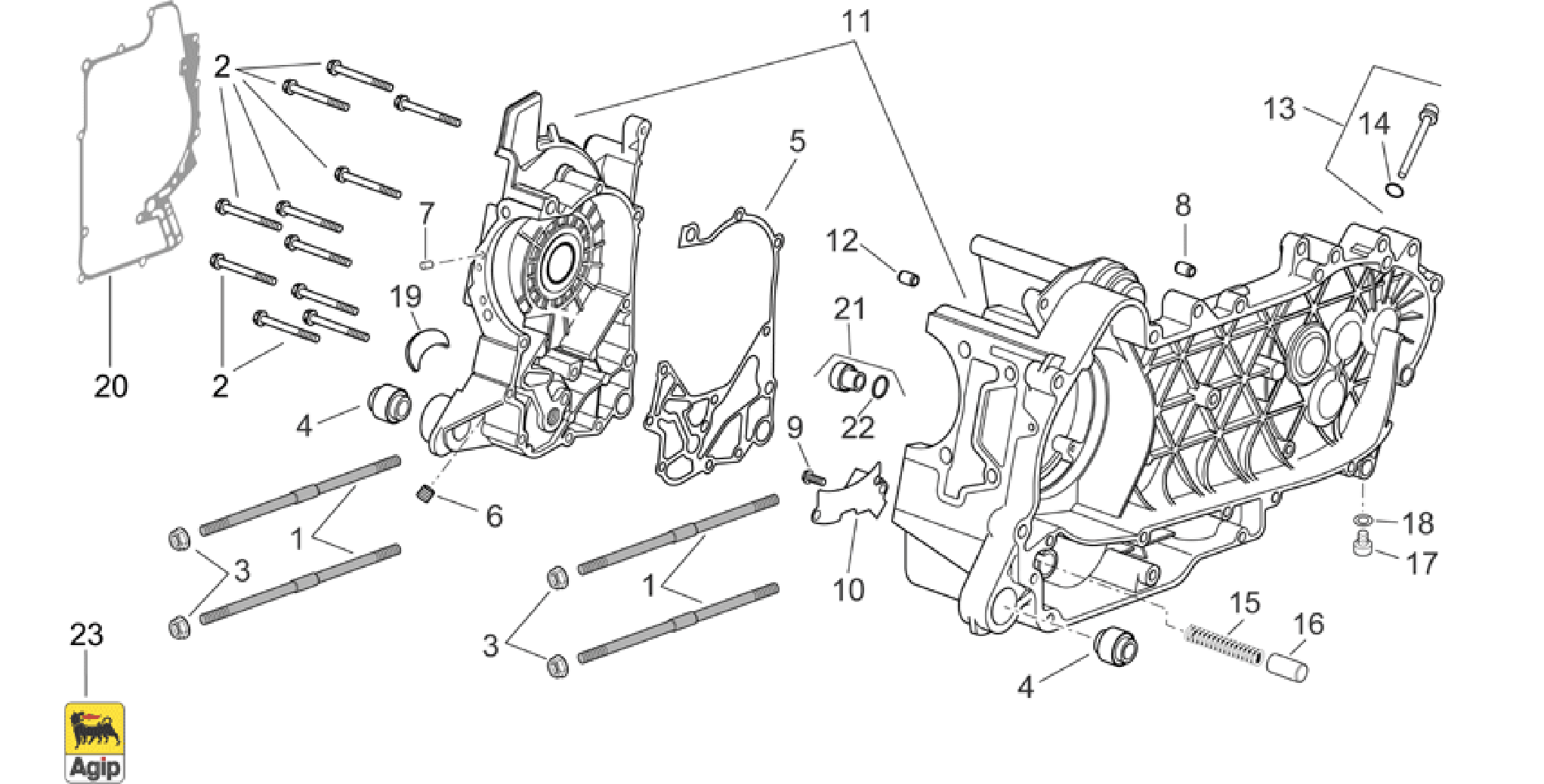

Crankcase
Skip to results list
Position
Part Name
Stock
Price
  • 1
    STUD BOLT

    STUD BOLT

    AP8577003
    Replaced by

    STUD BOLT

    877285
    Discontinued
    Back order
    N/A
    £5.06
    0
  • 2
    SCREW

    SCREW

    AP8550283
    Replaced by

    SCREW M6X60

    432142
    33 in stock
    22 in stock
    £1.28
    £1.28
    0
    0
  • 3
    NUT

    NUT

    AP8580064
    Replaced by

    NUT M8X1,25

    411296
    Discontinued
    19 in stock
    N/A
    £1.56
    0
  • 4
    SILENT-BLOCK

    SILENT-BLOCK

    AP8220617
    Replaced by

    ENGINE SUPPORT SILENT-BLOCK

    486081
    Discontinued
    16 in stock
    N/A
    £8.38
    0
  • 5
    GASKET

    GASKET

    AP8553003
    Replaced by

    GASKET

    875111
    Discontinued
    1 in stock
    N/A
    £12.61
    0
  • 6
    COVER M12X1,5

    COVER M12X1,5

    AP8560014
    Replaced by

    PLUG M12X1,5

    411311
    Discontinued
    12 in stock
    N/A
    £1.20
    0
  • 7
    NOZZLE

    NOZZLE

    AP8560017
    Replaced by

    NOZZLE

    484034
    Discontinued
    9 in stock
    N/A
    £6.41
    0
  • 8
    PIN D.9,5 H=15

    PIN D.9,5 H=15

    AP8550107
    Replaced by

    PIN 6,5X9,5X15

    239388
    46 in stock
    46 in stock
    £1.08
    £1.08
    0
    0
  • 9
    SCREW

    SCREW

    AP8560009
    Replaced by

    SCREW M5X10

    018575
    Discontinued
    145 in stock
    N/A
    £0.57
    0
  • 10
    PLATE

    PLATE

    AP8580167
    Replaced by

    PLATE

    828766
    Discontinued
    Back order
    N/A
    £0.48
    0
  • 11
    CRANKCASE ASSY CAT2

    CRANKCASE ASSY CAT2

    8479575002
    Replaced by

    CRANKSHAFT CPL.,CAT.1

    8747940002
    Discontinued
    Back order
    N/A
    £822.17
    0
  • 11
    CRANKCASE ASSY

    CRANKCASE ASSY

    8479575001
    Replaced by

    CRANKSHAFT CPL.,CAT.1

    8747940001
    Discontinued
    Back order
    N/A
    £809.91
    0
  • 12
    LOCATING DOWEL

    LOCATING DOWEL

    AP8551015
    Replaced by

    LOCATING DOWEL Ø7,5X12

    277916
    4 in stock
    29 in stock
    £5.04
    £5.04
    0
    0
  • 13
    OIL LEVEL ROD CPL.

    OIL LEVEL ROD CPL.

    AP8550586
    Replaced by

    COMPLETE OIL LEVEL DIPSTICK

    832130
    1 in stock
    47 in stock
    £5.19
    £5.19
    0
    0
  • 14
    O-RING

    O-RING

    AP8550334
    Replaced by

    GASKET RING 14,43X9,19X2,62

    827085
    20 in stock
    146 in stock
    £0.77
    £0.77
    0
    0
  • 15
    VALVE SPRING

    VALVE SPRING

    AP8580087
    Replaced by

    OIL PRESSURE VALVE SPRING

    485655
    1 in stock
    18 in stock
    £0.88
    £0.88
    0
    0
  • 16
    OIL PRESSURE VALVE

    OIL PRESSURE VALVE

    AP8560142
    Replaced by

    OIL PRESSURE VALVE

    829661
    1 in stock
    Back order
    £9.07
    £9.07
    0
    0
  • 17
    TRANSM.OIL UNLOAD SCREW

    TRANSM.OIL UNLOAD SCREW

    AP8550361
    Replaced by

    HEX SOCKET SCREW M8X12

    269755
    35 in stock
    20 in stock
    £1.08
    £1.08
    0
    0
  • 18
    ALLOY WASHER

    ALLOY WASHER

    AP8550304
    Replaced by

    WASHER 8.2X12X1

    485703
    3 in stock
    48 in stock
    £0.81
    £0.81
    0
    0
  • 19
    INTAKE OIL CUP

    INTAKE OIL CUP

    AP8575007
    Replaced by

    CUP

    840489
    Discontinued
    13 in stock
    N/A
    £0.97
    0
  • 20
    GASKET

    GASKET

    AP8577008
    Replaced by

    FLYWHEEL HOUSING COVER GASKET

    840504
    Discontinued
    2 in stock
    N/A
    £8.36
    0
  • 21
    FILTER SUPPORT INSERT

    FILTER SUPPORT INSERT

    AP8268523
    Replaced by

    FILTER DOOR INSERT

    845861
    Discontinued
    4 in stock
    N/A
    £8.06
    0
  • 22
    GASKET

    GASKET

    AP8550117
    Replaced by

    GASKET

    431065
    19 in stock
    47 in stock
    £0.72
    £0.72
    0
    0
  • 23
    DECAL "AGIP"

    DECAL "AGIP"

    852029
    Replaced by

    """ENI"" LABEL"

    895839
    1 in stock
    Back order
    £2.39
    £2.39
    0
    0
