Scarabeo Scarabeo 125-250 E2 (eng.Piaggio) 04-06 Cylinder head

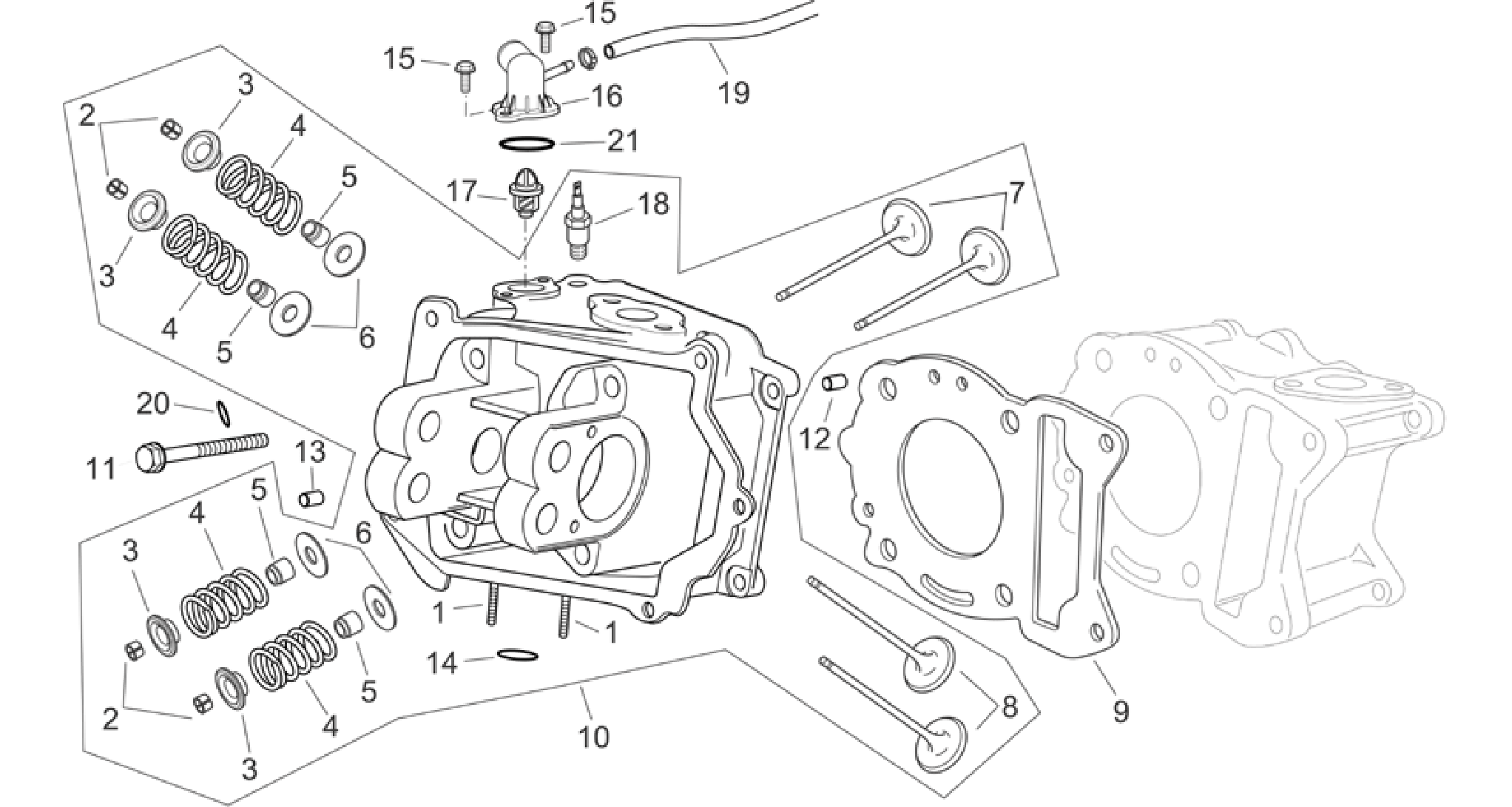

Cylinder head
Skip to results list
Position
Part Name
Stock
Price
  • 1
    EXHAUST PIPE STUD BOLT

    EXHAUST PIPE STUD BOLT

    AP8550401
    Replaced by

    STUD BOLT M7

    435629
    26 in stock
    75 in stock
    £1.48
    £1.48
    0
    0
  • 2
    HALF-CONE

    HALF-CONE

    AP8550508
    Replaced by

    VALVE HALF-CONE

    285846
    23 in stock
    202 in stock
    £1.56
    £1.56
    0
    0
  • 3
    CUP

    CUP

    AP8580076
    Replaced by

    UPPER CAP

    483914
    12 in stock
    9 in stock
    £4.50
    £4.50
    0
    0
  • 4
    SPRING

    SPRING

    AP8580160
    Replaced by

    SPRING

    828480
    Discontinued
    Back order
    N/A
    £7.66
    0
  • 5
    VALVE GASKET RING

    VALVE GASKET RING

    AP8550326
    Replaced by

    VALVE GASKET RING

    436438
    5 in stock
    41 in stock
    £8.72
    £8.72
    0
    0
  • 6
    CUP

    CUP

    AP8580069
    13 in stock
    £0.64
    0
  • 7
    INTAKE VALVE

    INTAKE VALVE

    AP8580078
    Replaced by

    INTAKE VALVE

    872999
    7 in stock
    3 in stock
    £27.82
    £27.82
    0
    0
  • 8
    EXHAUST VALVE

    EXHAUST VALVE

    AP8580079
    more info + more info -
    Technical Specifications: 250 cc version[250]
    Replaced by

    EXHAUST VALVE

    873114
    14 in stock
    Back order
    £45.05
    £45.05
    0
    0
  • 9
    CYLINDER HEAD GASKET 0,3 MM

    CYLINDER HEAD GASKET 0,3 MM

    AP8590007
    more info + more info -
    Technical Specifications: 125 cc version[125]
    Replaced by

    CYLINDER HEAD GASKET 0,3 MM

    876625
    Discontinued
    1 in stock
    N/A
    £14.11
    0
  • 9
    CYLINDER HEAD GASKET 0,3 MM

    CYLINDER HEAD GASKET 0,3 MM

    AP8577021
    more info + more info -
    Technical Specifications: 250 cc version[250]
    Replaced by

    CYLINDER HEAD GASKET 0,3 MM

    831174
    Discontinued
    Back order
    N/A
    £15.25
    0
  • 10
    CYLINDER HEAD ASSY.

    CYLINDER HEAD ASSY.

    AP8580271
    more info + more info -
    Technical Specifications: 125 cc version[125], Up to engine M281M 15640[MA]
    1 in stock
    £467.30
    0
  • 10
    CYLINDER HEAD ASSY.

    CYLINDER HEAD ASSY.

    AP8577023
    more info + more info -
    Technical Specifications: 250 cc version[250]
    Back order
    £436.51
    0
  • 11
    SCREW

    SCREW

    AP8580086
    more info + more info -
    Technical Specifications: 125 cc version[125]
    Replaced by

    SCREW W/ FLANGE

    485603
    Discontinued
    Back order
    N/A
    £1.55
    0
  • 11
    SCREW M6X110

    SCREW M6X110

    AP8577009
    more info + more info -
    Technical Specifications: 250 cc version[250]
    Back order
    £3.07
    0
  • 12
    LOCATING DOWEL

    LOCATING DOWEL

    AP8551015
    Replaced by

    LOCATING DOWEL Ø7,5X12

    277916
    4 in stock
    29 in stock
    £5.04
    £5.04
    0
    0
  • 13
    DOWEL

    DOWEL

    AP8560016
    Replaced by

    LOCATING DOWEL Ø11X10

    478115
    Discontinued
    19 in stock
    N/A
    £0.84
    0
  • 14
    EXHAUST PIPE GASKET

    EXHAUST PIPE GASKET

    AP8580066
    Replaced by

    EXHAUST PIPE GASKET

    480853
    6 in stock
    61 in stock
    £4.06
    £4.06
    0
    0
  • 15
    SCREW

    SCREW

    AP8551060
    Replaced by

    SCREW M5X22

    828662
    53 in stock
    11 in stock
    £1.06
    £1.06
    0
    0
  • 16
    THERMOSTAT COVER

    THERMOSTAT COVER

    AP8580154
    Replaced by

    Cover

    828263
    Discontinued
    3 in stock
    N/A
    £8.23
    0
  • 17
    THERMOSTAT

    THERMOSTAT

    AP8575009
    Replaced by

    THERMOSTAT

    82831R
    Discontinued
    Back order
    N/A
    £54.94
    0
  • 18
    THERMISTOR

    THERMISTOR

    AP8580258
    more info + more info -
    Technical Specifications: 125 cc version[125]
    Replaced by

    THERMISTOR

    82622R
    2 in stock
    3 in stock
    £22.84
    £22.84
    0
    0
  • 18
    THERMISTOR

    THERMISTOR

    AP8577025
    more info + more info -
    Technical Specifications: 250 cc version[250]
    Replaced by

    THERMISTOR

    584573
    Discontinued
    4 in stock
    N/A
    £14.27
    0
  • 19
    PIPE

    PIPE

    AP8580146
    Replaced by

    HEAD-CARB.BY-PASS PIPE

    827921
    Discontinued
    Back order
    N/A
    £5.46
    0
  • 20
    O-RING

    O-RING

    AP8575010
    Replaced by

    O-RING

    478184
    19 in stock
    19 in stock
    £0.84
    £0.84
    0
    0
  • 21
    O-RING

    O-RING

    AP8144727
    41 in stock
    £0.78
    0
