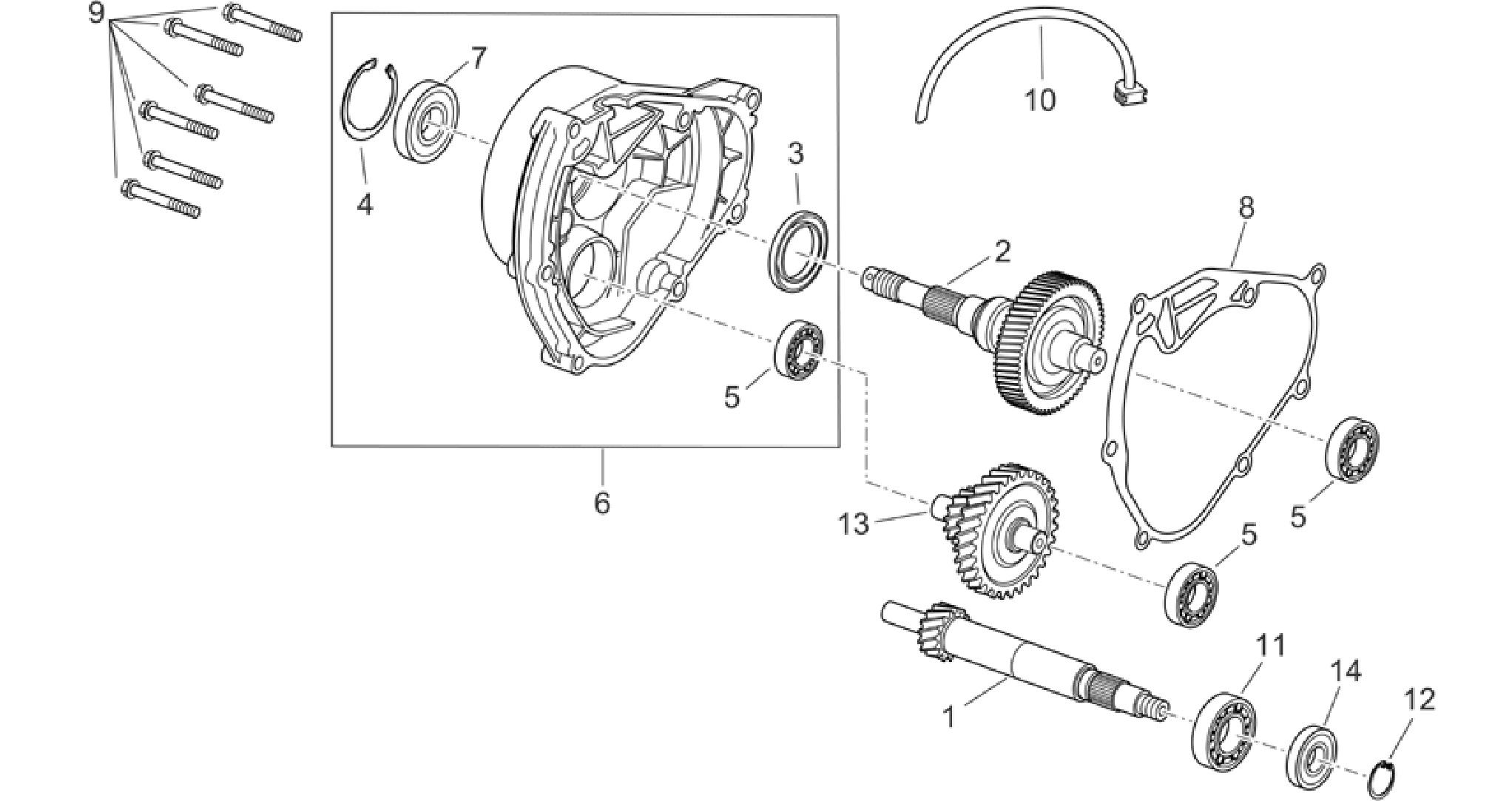

Scarabeo Scarabeo 125-200 E3 (eng.Piaggio) 06 Transmission

Transmission
Skip to results list
Position
Part Name
Stock
Price
  • 1
    DRIVEN PULLEY SHAFT

    DRIVEN PULLEY SHAFT

    AP8577061
    Replaced by

    DRIVEN PULLEY SHAFT Z=14

    8738755
    Discontinued
    Back order
    N/A
    £176.74
    0
  • 2
    REAR WHEEL AXIS CPL.

    REAR WHEEL AXIS CPL.

    AP8176303
    more info + more info -
    Technical Specification: 125 cc version[125]
    Replaced by

    ASSE RUOTA CON P.I.

    830599
    Discontinued
    Back order
    N/A
    £73.54
    0
  • 2
    REAR WHEEL AXIS CPL.

    REAR WHEEL AXIS CPL.

    8421005
    more info + more info -
    Technical Specification: 200 cc version[200]
    Back order
    £107.96
    0
  • 3
    OIL SEAL 38X50X7

    OIL SEAL 38X50X7

    AP8560125
    Replaced by

    OIL SEAL 38X50X7

    873351
    9 in stock
    21 in stock
    £6.10
    £6.10
    0
    0
  • 4
    CIRCLIP

    CIRCLIP

    AP8560130
    Replaced by

    CIRCLIP

    829206
    1 in stock
    1 in stock
    £1.42
    £1.42
    0
    0
  • 5
    BEARING D15X42X13

    BEARING D15X42X13

    AP8560019
    Replaced by

    RADIAL BALL BEARING 15X42X13

    485912
    6 in stock
    15 in stock
    £18.23
    £18.23
    0
    0
  • 6
    SIDE COVER

    SIDE COVER

    8481875
    Back order
    £203.25
    0
  • 7
    BEARING D30X55X13

    BEARING D30X55X13

    AP8560126
    Replaced by

    RADIAL BEARING 30X55X13

    82659R
    2 in stock
    3 in stock
    £9.77
    £9.77
    0
    0
  • 8
    GASKET

    GASKET

    AP8575022
    Replaced by

    GASKET

    847931
    Discontinued
    8 in stock
    N/A
    £6.13
    0
  • 9
    SCREW

    SCREW

    AP8570077
    Replaced by

    SCREW W/ FLANGE M8X45

    487211
    Discontinued
    20 in stock
    N/A
    £0.95
    0
  • 10
    BREATHER

    BREATHER

    AP8176263
    Replaced by

    BREATHER PIPE

    844669
    Discontinued
    Back order
    N/A
    £6.57
    0
  • 11
    BEARING

    BEARING

    AP8575025
    Replaced by

    RADIAL BALL BEARING 20X47X14

    833701
    Discontinued
    1 in stock
    N/A
    £20.58
    0
  • 12
    SNAP RING

    SNAP RING

    AP8560007
    Replaced by

    CIRCLIP 25X26.9X1.2

    000674
    Discontinued
    68 in stock
    N/A
    £1.93
    0
  • 13
    TRANSMISSION SHAFT

    TRANSMISSION SHAFT

    AP8176302
    more info + more info -
    Technical Specification: 125 cc version[125]
    Replaced by

    TRANSMISSION SHAFT

    830598
    Discontinued
    Back order
    N/A
    £195.44
    0
  • 13
    TRANSMISSION SHAFT

    TRANSMISSION SHAFT

    8420985
    more info + more info -
    Technical Specification: 200 cc version[200]
    Back order
    £167.52
    0
  • 14
    GASKET RING

    GASKET RING

    AP8550577
    Replaced by

    GASKET RING 20-32-7

    82878R
    7 in stock
    16 in stock
    £10.18
    £10.18
    0
    0
