Scarabeo Scarabeo 125-200 E3 (eng.Piaggio) 06 Cylinder head

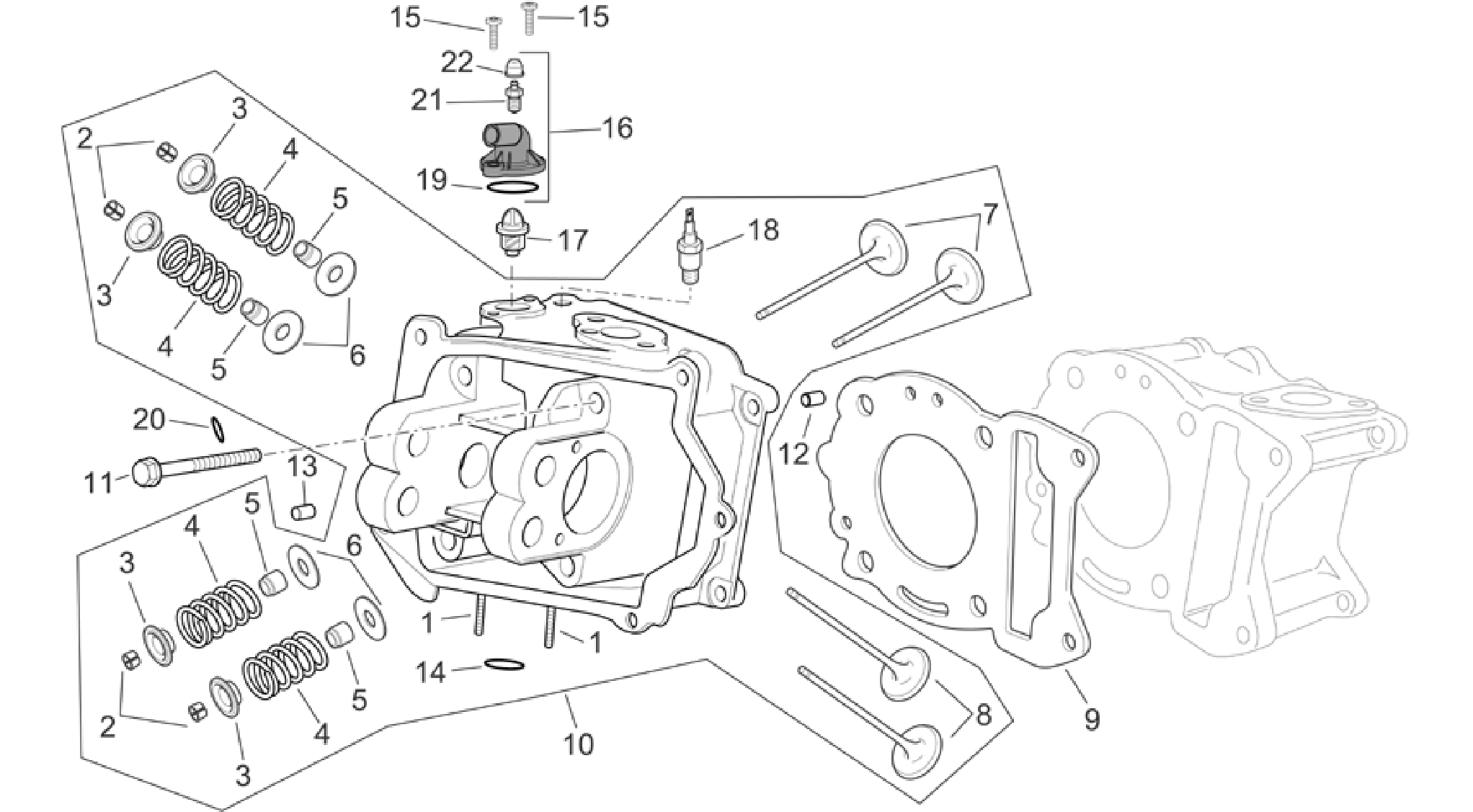

Cylinder head
Skip to results list
Position
Part Name
Stock
Price
  • 1
    EXHAUST PIPE STUD BOLT

    EXHAUST PIPE STUD BOLT

    AP8550401
    Replaced by

    STUD BOLT M7

    435629
    26 in stock
    75 in stock
    £1.48
    £1.48
    0
    0
  • 2
    HALF-CONE

    HALF-CONE

    AP8550508
    Replaced by

    VALVE HALF-CONE

    285846
    23 in stock
    202 in stock
    £1.56
    £1.56
    0
    0
  • 3
    CUP

    CUP

    AP8580076
    Replaced by

    UPPER CAP

    483914
    12 in stock
    9 in stock
    £4.50
    £4.50
    0
    0
  • 4
    SPRING

    SPRING

    AP8580160
    Replaced by

    SPRING

    828480
    Discontinued
    Back order
    N/A
    £7.66
    0
  • 5
    VALVE GASKET RING

    VALVE GASKET RING

    AP8550326
    Replaced by

    VALVE GASKET RING

    436438
    5 in stock
    41 in stock
    £8.72
    £8.72
    0
    0
  • 6
    CUP

    CUP

    AP8580069
    13 in stock
    £0.64
    0
  • 7
    INTAKE VALVE

    INTAKE VALVE

    AP8580078
    Replaced by

    INTAKE VALVE

    872999
    7 in stock
    3 in stock
    £27.82
    £27.82
    0
    0
  • 8
    EXHAUST VALVE

    EXHAUST VALVE

    AP8580079
    Replaced by

    EXHAUST VALVE

    873114
    14 in stock
    Back order
    £45.05
    £45.05
    0
    0
  • 9
    CYLINDER HEAD GASKET 0,3 MM

    CYLINDER HEAD GASKET 0,3 MM

    AP8590007
    more info + more info -
    Technical Specification: 125 cc version[125]
    Replaced by

    CYLINDER HEAD GASKET 0,3 MM

    876625
    Discontinued
    1 in stock
    N/A
    £14.11
    0
  • 9
    CYLINDER HEAD GASKET 1,1 MM

    CYLINDER HEAD GASKET 1,1 MM

    AP8580180
    more info + more info -
    Technical Specification: 125 cc version[125]
    Replaced by

    GASKET - CYLINDER/CRANK

    829983
    Discontinued
    3 in stock
    N/A
    £9.79
    0
  • 9
    CYLINDER HEAD GASKET 1,1 MM

    CYLINDER HEAD GASKET 1,1 MM

    AP8580040
    more info + more info -
    Technical Specification: 200 cc version[200]
    Replaced by

    HEAD GASKET LEADER 200 4V

    829265
    8 in stock
    4 in stock
    £13.23
    £13.23
    0
    0
  • 9
    CYLINDER HEAD GASKET 0,3 MM

    CYLINDER HEAD GASKET 0,3 MM

    AP8577021
    more info + more info -
    Technical Specification: 200 cc version[200]
    Replaced by

    CYLINDER HEAD GASKET 0,3 MM

    831174
    Discontinued
    Back order
    N/A
    £15.25
    0
  • 10
    CYLINDER HEAD ASSY.

    CYLINDER HEAD ASSY.

    871820
    Back order
    £437.49
    0
  • 11
    SCREW

    SCREW

    AP8580086
    Replaced by

    SCREW W/ FLANGE

    485603
    Discontinued
    Back order
    N/A
    £1.55
    0
  • 12
    LOCATING DOWEL

    LOCATING DOWEL

    AP8551015
    Replaced by

    LOCATING DOWEL Ø7,5X12

    277916
    4 in stock
    29 in stock
    £5.04
    £5.04
    0
    0
  • 13
    DOWEL

    DOWEL

    AP8560016
    Replaced by

    LOCATING DOWEL Ø11X10

    478115
    Discontinued
    19 in stock
    N/A
    £0.84
    0
  • 14
    EXHAUST PIPE GASKET

    EXHAUST PIPE GASKET

    AP8580066
    Replaced by

    EXHAUST PIPE GASKET

    480853
    6 in stock
    61 in stock
    £4.06
    £4.06
    0
    0
  • 15
    HEX SOCKET SCREW

    HEX SOCKET SCREW

    AP8176289
    Replaced by

    HEX SOCKET SCREW M5X20

    845753
    Discontinued
    1 in stock
    N/A
    £6.62
    0
  • 16
    THERMOSTAT COVER

    THERMOSTAT COVER

    AP8176291
    Replaced by

    THERMOSTAT COVER

    876943
    Discontinued
    Back order
    N/A
    £21.55
    0
  • 17
    THERMOSTAT

    THERMOSTAT

    82831R
    Replaced by

    THERMOSTAT

    82831R5
    Discontinued
    Back order
    N/A
    £54.94
    0
  • 18
    THERMISTOR

    THERMISTOR

    AP8577025
    Replaced by

    THERMISTOR

    584573
    Discontinued
    4 in stock
    N/A
    £14.27
    0
  • 19
    GASKET

    GASKET

    AP8176290
    Replaced by

    GASKET

    846974
    Discontinued
    5 in stock
    N/A
    £5.04
    0
  • 20
    O-RING

    O-RING

    AP8575010
    Replaced by

    O-RING

    478184
    19 in stock
    19 in stock
    £0.84
    £0.84
    0
    0
  • 21
    CAP

    CAP

    AP8560010
    Replaced by

    BLEED VALVE CAP

    063435
    Discontinued
    24 in stock
    N/A
    £2.26
    0
  • 22
    SCREW

    SCREW

    AP8176292
    Replaced by

    BLEED SCREW

    845605
    Discontinued
    3 in stock
    N/A
    £12.25
    0
