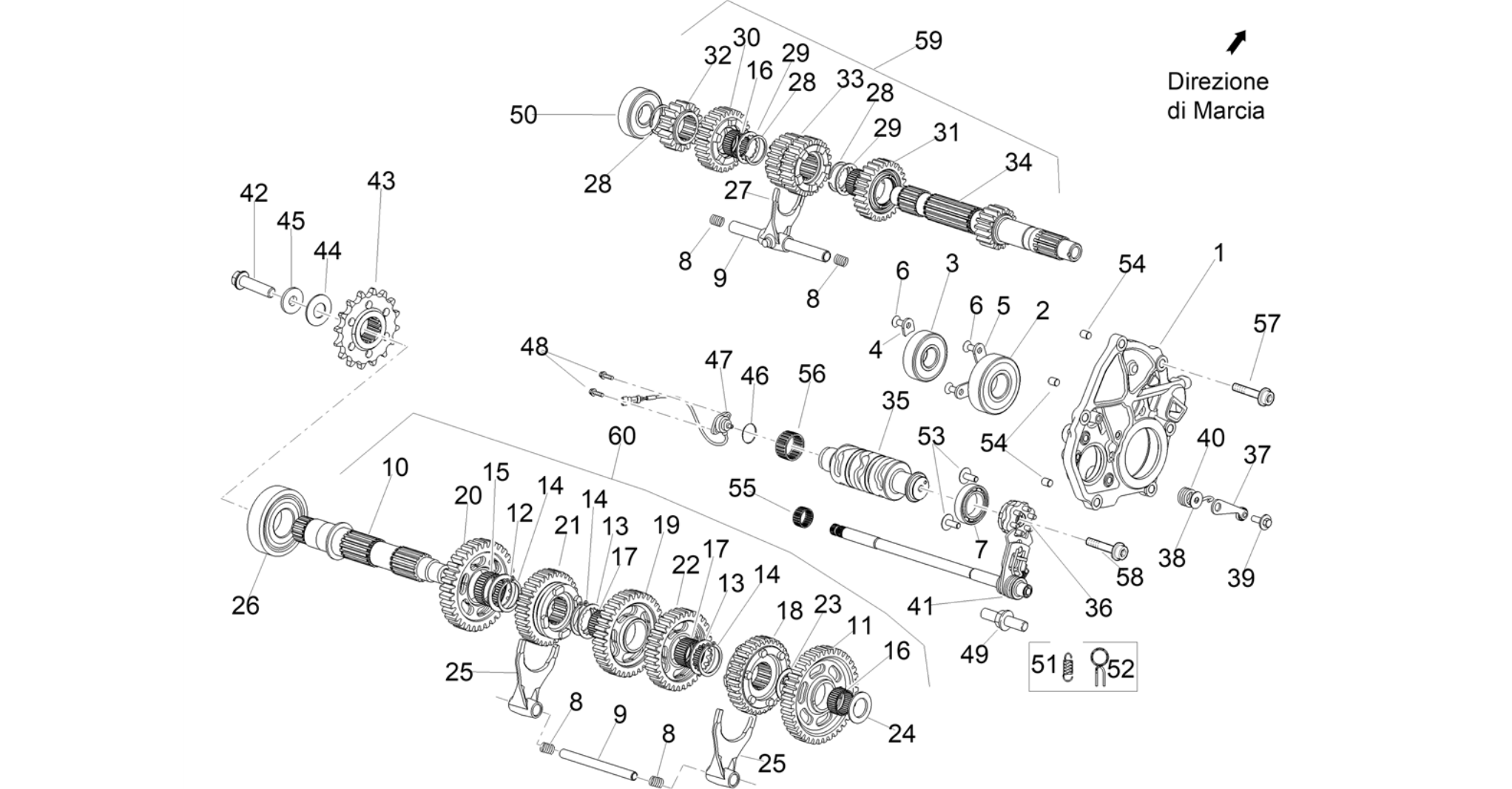

Aprilia RSV4 1100 E5+ ABS 2025 (NAFTA) Gear box - Gear assembly

Gear box - Gear assembly
Skip to results list
Position
Part Name
Stock
Price
  • 1
    TRASMISSION SUPPORT

    TRASMISSION SUPPORT

    2A000436
    1 in stock
    £89.95
    0
  • 2
    BALL BEARING 25X62X17

    BALL BEARING 25X62X17

    898634
    Back order
    £12.41
    0
  • 3
    BALL BEARING 20X52X15

    BALL BEARING 20X52X15

    898635
    4 in stock
    £11.56
    0
  • 4
    CHECK BEARING PLATE

    CHECK BEARING PLATE

    AP9150145
    1 in stock
    £30.96
    0
  • 5
    CHECK BEARING PLATE

    CHECK BEARING PLATE

    857271
    3 in stock
    £10.24
    0
  • 6
    COUNTERSUNK-HEAD SCREW M6X16

    COUNTERSUNK-HEAD SCREW M6X16

    1A011248
    Back order
    £3.89
    0
  • 7
    BALL BEARING 25X42X9

    BALL BEARING 25X42X9

    857250
    1 in stock
    £9.53
    0
  • 8
    SPRING

    SPRING

    857175
    10 in stock
    £6.30
    0
  • 9
    FORK SHAFT

    FORK SHAFT

    2A000440
    Back order
    £26.38
    0
  • 10
    DRIVEN SHAFT

    DRIVEN SHAFT

    857236
    Back order
    £256.74
    0
  • 11
    1ST WHEEL GEAR Z=39

    1ST WHEEL GEAR Z=39

    2A000879
    2 in stock
    £190.16
    0
  • 12
    WASHER 30X40X1,5

    WASHER 30X40X1,5

    857308
    1 in stock
    £12.58
    0
  • 13
    CLEARANCE WASHER

    CLEARANCE WASHER

    857247
    22 in stock
    £16.14
    0
  • 14
    CIRCLIP D30

    CIRCLIP D30

    857248
    10 in stock
    £4.06
    0
  • 15
    ROLLER CAGE 30X35X13

    ROLLER CAGE 30X35X13

    857309
    12 in stock
    £72.85
    0
  • 16
    ROLLER CAGE 24X28X13

    ROLLER CAGE 24X28X13

    857233
    34 in stock
    £68.79
    0
  • 17
    ROLLER CAGE 26X30X15,6

    ROLLER CAGE 26X30X15,6

    857244
    26 in stock
    £68.79
    0
  • 18
    5TH WHEEL GEAR Z=34

    5TH WHEEL GEAR Z=34

    2A000890
    Back order
    £181.92
    0
  • 19
    3RD GEAR ON THE SEC. Z=34

    3RD GEAR ON THE SEC. Z=34

    2A000285
    5 in stock
    £130.74
    0
  • 20
    2ND GEAR ON THE SEC. Z=33

    2ND GEAR ON THE SEC. Z=33

    1A027354
    Back order
    £118.40
    0
  • 21
    6TH WHEEL GEAR Z=33

    6TH WHEEL GEAR Z=33

    857242
    4 in stock
    £192.93
    0
  • 22
    4TH GEAR ON THE SEC. Z=31

    4TH GEAR ON THE SEC. Z=31

    2A000286
    5 in stock
    £131.66
    0
  • 23
    WASHER 24X35X1

    WASHER 24X35X1

    857246
    1 in stock
    £12.58
    0
  • 24
    WASHER 20,1X33,5X2,5

    WASHER 20,1X33,5X2,5

    857245
    1 in stock
    £11.27
    0
  • 25
    FORK

    FORK

    2A000558
    8 in stock
    £161.05
    0
  • 26
    BALL BEARING 30X72X19

    BALL BEARING 30X72X19

    898633
    1 in stock
    £20.34
    0
  • 27
    FORK

    FORK

    2A000453R
    1 in stock
    £200.23
    0
  • 28
    WASHER FOR SHAFTS

    WASHER FOR SHAFTS

    857232
    10 in stock
    £4.06
    0
  • 29
    CLEARANCE WASHER

    CLEARANCE WASHER

    857234
    12 in stock
    £16.14
    0
  • 30
    6TH PINION GEAR Z=27

    6TH PINION GEAR Z=27

    857231
    4 in stock
    £131.66
    0
  • 31
    5TH PINION GEAR Z=26

    5TH PINION GEAR Z=26

    857230
    4 in stock
    £131.66
    0
  • 32
    2ND GEAR ON THE SEC. Z=16

    2ND GEAR ON THE SEC. Z=16

    1A027353
    Back order
    £63.60
    0
  • 33
    3RD-4TH PINION GEAR Z=20/21

    3RD-4TH PINION GEAR Z=20/21

    2A000554
    5 in stock
    £294.61
    0
  • 34
    PRIMARY GEAR SHAFT

    PRIMARY GEAR SHAFT

    2A000552
    1 in stock
    £288.48
    0
  • 35
    SHIFT CAM

    SHIFT CAM

    857251
    3 in stock
    £175.66
    0
  • 36
    INDEX WASHER

    INDEX WASHER

    857123
    2 in stock
    £41.48
    0
  • 37
    INDEX ASSY. LEVER

    INDEX ASSY. LEVER

    857274
    4 in stock
    £31.68
    0
  • 38
    WASHER D6,3X18X1

    WASHER D6,3X18X1

    AP9150051
    25 in stock
    £3.58
    0
  • 39
    SCREW W/ FLANGE M6X15

    SCREW W/ FLANGE M6X15

    AP9150006
    11 in stock
    £9.90
    0
  • 40
    SPRING

    SPRING

    2A000048
    2 in stock
    £5.85
    0
  • 41
    GEAR SHAFT+SPRING CPL.

    GEAR SHAFT+SPRING CPL.

    857253
    Back order
    £96.62
    0
  • 42
    SCREW M10X35

    SCREW M10X35

    B043042
    Back order
    £1.02
    0
  • 43
    PINION Z=16

    PINION Z=16

    890827
    1 in stock
    £70.38
    0
  • 44
    BELLEVILLE SPRING

    BELLEVILLE SPRING

    854909
    21 in stock
    £1.72
    0
  • 45
    T BUSH

    T BUSH

    854951
    14 in stock
    £7.83
    0
  • 46
    O-RING

    O-RING

    857494
    Back order
    £6.20
    0
  • 47
    GEAR POSITION SENSOR

    GEAR POSITION SENSOR

    2D000300
    Replaced by

    GEAR POSITION SENSOR

    1A018096R
    Discontinued
    2 in stock
    N/A
    £131.93
    0
  • 48
    SCREW W/ FLANGE M5X15

    SCREW W/ FLANGE M5X15

    AP8152273
    34 in stock
    £1.49
    0
  • 49
    THREADED PIN

    THREADED PIN

    899599
    2 in stock
    £11.67
    0
  • 50
    BALL BEARING 20X52X15

    BALL BEARING 20X52X15

    898636
    1 in stock
    £12.41
    0
  • 51
    FASTEN SPRING

    FASTEN SPRING

    857260
    Back order
    £14.17
    0
  • 52
    SPRING

    SPRING

    2A000047
    9 in stock
    £7.92
    0
  • 53
    HEX SOCKET SCREW M6X16

    HEX SOCKET SCREW M6X16

    1A011261
    Back order
    £3.89
    0
  • 54
    LOCATING DOWEL M8X12

    LOCATING DOWEL M8X12

    857427
    4 in stock
    £1.77
    0
  • 55
    12X8X12 ROLLER BEARING

    12X8X12 ROLLER BEARING

    B045224
    2 in stock
    £5.92
    0
  • 56
    ROLLER CAGE HK1512

    ROLLER CAGE HK1512

    857249
    4 in stock
    £22.27
    0
  • 57
    SCREW W/ FLANGE M8X25

    SCREW W/ FLANGE M8X25

    AP8152287
    16 in stock
    £4.62
    0
  • 59
    PRIMARY SHAFT ASSY

    PRIMARY SHAFT ASSY

    1A027351
    Back order
    £342.47
    0
  • 60
    SEC. SHAFT ASSY

    SEC. SHAFT ASSY

    1A027352
    Back order
    £244.62
    0
