Moto Guzzi Quota ES 1100 1998-2002 Front fork >KM112000

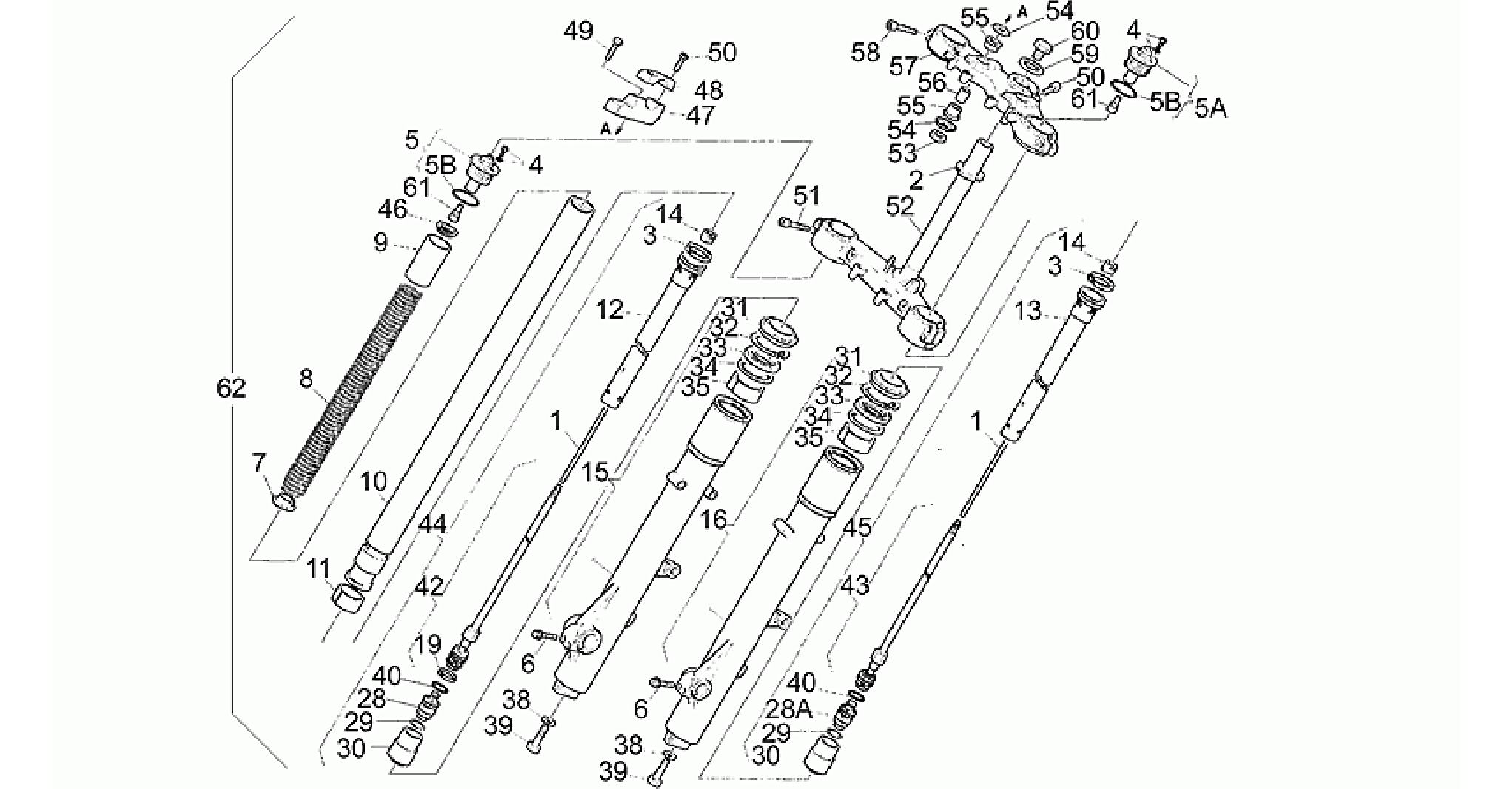

Front fork >KM112000
Skip to results list
Position
Part Name
Stock
Price
  • 1
    PISTON

    PISTON

    GU30530560
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £15.21
    0
  • 2
    RING NUT

    RING NUT

    GU27530511
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Replaced by

    FORK LOWER RING NUT

    AP8203588
    Discontinued
    Back order
    N/A
    £23.08
    0
  • 3
    RING

    RING

    GU03530511
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £18.14
    0
  • 4
    SCREW WITH OR

    SCREW WITH OR

    GU03530506
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Replaced by

    SCREW COMPLETE M4X6

    AP8163369
    Discontinued
    Back order
    N/A
    £4.11
    0
  • 5
    O-RING

    O-RING

    GU30530561
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Replaced by

    O-RING

    AP8163104
    Discontinued
    4 in stock
    N/A
    £1.85
    0
  • 5
    PLUG

    PLUG

    GU30504527
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £170.67
    0
  • 5
    PLUG

    PLUG

    GU30504526
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £138.01
    0
  • 6
    SCREW

    SCREW

    GU30530562
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Replaced by

    SCREW W/ FLANGE

    AP8123540
    Discontinued
    Back order
    N/A
    £4.17
    0
  • 7
    SPRING SEAT

    SPRING SEAT

    GU30530563
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £3.78
    0
  • 8
    SPRING

    SPRING

    GU30526626
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £72.52
    0
  • 9
    PIPE

    PIPE

    GU30530564
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £13.97
    0
  • 10
    SLEEVE

    SLEEVE

    GU30525426
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £350.97
    0
  • 11
    LOWER BUSH

    LOWER BUSH

    GU03530510
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Replaced by

    BUSH

    AP8163098
    Discontinued
    Discontinued
    N/A
    N/A
  • 12
    RH ROD

    RH ROD

    GU30530565
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £173.94
    0
  • 13
    LH ROD

    LH ROD

    GU30530566
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £185.40
    0
  • 14
    RETURN NUT

    RETURN NUT

    GU01530572
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of
    Replaced by

    NUT M12X1,25 CH19

    AP8163351
    Discontinued
    Back order
    N/A
    £13.89
    0
  • 15
    LH SLEEVE CPL.

    LH SLEEVE CPL.

    GU30522526
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £276.93
    0
  • 16
    RH SLEEVE CPL.

    RH SLEEVE CPL.

    GU30522626
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £288.34
    0
  • 19
    RING

    RING

    GU01530580
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Replaced by

    PISTON RING D.26

    AP8163353
    Discontinued
    Back order
    N/A
    £19.73
    0
  • 28
    LH STROKE LIMIT STOP

    LH STROKE LIMIT STOP

    GU30526327
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £102.86
    0
  • 28
    RH STROKE LIMIT STOP

    RH STROKE LIMIT STOP

    GU30526326
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £148.30
    0
  • 29
    O-RING

    O-RING

    GU03530522
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £4.38
    0
  • 30
    SUPPORT PLATE VALVE

    SUPPORT PLATE VALVE

    GU30530567
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £41.94
    0
  • 31
    DUST COVER

    DUST COVER

    GU03530524
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Replaced by

    DUST COVER D.45

    AP8163097
    Discontinued
    2 in stock
    N/A
    £26.97
    0
  • 32
    STOP RING

    STOP RING

    GU03530525
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Replaced by

    STOP RING D.63

    AP8163096
    Discontinued
    13 in stock
    N/A
    £5.85
    0
  • 33
    GASKET RING

    GASKET RING

    GU03530526
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Replaced by

    GASKET RING 45X58X11

    AP8163095
    5 in stock
    3 in stock
    £30.16
    £30.16
    0
    0
  • 34
    CUP

    CUP

    GU03530527
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Replaced by

    CUP 58X46X3

    AP8163094
    Discontinued
    14 in stock
    N/A
    £10.57
    0
  • 35
    UPPER BUSH

    UPPER BUSH

    GU03530528
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Replaced by

    BUSH

    AP8163093
    Discontinued
    Back order
    N/A
    £47.45
    0
  • 38
    WASHER

    WASHER

    GU30530568
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Replaced by

    SEAL WASHER

    AP8163175
    Discontinued
    Back order
    N/A
    £2.33
    0
  • 39
    SCREW

    SCREW

    GU30530569
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £5.65
    0
  • 40
    O-RING

    O-RING

    GU30530572
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Replaced by

    O-RING 21,95X1,78

    853989
    Discontinued
    Back order
    N/A
    £0.80
    0
  • 42
    SHOCK ABSORBER

    SHOCK ABSORBER

    GU30530574
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of
    Back order
    £235.50
    0
  • 43
    SHOCK ABSORBER

    SHOCK ABSORBER

    GU30530575
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £93.08
    0
  • 44
    LH PLUNGER, COMPLETE

    LH PLUNGER, COMPLETE

    GU30526426
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £476.03
    0
  • 45
    RH PLUNGER, COMPLETE

    RH PLUNGER, COMPLETE

    GU30526427
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £507.40
    0
  • 46
    CUP

    CUP

    GU03530508
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £9.91
    0
  • 47
    LOWER U-BOLT

    LOWER U-BOLT

    GU30500230
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £71.00
    0
  • 48
    UPPER U-BOLT

    UPPER U-BOLT

    GU30500630
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Replaced by

    UPPER U-BOLT

    AP8123185
    Discontinued
    Back order
    N/A
    £14.37
    0
  • 49
    SCREW

    SCREW

    GU30530576
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £1.51
    0
  • 50
    SCREW M8X30

    SCREW M8X30

    GU66530505
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Replaced by

    HEX SOCKET SCREW M8X30

    GU98682430
    Discontinued
    14 in stock
    N/A
    £0.53
    0
  • 51
    SCREW

    SCREW

    GU98620365
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £1.26
    0
  • 52
    LOWER PLATE

    LOWER PLATE

    GU30494026
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £758.43
    0
  • 53
    NUT

    NUT

    GU27530506
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Replaced by

    NUT

    AP8123512
    Discontinued
    5 in stock
    N/A
    £8.09
    0
  • 54
    CUP

    CUP

    GU27530505
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Replaced by

    CUP

    AP8123511
    Discontinued
    Back order
    N/A
    £6.97
    0
  • 55
    RUBBER SPACER

    RUBBER SPACER

    GU27530503
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £1.51
    0
  • 56
    PIPE

    PIPE

    GU27530504
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £12.13
    0
  • 57
    FORK UPPER PLATE

    FORK UPPER PLATE

    GU30493126
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Back order
    £773.81
    0
  • 58
    SCREW

    SCREW

    GU98622435
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of
    Replaced by

    SCREW M8X35

    AP8203590
    Discontinued
    10 in stock
    N/A
    £3.24
    0
  • 59
    WASHER

    WASHER

    GU27530510
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Replaced by

    WASHER

    AP8123843
    Discontinued
    1 in stock
    N/A
    £5.53
    0
  • 60
    NUT M20X1,5

    NUT M20X1,5

    GU30512830
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Replaced by

    PLUG

    AP8203251
    Discontinued
    4 in stock
    N/A
    £23.89
    0
  • 61
    ADJUSTER SCREW

    ADJUSTER SCREW

    GU30530577
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of 2000[02500N]
    Replaced by

    DOWEL+O-RING

    AP8163370
    Discontinued
    Back order
    N/A
    £31.89
    0
  • 62
    FRONT FORK

    FRONT FORK

    GU30490226
    more info + more info -
    Technical Specifications: See spare parts comm.n.025 of
    Back order
    £1,401.00
    0
