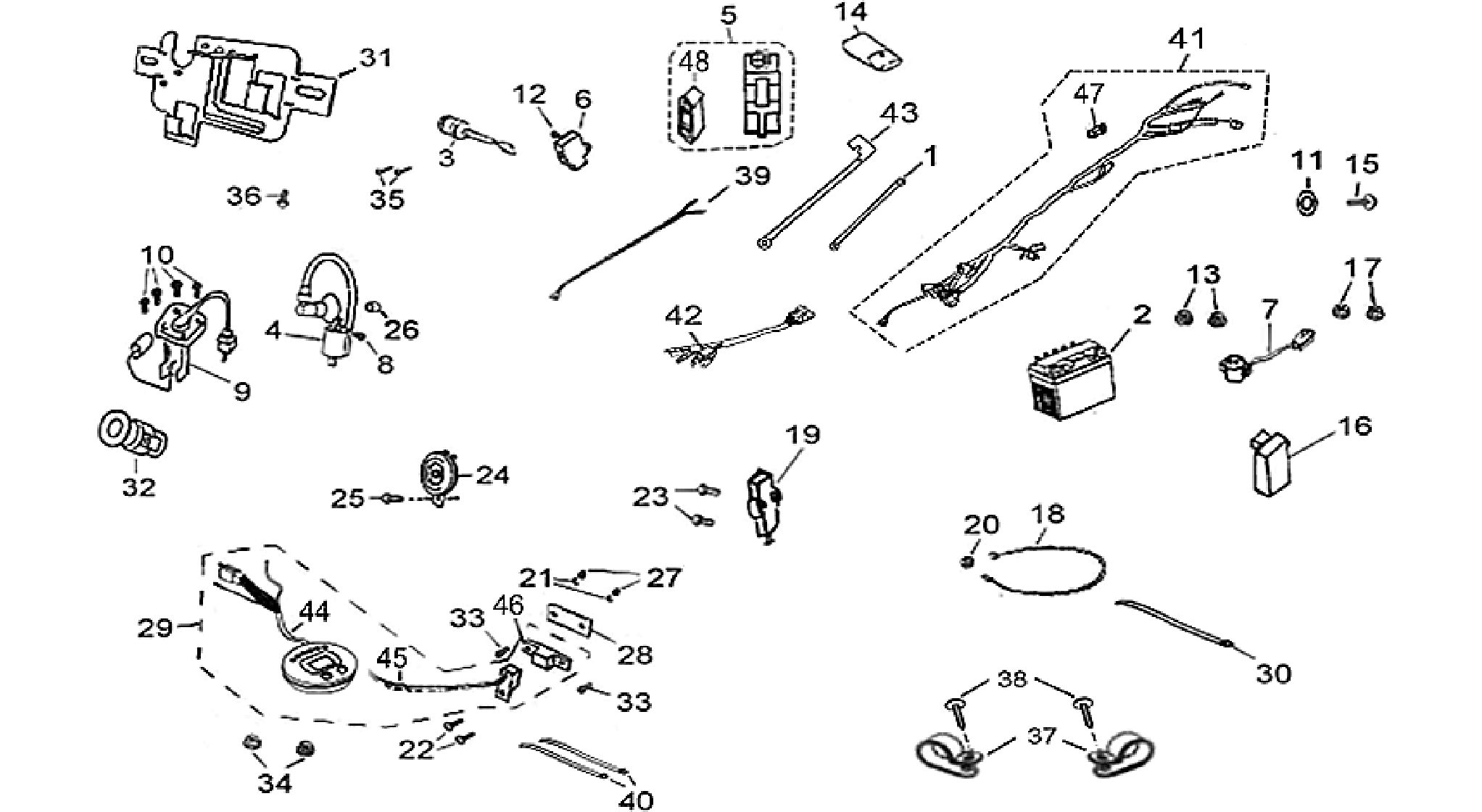

Aprilia Quasar 180 2004 Electrical system

Electrical system
Skip to results list
Position
Part Name
Stock
Price
  • 1
    GROUND-BATTERY LEAD

    GROUND-BATTERY LEAD

    AP8911187
    Back order
    £6.10
    0
  • 2
    BATTERY

    BATTERY

    AP8911248
    Back order
    £152.59
    0
  • 3
    MAIN SWITCH

    MAIN SWITCH

    AP8911519
    more info + more info -
    Technical Specifications: HP version[HP]
    Back order
    £3.29
    0
  • 3
    MAIN SWITCH

    MAIN SWITCH

    AP8911361
    Back order
    £32.79
    0
  • 4
    COIL CPL.

    COIL CPL.

    AP8910833
    Back order
    £73.40
    0
  • 5
    CDI UNIT ASSY

    CDI UNIT ASSY

    AP8910831
    Back order
    £179.38
    0
  • 6
    VOLTAGE REGULATOR

    VOLTAGE REGULATOR

    AP8911481
    4 in stock
    £58.37
    0
  • 7
    STARTER RELAY

    STARTER RELAY

    AP8910880
    Back order
    £47.10
    0
  • 8
    SCREW M5X20

    SCREW M5X20

    AP8911081
    Back order
    £0.31
    0
  • 9
    FUEL LEVEL SENSOR

    FUEL LEVEL SENSOR

    AP8911327
    Back order
    £39.29
    0
  • 10
    SCREW W/ FLANGE

    SCREW W/ FLANGE

    AP8910585
    Back order
    £0.17
    0
  • 11
    PLAIN WASHER 5X14X1

    PLAIN WASHER 5X14X1

    AP8910379
    Back order
    £0.06
    0
  • 12
    SCREW W/ FLANGE M6X12

    SCREW W/ FLANGE M6X12

    AP8910426
    Back order
    £0.34
    0
  • 13
    SCREW W/ FLANGE M6

    SCREW W/ FLANGE M6

    AP8910373
    Back order
    £0.20
    0
  • 14
    TOOLKIT

    TOOLKIT

    AP8910939
    Back order
    £12.25
    0
  • 15
    SCREW W/ FLANGE

    SCREW W/ FLANGE

    AP8910354
    Back order
    £0.47
    0
  • 16
    FLASHER UNIT ECU

    FLASHER UNIT ECU

    AP8911300
    Back order
    £31.86
    0
  • 17
    NUT M4

    NUT M4

    AP8911016
    Back order
    £0.20
    0
  • 18
    NEUTRAL INDICATOR SWITCH

    NEUTRAL INDICATOR SWITCH

    AP8911244
    Back order
    £51.21
    0
  • 19
    ENGINE STOP SWITCH

    ENGINE STOP SWITCH

    AP8910867
    Back order
    £115.81
    0
  • 20
    NUT M3

    NUT M3

    AP8910527
    Back order
    £0.05
    0
  • 21
    PLAIN WASHER 4X12X1

    PLAIN WASHER 4X12X1

    AP8911056
    Back order
    £0.05
    0
  • 22
    SCREW W/ FLANGE M3X10

    SCREW W/ FLANGE M3X10

    AP8911044
    Back order
    £1.09
    0
  • 23
    SCREW W/ FLANGE

    SCREW W/ FLANGE

    AP8910588
    Back order
    £0.40
    0
  • 24
    HORN

    HORN

    AP8910879
    Back order
    £34.32
    0
  • 26
    BUSHING

    BUSHING

    AP8911256
    Back order
    £1.51
    0
  • 27
    NUT

    NUT

    AP8910310
    more info + more info -
    Technical
    Back order
    £0.12
    0
  • 28
    PLATE

    PLATE

    AP8910872
    Back order
    £1.47
    0
  • 29
    DASHBOARD COMPLETE

    DASHBOARD COMPLETE

    AP8911279
    Back order
    £254.14
    0
  • 30
    HOSE CLAMP

    HOSE CLAMP

    AP8911021
    Back order
    £0.99
    0
  • 31
    FIXING PLATE

    FIXING PLATE

    AP8911299
    Back order
    £19.53
    0
  • 32
    BUZZER

    BUZZER

    AP8911257
    Back order
    £21.40
    0
  • 33
    SCREW W/ FLANGE M4X12

    SCREW W/ FLANGE M4X12

    AP8911040
    Back order
    £0.07
    0
  • 34
    NUT M6

    NUT M6

    AP8910372
    Back order
    £0.40
    0
  • 36
    SCREW W/ FLANGE

    SCREW W/ FLANGE

    AP8911442
    Back order
    £0.61
    0
  • 37
    FAIRLEAD

    FAIRLEAD

    AP8911294
    Back order
    £0.00
    0
  • 38
    SELF-TAP SCREW M3X8

    SELF-TAP SCREW M3X8

    AP8911447
    Back order
    £0.18
    0
  • 39
    RH TURN SIGN. CABLE

    RH TURN SIGN. CABLE

    AP8911421
    Back order
    £6.60
    0
  • 40
    HOSE CLAMP L200

    HOSE CLAMP L200

    AP8910324
    Back order
    £0.28
    0
  • 41
    MAIN WIRING HARNESS

    MAIN WIRING HARNESS

    AP8911362
    Back order
    £98.03
    0
  • 42
    MAIN WIRING HARNESS

    MAIN WIRING HARNESS

    AP8911363
    Back order
    £38.08
    0
  • 43
    BATTERY LEADS

    BATTERY LEADS

    AP8911249
    Back order
    £10.99
    0
  • 44
    DASHBOARD

    DASHBOARD

    AP8911278
    Back order
    £204.81
    0
  • 45
    MAGNETIC SENSOR

    MAGNETIC SENSOR

    AP8911455
    Back order
    £14.75
    0
  • 46
    SENSOR

    SENSOR

    AP8910874
    4 in stock
    £6.11
    0
  • 47
    FUSE 15A

    FUSE 15A

    AP8911146
    Back order
    £2.09
    0
  • 48
    RUBBER SPACER

    RUBBER SPACER

    AP8910832
    Back order
    £3.57
    0
