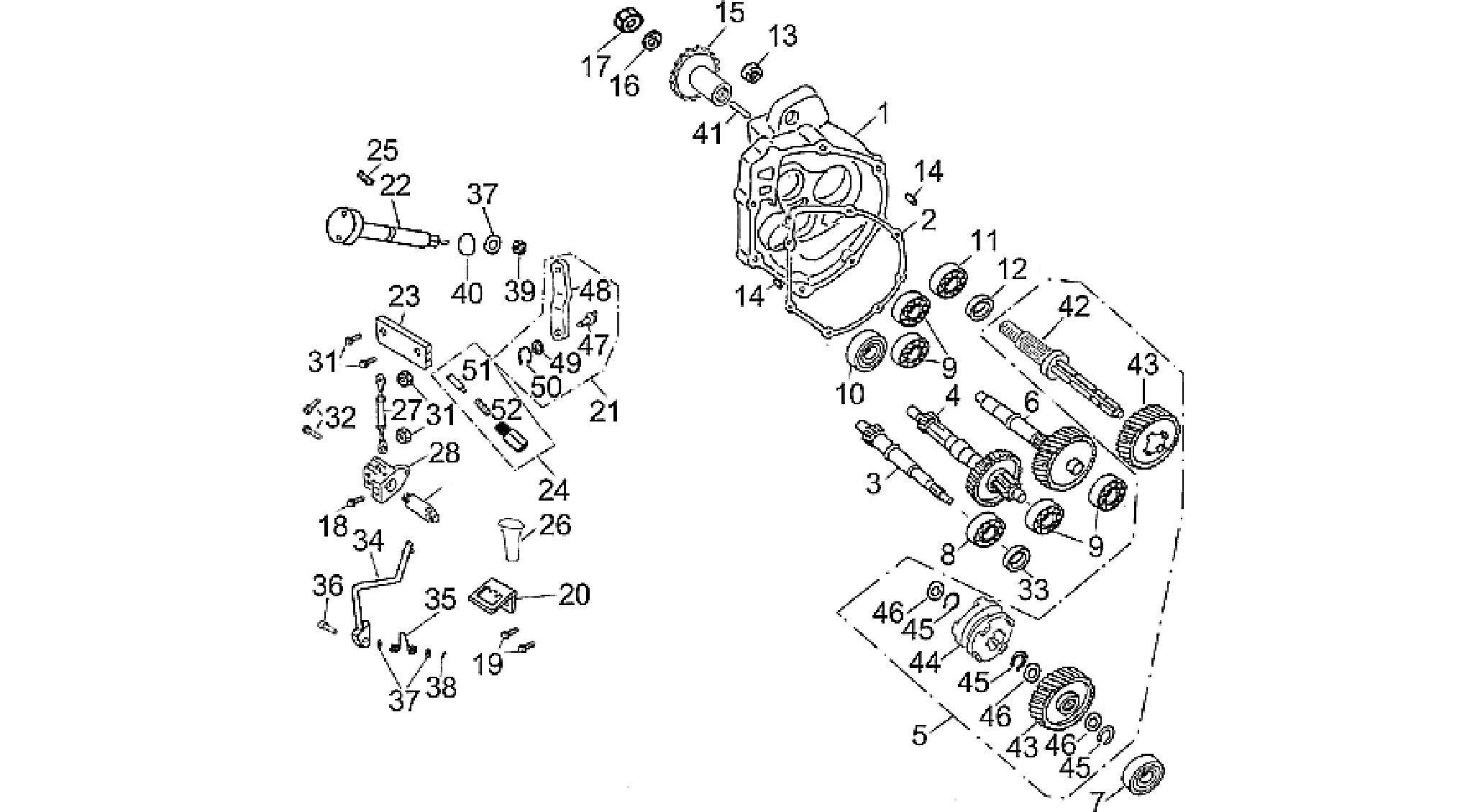

Aprilia Quasar 125-180 2003 Transmission

Transmission
Skip to results list
Position
Part Name
Stock
Price
  • 1
    TRANSMISSION COVER

    TRANSMISSION COVER

    AP8911184
    more info + more info -
    Technical Specifications: 125 cc version[125]
    Back order
    £129.22
    0
  • 1
    TRANSMISSION COVER

    TRANSMISSION COVER

    AP8911183
    more info + more info -
    Technical Specifications: 180 cc version[180]
    Back order
    £144.78
    0
  • 2
    COVER GASKET

    COVER GASKET

    AP8910769
    Back order
    £2.97
    0
  • 3
    DRIVE SHAFT

    DRIVE SHAFT

    AP8910798
    Back order
    £53.53
    0
  • 4
    DOUBLE GEAR

    DOUBLE GEAR

    AP8910799
    Back order
    £128.36
    0
  • 5
    REDUCTION

    REDUCTION

    AP8910807
    Back order
    £194.76
    0
  • 6
    INTERMEDIATE GEAR

    INTERMEDIATE GEAR

    AP8910801
    Back order
    £80.42
    0
  • 7
    BEARING CS05 6203

    BEARING CS05 6203

    AP8911115
    Back order
    £10.89
    0
  • 8
    BEARING C3 6204

    BEARING C3 6204

    AP8911116
    Back order
    £17.44
    0
  • 9
    BEARING CS05 6202

    BEARING CS05 6202

    AP8911114
    Back order
    £11.95
    0
  • 10
    BEARING TMB301

    BEARING TMB301

    AP8911118
    Back order
    £30.80
    0
  • 11
    BEARING 6004LU

    BEARING 6004LU

    AP8911112
    Back order
    £21.23
    0
  • 12
    OIL SEAL

    OIL SEAL

    AP8911137
    Back order
    £1.47
    0
  • 13
    SILENT-BLOCK 8X22X23

    SILENT-BLOCK 8X22X23

    AP8911127
    more info + more info -
    Technical Specifications: 180 cc version[180]
    2 in stock
    £8.54
    0
  • 13
    RUBBER SPACER 8X20X23

    RUBBER SPACER 8X20X23

    AP8911126
    more info + more info -
    Technical Specifications: 125 cc version[125]
    Back order
    £5.22
    0
  • 14
    PIN 8X14

    PIN 8X14

    AP8911071
    Back order
    £2.09
    0
  • 15
    GEAR 17T

    GEAR 17T

    AP8910808
    Back order
    £79.92
    0
  • 16
    PLAIN WASHER 16X29X3

    PLAIN WASHER 16X29X3

    AP8911065
    Back order
    £0.90
    0
  • 17
    NUT M16

    NUT M16

    AP8911017
    Back order
    £1.47
    0
  • 18
    SCREW W/ FLANGE M6X25

    SCREW W/ FLANGE M6X25

    AP8910431
    Back order
    £0.40
    0
  • 19
    SCREW W/ FLANGE

    SCREW W/ FLANGE

    AP8911085
    Back order
    £0.34
    0
  • 20
    SELECTOR

    SELECTOR

    AP8911217
    Back order
    £44.07
    0
  • 21
    GEAR CPL.

    GEAR CPL.

    AP8910753
    Back order
    £29.12
    0
  • 22
    GEARBOX LINKAGE ROD

    GEARBOX LINKAGE ROD

    AP8910756
    Back order
    £27.77
    0
  • 23
    PLATE

    PLATE

    AP8910757
    Back order
    £8.19
    0
  • 24
    GEARBOX SELECTOR

    GEARBOX SELECTOR

    AP8910758
    Back order
    £16.62
    0
  • 25
    SCREW

    SCREW

    AP8911022
    Back order
    £0.46
    0
  • 26
    KNOB

    KNOB

    AP8910765
    Back order
    £30.68
    0
  • 27
    TIE ROD

    TIE ROD

    AP8910759
    Back order
    £54.22
    0
  • 28
    FORK

    FORK

    AP8911218
    Back order
    £145.29
    0
  • 29
    PIN

    PIN

    AP8910761
    Back order
    £45.98
    0
  • 30
    SCREW W/ FLANGE M6X12

    SCREW W/ FLANGE M6X12

    AP8911083
    Back order
    £0.34
    0
  • 31
    NUT M6

    NUT M6

    AP8910311
    Back order
    £0.97
    0
  • 32
    HEX SOCKET SCREW M6X25

    HEX SOCKET SCREW M6X25

    AP8910333
    Back order
    £0.73
    0
  • 33
    OIL SEAL 20X32X6

    OIL SEAL 20X32X6

    AP8911135
    Back order
    £4.23
    0
  • 34
    GEAR LEVER

    GEAR LEVER

    AP8911219
    Back order
    £38.68
    0
  • 35
    SPRING

    SPRING

    AP8910763
    Back order
    £6.45
    0
  • 36
    PIN

    PIN

    AP8910764
    Back order
    £3.16
    0
  • 37
    PLAIN WASHER 8X16X1,5

    PLAIN WASHER 8X16X1,5

    AP8910385
    Back order
    £0.17
    0
  • 38
    SPLIT PIN

    SPLIT PIN

    AP8910404
    8 in stock
    £0.16
    0
  • 39
    SELF-LOCKING NUT M8

    SELF-LOCKING NUT M8

    AP8910313
    Back order
    £1.50
    0
  • 40
    O-RING 13,8X2,5

    O-RING 13,8X2,5

    AP8910339
    Back order
    £0.59
    0
  • 41
    SPACER

    SPACER

    AP8911192
    Back order
    £2.16
    0
  • 42
    DRIVE SHAFT

    DRIVE SHAFT

    AP8910800
    Back order
    £44.54
    0
  • 43
    REVERSAL GEAR

    REVERSAL GEAR

    AP8910802
    Back order
    £54.22
    0
  • 44
    COUPLING

    COUPLING

    AP8910830
    Back order
    £41.27
    0
  • 45
    STOP RING

    STOP RING

    AP8910804
    Back order
    £0.98
    0
  • 46
    SPECIAL WASHER

    SPECIAL WASHER

    AP8910803
    Back order
    £0.99
    0
  • 47
    FIXING PIN

    FIXING PIN

    AP8910754
    Back order
    £13.40
    0
  • 48
    GEARBOX LINKAGE ROD

    GEARBOX LINKAGE ROD

    AP8910755
    Back order
    £12.83
    0
  • 49
    SPECIAL WASHER

    SPECIAL WASHER

    AP8910805
    Back order
    £2.08
    0
  • 50
    STOP RING

    STOP RING

    AP8910806
    Back order
    £0.40
    0
  • 51
    PIN

    PIN

    AP8910767
    Back order
    £4.86
    0
  • 52
    SPRING

    SPRING

    AP8910768
    Back order
    £1.17
    0
