PRIMARY GEAR SHAFT 1 V.TA' - Z=10
ROLLER CAGE 20X24X10
GEAR 6 V.TA' Z=22
THRUST WASHER 24,2X27
CIRCLIP 24 MM
GEAR 3-4 V.TA' Z=19/16
THRUST WASHER 20,2X27,5
GEAR 5 V.TA' Z=21
GEAR 2 V.TA' Z=13
DRIVEN SHAFT
ROLLER CAGE 21X25X10
GEAR 2 V.TA' Z=30
THRUST WASHER 22X30X1,8
GEAR 5 V.TA' Z=23
GEAR 3 V.TA' Z=27
GEAR Z=25
GEAR 6 V.TA' Z=21
THRUST WASHER
GEAR 1 V.TA' Z=34
THRUST WASHER 17,2/30/1
O-RING 18X3,5
CIRCLIP AV 20
GEARSHIFT SHAFT+PAWL ASSY
SPRING
INDEX ASSY. LEVER
THRUST WASHER 12,5/21,5
INDEX SPRING
SPACER BUSH
SHIFT CAM
FORK 2-3 V.TA'
FORK 5-6 V.TA'
FORK 1-4 V.TÀ
FORK SHAFT
PINION Z=16
PINION
PINION Z=14
GEAR LEVER
LOCTITE ANTI SEIZE 50ML.15378
LITHIUM-BASE GREASE 250GR.

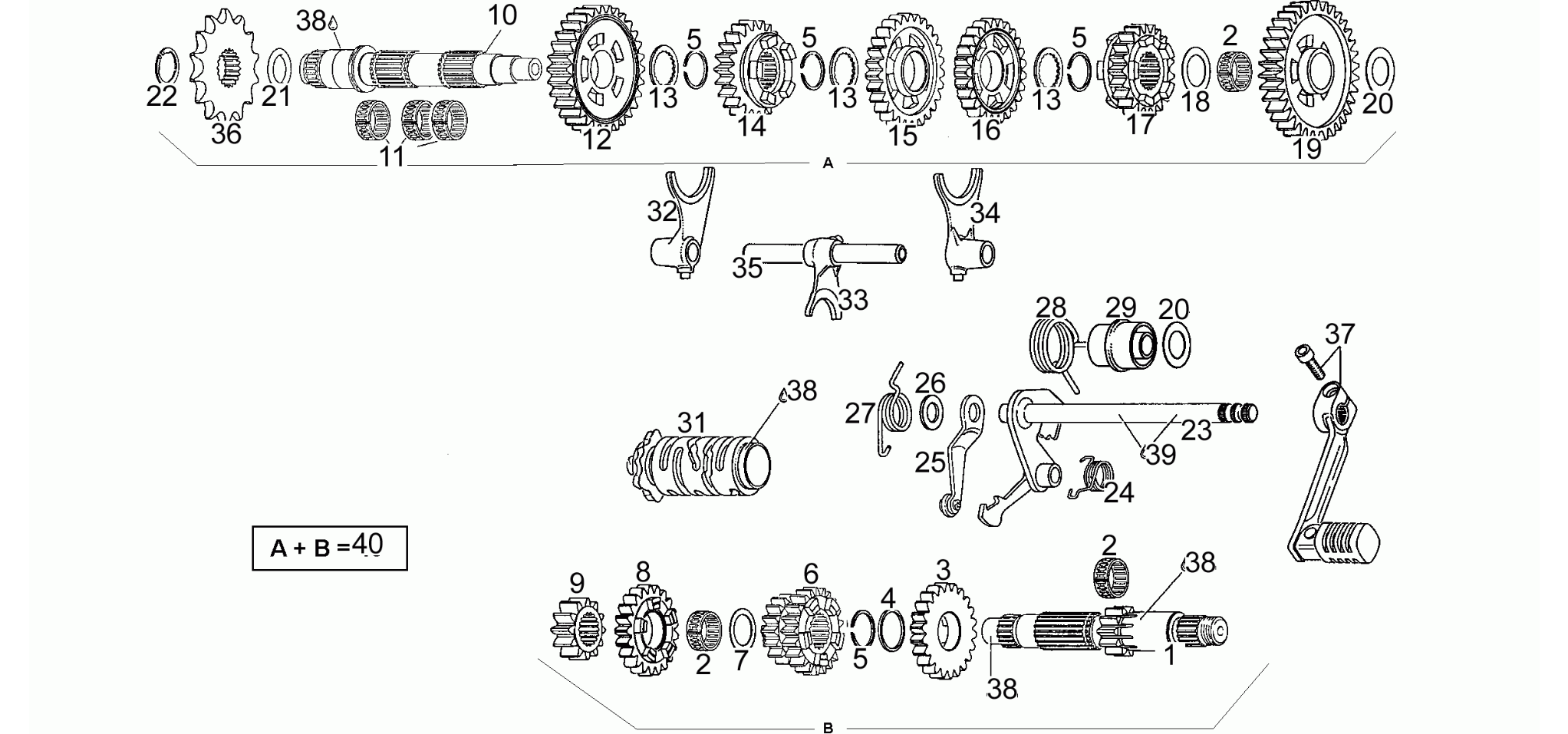

GEAR BOX ASSY
