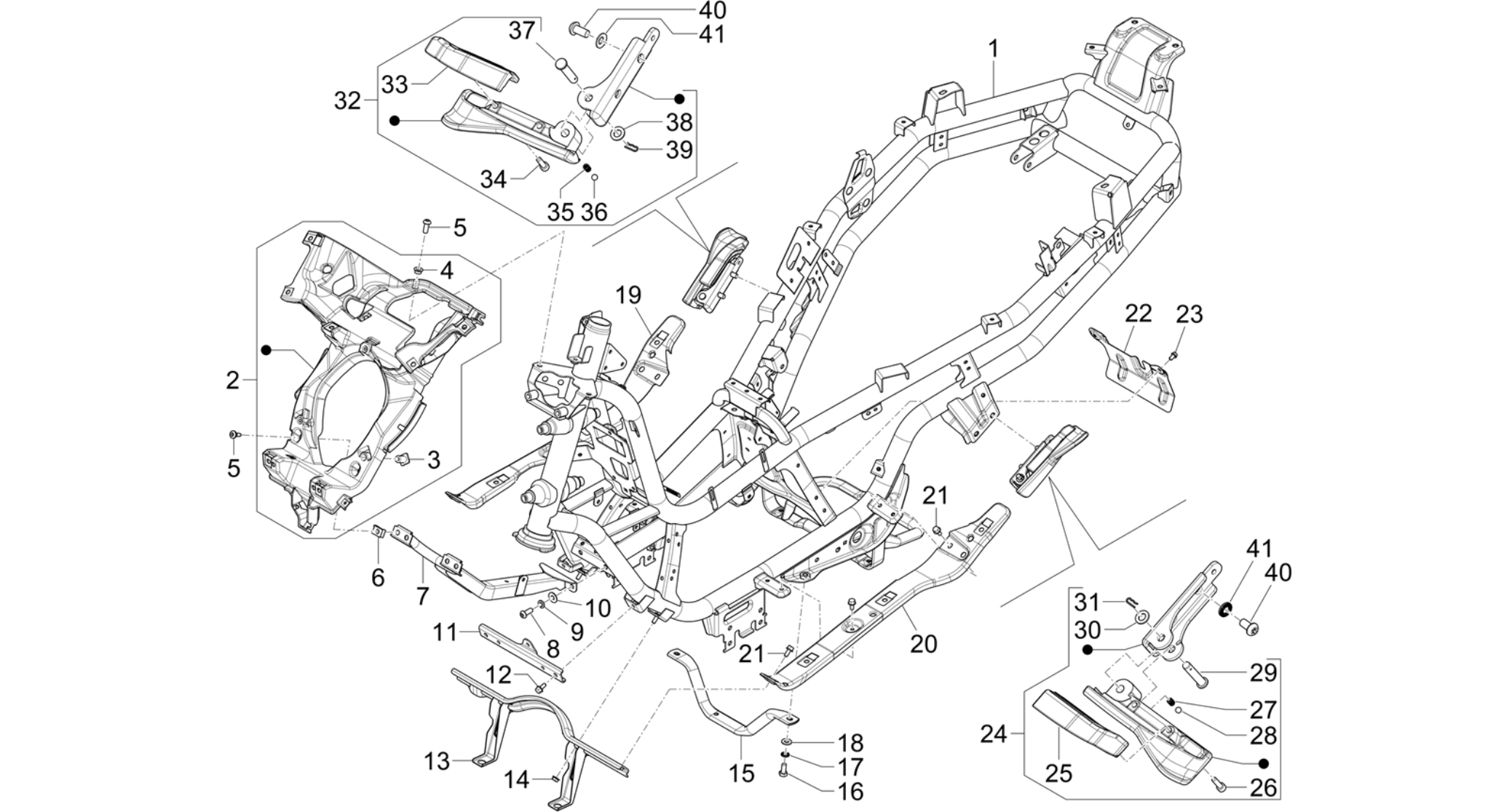

Piaggio MP3 530 HPE RST Exclusive E5 2022 (EMEA) Frame/bodywork

Frame/bodywork
Skip to results list
Position
Part Name
Stock
Price
  • 1
    FRAME ASSEMBLY

    FRAME ASSEMBLY

    1B0086535
    Back order
    £1,026.71
    0
  • 2
    FRONT FRAME

    FRONT FRAME

    1B010193
    Back order
    £130.23
    0
  • 3
    SPACER

    SPACER

    1B009932
    Back order
    £5.84
    0
  • 4
    FLANGED SPACER

    FLANGED SPACER

    1B009946
    Back order
    £2.33
    0
  • 6
    SPRING PLATE M8

    SPRING PLATE M8

    575268
    12 in stock
    £1.87
    0
  • 7
    FRONT SUB-CHASSIS WITH U.P.

    FRONT SUB-CHASSIS WITH U.P.

    1B0091235
    Back order
    £84.56
    0
  • 8
    OVAL HEAD TORX SCREW M8X20

    OVAL HEAD TORX SCREW M8X20

    2B002311
    Back order
    £1.94
    0
  • 9
    SPRING WASHER 13,75X8,15X4,5

    SPRING WASHER 13,75X8,15X4,5

    016408
    Replaced by

    SPRINGS WASHER

    667059
    Discontinued
    51 in stock
    N/A
    £1.02
    0
  • 10
    FLAT WASHER 8,4X20X1,5

    FLAT WASHER 8,4X20X1,5

    006032
    Back order
    £1.46
    0
  • 11
    UPPER RADIATOR CROSSBEAM

    UPPER RADIATOR CROSSBEAM

    1B0096515
    Back order
    £41.45
    0
  • 12
    FLANGED HEXAGON SCREW M6X14

    FLANGED HEXAGON SCREW M6X14

    B016426
    Back order
    £1.06
    0
  • 13
    RADIATOR SUPPORT FRAME

    RADIATOR SUPPORT FRAME

    1B0069494
    Back order
    £30.48
    0
  • 14
    SELF LOCKING NUT

    SELF LOCKING NUT

    597565
    50 in stock
    £0.83
    0
  • 15
    SMALL CARRIER CONNECTOR FRONT PIPE

    SMALL CARRIER CONNECTOR FRONT PIPE

    1B009653
    Back order
    £17.07
    0
  • 16
    SCREW M8X18 ZN

    SCREW M8X18 ZN

    031117
    Back order
    £2.01
    0
  • 17
    NOTCHED WASHER 14X8,3X1,8

    NOTCHED WASHER 14X8,3X1,8

    012540
    Back order
    £0.74
    0
  • 18
    FLAT WASHER 8,4X18X2

    FLAT WASHER 8,4X18X2

    003038
    21 in stock
    £0.94
    0
  • 19
    RIGHT FOOTREST SUPPORT CROSS PIN

    RIGHT FOOTREST SUPPORT CROSS PIN

    1B0092755
    Back order
    £24.39
    0
  • 20
    LEFT FOOTREST SUPPORT CROSS PIN

    LEFT FOOTREST SUPPORT CROSS PIN

    1B0092495
    Back order
    £24.39
    0
  • 22
    LOW TRANSVERSE DIAPHRAGM

    LOW TRANSVERSE DIAPHRAGM

    1B010343
    Back order
    £11.12
    0
  • 23
    SCREW W/ FLANGE M6X10

    SCREW W/ FLANGE M6X10

    969296
    9 in stock
    £1.06
    0
  • 24
    COMPLETE LEFT FOOTREST 1

    COMPLETE LEFT FOOTREST 1

    1B00645800090
    Back order
    £86.41
    0
  • 25
    LH REAR FOOTRESTS RUBBER

    LH REAR FOOTRESTS RUBBER

    656993
    Back order
    £10.28
    0
  • 26
    COUNTERSUNK CYLINDRICAL HEX HEAD SCREW M5X16

    COUNTERSUNK CYLINDRICAL HEX HEAD SCREW M5X16

    1C004839
    Back order
    £0.75
    0
  • 27
    PREMISPHERE SPRING

    PREMISPHERE SPRING

    2955909
    Back order
    £3.10
    0
  • 28
    BALL

    BALL

    2955916
    Back order
    £0.98
    0
  • 29
    PIN

    PIN

    975835
    Back order
    £0.32
    0
  • 30
    FLAT WASHER 15X8,4X1,5

    FLAT WASHER 15X8,4X1,5

    003058
    Back order
    £1.36
    0
  • 31
    ELASTIC SPRING

    ELASTIC SPRING

    259933
    Back order
    £0.52
    0
  • 32
    COMPLETE RIGHT FOOTREST

    COMPLETE RIGHT FOOTREST

    1B00646000090
    Back order
    £86.41
    0
  • 33
    RH REAR FOOTRESTS RUBBER

    RH REAR FOOTRESTS RUBBER

    656994
    Back order
    £10.28
    0
  • 40
    SCREW

    SCREW

    1B008127
    Back order
    £1.20
    0
  • 41
    SPRING WASHER 16X8,2X2,2

    SPRING WASHER 16X8,2X2,2

    834187
    39 in stock
    £0.86
    0
