Piaggio MP3 300 YOUrban LT ERL 2011 - 2016 (EMEA) Fork's components (Mingxing)

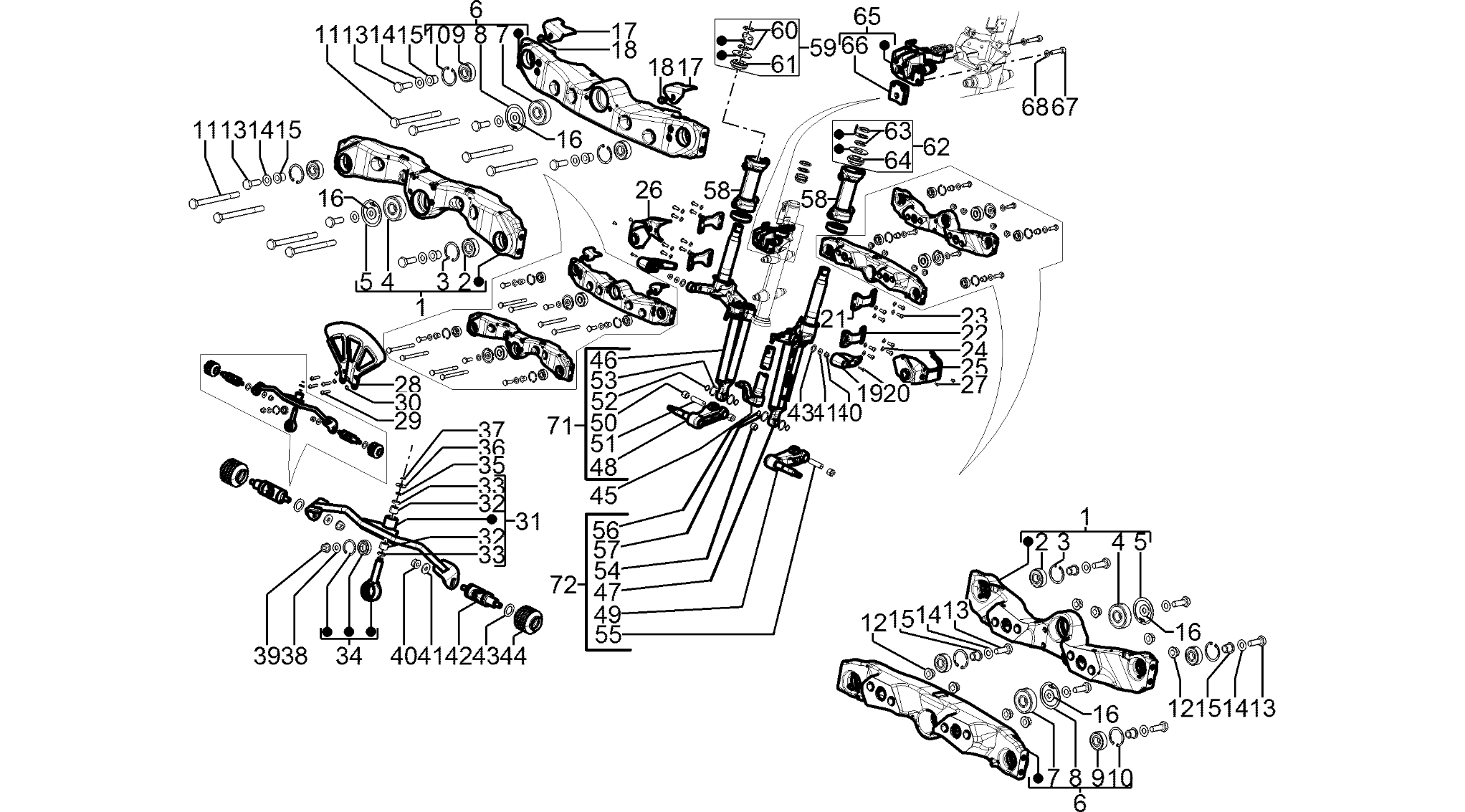

Fork's components (Mingxing)

Position

Part Name

Stock

Price

1

LOWER COMPLETE REAR SUSPENSION ARM

646556

Back order
£239.49

0
2

BALL BEARING

601345

4 in stock
£11.09

0
4

BALL BEARING

601467

2 in stock
£16.41

0
5

CIRCLIP

006647

72 in stock
£0.83

0
6

UPPER COMPLETE REAR SUSPENSION ARM

646561

Back order
£236.33

0
10

SNAP RING

006635

16 in stock
£1.36

0
11

SCREW

030113

Back order
£2.63

0
12

NUT

564878

Back order
£0.83

0
13

HEXAGON HEAD SCREW M10X30-6G (CH17)

031157

Back order
£1.02

0
14

SPRING WASHER

709646
Replaced by

WASHER

012535

Discontinued

19 in stock
N/A

£1.11

0
15

BUSHING

621288

Back order
£7.82

0
16

FLAT WASHER 22X10,3X2,5

178790

29 in stock
£1.36

0
17

BRAKE PIPING SLIDER

624854

Back order
£5.31

0
18

SCREW W/ FLANGE M6X10

969296

9 in stock
£1.06

0
19

CARDAN JOINT SMALL COVER

666200

Back order
£15.79

0
20

SCREW M5X22

828662

11 in stock
£1.11

0
21

SUSPENSION ARM CONNECTION BRACKET

646543

Back order
£23.75

0
22

SUSPENSION ARM CONNECTION BRACKET

666373

Back order
£46.94

0
23

SCREW

975855

Back order
£1.02

0
24

SPRING WASHER 8,6X15X0,8

709047

31 in stock
£0.58

0
25

LH COVER

666252

Back order
£11.81

0
26

RH COVER

666289

Back order
£11.81

0
27

SCREW

842420
Replaced by

SCREW

833569

Discontinued

44 in stock
N/A

£0.43

0
28

ANTI-TILTING DISC

665588

Back order
£69.68

0
29

SCREW M8X30

599208

9 in stock
£2.01

0
31

COMPLETE STEERING CONTROL TIE ROD.

622744

Back order
£144.66

0
32

D.C.BEARING

167016

Back order
£3.59

0
33

RING

167018

Back order
£2.43

0
34

STEERING TUBE CONTROL AXIS

622751

Back order
£56.90

0
35

O-RING 8,73X1,78-VITON

224202

2 in stock
£0.85

0
36

FLAT WASHER 8,4X20X1,5

006032

Back order
£1.46

0
37

SAFETY WASHER

006408

53 in stock
£0.87

0
38

FLAT WASHER 8,4X18X2

003038

21 in stock
£0.94

0
39

NUT M8X1,25

967363

Back order
£1.06

0
41

PLAIN WASHER 8,2X20X2,5

013861

36 in stock
£1.13

0
42

COMPLETE CARDAN JOINT

666901

Back order
£216.60

0
43

WASHER 16.2X25X1.5

666546

4 in stock
£3.73

0
44

PROTECTIVE SLEEVE

666244

Back order
£8.58

0
45

STEERING CONTROL TUBE WITH I.P.

667831

Back order
£331.68

0
45

STEERING CONTROL TUBE WITH I.P.

666766

Back order
£146.06

0
46

LEFT STEERING TUBE WITH I.P.

58594R5

Back order
£245.58

0
47

RIGHT STEERING TUBE WITH I.P.

58595R5

Back order
£245.58

0
48

SUSPENSION ARM WITH I.P.

6483975

Back order
£81.35

0
49

RIGHT SUSPENSION ARM

6483985

Back order
£80.62

0
50

ROLLER CAGE

198513

Back order
£12.85

0
51

PISTON PIN

177451

Back order
£18.90

0
52

OIL SEAL

119219

8 in stock
£1.31

0
53

GASKET

006731

Back order
£0.79

0
58

LATERAL HEADSTOCK WITH U.P.

647214

Back order
£60.88

0
59

STEERING BEARING ASSY. R.H.

6471835

Back order
£57.12

0
60

STEERING TUBE RING NUT

0111094

1 in stock
£9.83

0
61

UPPER THRUST RING

600750

1 in stock
£15.09

0
62

STEERING BEARING ASSY. L.H.

6007705

Back order
£54.93

0
65

MECHANICAL BRAKE PIN

649090

Back order
£138.83

0
66

BRAKE PADS COUPLE

648476

3 in stock
£29.07

0
67

SCREW M8X35

598921

29 in stock
£0.87

0
71

LEFT COMPLETE STEERING TUBE

6501645

Back order
£779.87

0
72

RIGHT PART COMPLETE STEERING TUBE

6504255

Back order
£779.87

0
