Piaggio MP3 300 4T 4V ie LT Ibrido 2010-2011 (EMEA) Helmet huosing - Undersaddle

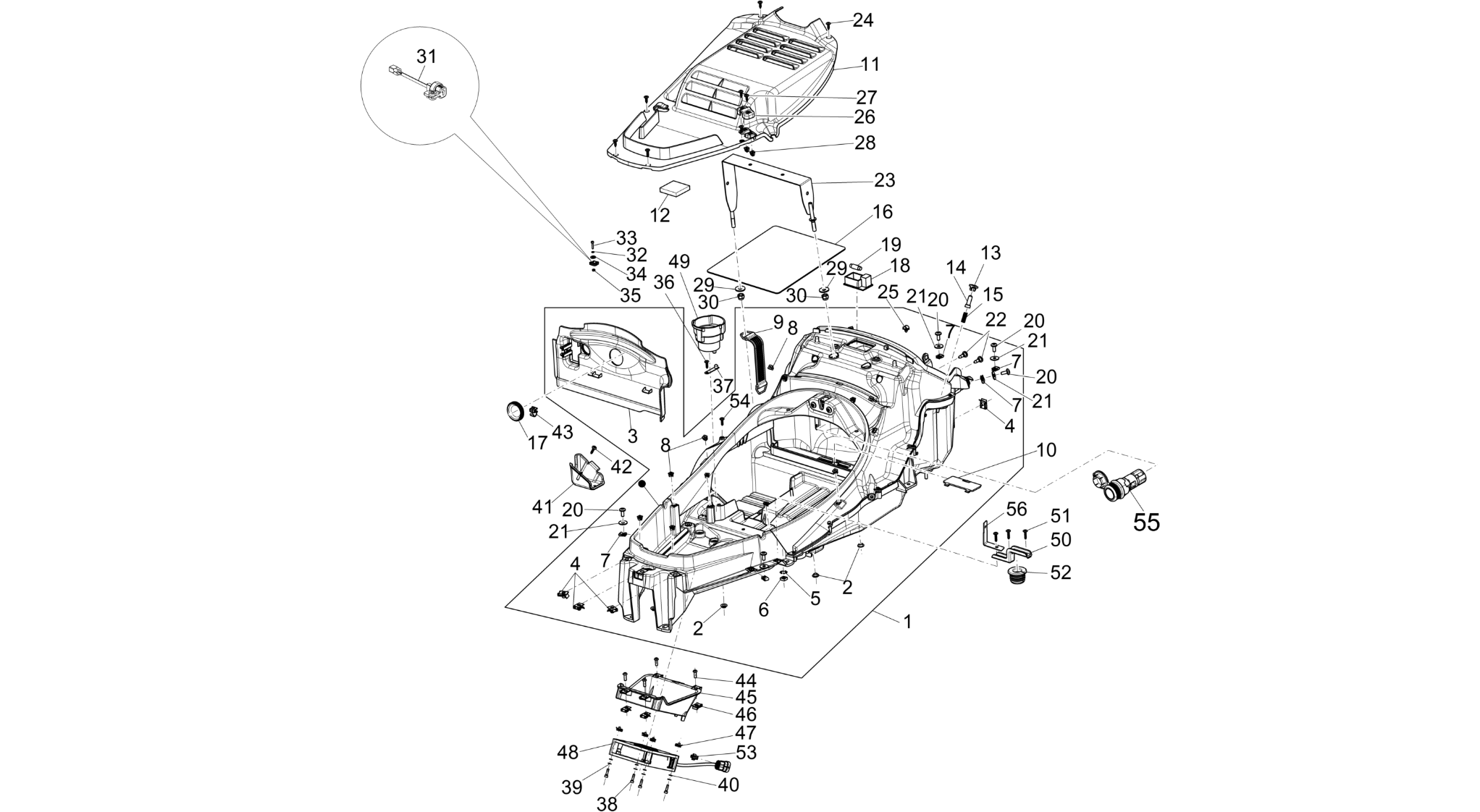

Helmet huosing - Undersaddle

Position

Part Name

Stock

Price

1

COMPLETE HELMET COMPARTMENT

654790

Back order
£170.26

0
2

KNURLED BUSHING

830056

8 in stock
£1.06

0
3

HELMET COMPARTMENT INTERNAL BULKHEAD

654788

Out of stock
£0.00
5

STOP RING

829377

Back order
£16.10

0
6

NUT FOR REAR BRAKE LEVE

709041

Back order
£0.37

0
9

STRIP

090854

Back order
£10.53

0
10

TYPE-TESTING INSPECTION DOOR

576793

Back order
£7.40

0
11

COMPLETE HELMET COMPARTMENT CLOSING

654793

Back order
£72.06

0
12

CONDUCTIVE BUFFER

641834

Back order
£43.55

0
13

MAINTENANCE

621098

Back order
£2.14

0
14

BUTTON

621097

Back order
£3.09

0
15

SPRING

621099

Back order
£1.79

0
16

BATTERY MATT

656291

Back order
£8.02

0
17

COVER

483859

77 in stock
£1.55

0
18

CEILING BOWL

293154

1 in stock
£11.91

0
19

TORPEDO SHAPED LAMP 12V-5W

071633

Back order
£7.13

0
20

TORX HEAD CYLINDER HEAD SCREW M6X16

CM179301

Back order
£0.95

0
21

WASHER

297029

Back order
£1.06

0
22

TORX HEAD CYLINDER HEAD SCREW M6X22

CM179201

11 in stock
£0.47

0
23

BATTERY BRACKET WITH U.P.

654789

Back order
£51.55

0
24

CROSS HEAD CYLINDER HEAD SCREW M4,2X13

259349

10 in stock
£0.66

0
24

SELF TAPPING SCREW M4.2X16

CM178601

Back order
£1.02

0
25

SPRING

140435

Back order
£0.83

0
26

FASTENER CABLE

655708

Back order
£10.30

0
28

EXPANSION PLUG

199190
Replaced by

EXPANSION PLUG

157716

50 in stock

44 in stock
£0.14

£0.13

0

0
29

WASHER

709077

Back order
£0.51

0
30

LOW SELF-LOCKING NUT M8

709052

Back order
£0.93

0
31

END OF THE STROKE SWITCH

640063

Back order
£57.06

0
32

WASHER

006963

Back order
£0.62

0
33

SCREW M3X20

AP8121577

Back order
£1.92

0
34

WASHER

003053

24 in stock
£0.70

0
35

NUT M 3

020003

Back order
£0.71

0
36

TBCIC SCREW 3,8X16

270793

60 in stock
£0.43

0
37

SPRING

464620

Back order
£4.10

0
38

HEX SOCKET SCREW M4X16

959559

Back order
£1.06

0
39

SPRING WASHER 4,2X7,6X0,9

016404

Out of stock
£0.00
40

WASHER 4,3X8X0,5

003054

Back order
£1.31

0
41

CABLE HARNESS CROSS CLOSING

655707

Back order
£12.18

0
42

SELF TAPPING SCREW M3X20

258146

130 in stock
£0.53

0
43

SHEET EDGE SPRING

CM013203

4 in stock
£1.82

0
44

SCREW

842041
Replaced by

HEXAGON SOCKET BUTTON HEAD SCREW

650902

5 in stock

Back order
£0.81

£0.59

0

0
45

COMPLETE ELECTRICAL DUCT

654786

Back order
£39.31

0
46

SPRING PLATE M5

248419

1 in stock
£1.66

0
47

SCHEIBE

959263

Back order
£1.27

0
48

BRUSH-LESS ELECTRIC FAN ASSEMBLY

58217R5

Back order
£200.59

0
49

RECHARGE PLUG HOUSING

654779

Back order
£25.26

0
50

CABLE HARNESS BRACKET

655709

Back order
£10.68

0
52

MOTOR PHASE CABLE GROMMET

654783

Back order
£5.67

0
53

CLIP

639560

Back order
£2.98

0
54

SCREW

640939

Back order
£1.02

0
55

LV SOCKET 12V

294770

10 in stock
£21.62

0
56

CONNECTOR BRACKET

641828

Back order
£16.33

0
