Piaggio MP3 250 ie LT 2008-2009 (EMEA) Control pedals - Levers

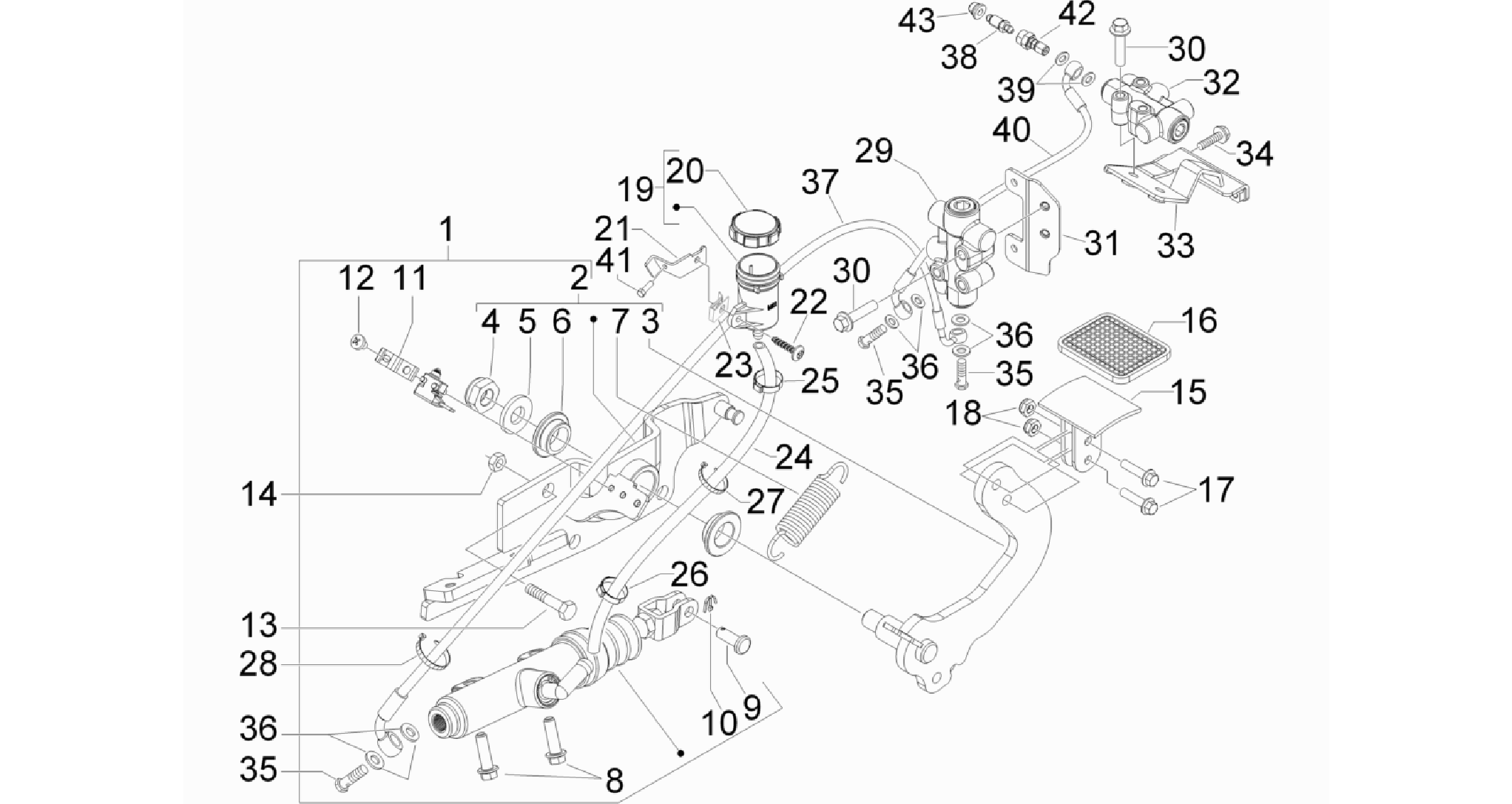

Control pedals - Levers
Skip to results list
Position
Part Name
Stock
Price
  • 1
    BRAKE PEDAL COMPLETE WITH PUMP

    BRAKE PEDAL COMPLETE WITH PUMP

    650774
    Back order
    £182.61
    0
  • 2
    PUMP SUPPORT BRACKET COMPLETE WITH PEDAL

    PUMP SUPPORT BRACKET COMPLETE WITH PEDAL

    651111
    Back order
    £54.68
    0
  • 3
    PEDAL OF THE BRAKE WITH U.P.

    PEDAL OF THE BRAKE WITH U.P.

    650655
    Back order
    £19.32
    0
  • 4
    SELF LOCKING NUT M10-6H (CH17)

    SELF LOCKING NUT M10-6H (CH17)

    002440
    28 in stock
    £0.84
    0
  • 5
    FLAT WASHER 22X10,3X2,5

    FLAT WASHER 22X10,3X2,5

    178790
    29 in stock
    £1.36
    0
  • 6
    BUSH

    BUSH

    650636
    Back order
    £8.20
    0
  • 7
    SPRING

    SPRING

    650670
    Back order
    £3.81
    0
  • 8
    HEXAGON HEAD SCREW M6X20

    HEXAGON HEAD SCREW M6X20

    018639
    Back order
    £2.06
    0
  • 9
    PIN

    PIN

    650651
    Back order
    £10.72
    0
  • 10
    SPLIT PIN

    SPLIT PIN

    012761
    Back order
    £0.58
    0
  • 11
    SPRING

    SPRING

    650646
    Back order
    £9.47
    0
  • 12
    CROSS HEAD CYLINDER HEAD SCREW M4X6

    CROSS HEAD CYLINDER HEAD SCREW M4X6

    018644
    48 in stock
    £1.06
    0
  • 13
    HEX SOCKET SCREW M8X16

    HEX SOCKET SCREW M8X16

    031116
    2 in stock
    £1.57
    0
  • 14
    LOW SELF-LOCKING NUT M8

    LOW SELF-LOCKING NUT M8

    709052
    Back order
    £0.93
    0
  • 15
    PEDAL FORK WITH U.P.

    PEDAL FORK WITH U.P.

    650711
    Back order
    £26.60
    0
  • 16
    BRAKE PEDAL RUBBER

    BRAKE PEDAL RUBBER

    228793
    Back order
    £7.42
    0
  • 17
    SCREW

    SCREW

    582469
    Back order
    £1.00
    0
  • 18
    SELF LOCKING NUT M6

    SELF LOCKING NUT M6

    195482
    Back order
    £1.06
    0
  • 19
    BRAKE OIL TANK

    BRAKE OIL TANK

    274598
    Back order
    £54.87
    0
  • 20
    COVER

    COVER

    498431
    Back order
    £20.76
    0
  • 21
    OIL TANK CONNECTOR BRACKET WITH U.P.

    OIL TANK CONNECTOR BRACKET WITH U.P.

    650676
    Back order
    £12.73
    0
  • 22
    CROSS HEAD CYLINDER HEAD SCREW M4,2X13

    CROSS HEAD CYLINDER HEAD SCREW M4,2X13

    259349
    10 in stock
    £0.66
    0
  • 23
    SPRING PLATE

    SPRING PLATE

    CM017409
    29 in stock
    £1.68
    0
  • 24
    ANTI-TILTING DEVICE OIL PUMP TANK RETURN PIPE

    ANTI-TILTING DEVICE OIL PUMP TANK RETURN PIPE

    650772
    Back order
    £22.62
    0
  • 25
    HOSE CLAMP

    HOSE CLAMP

    CM002905
    Replaced by

    HOSE CLAMP

    CM002904
    23 in stock
    50 in stock
    £0.41
    £0.41
    0
    0
  • 26
    HOSE CLAMP

    HOSE CLAMP

    CM002907
    1 in stock
    £0.95
    0
  • 27
    LOCK-STRAP L=180 MM

    LOCK-STRAP L=180 MM

    145298
    13 in stock
    £0.95
    0
  • 28
    LOCK-STRAP L=277 MM

    LOCK-STRAP L=277 MM

    257134
    Back order
    £0.39
    0
  • 29
    REAR PRESSURE ADJUSTMENT VALVE

    REAR PRESSURE ADJUSTMENT VALVE

    CM082802
    Back order
    £153.24
    0
  • 30
    SCREW W/ FLANGE M6X40

    SCREW W/ FLANGE M6X40

    414834
    13 in stock
    £0.32
    0
  • 31
    BRACKET WITH U.P.

    BRACKET WITH U.P.

    650625
    Back order
    £12.50
    0
  • 32
    FRONT PRESSURE ADJUSTMENT VALVE.

    FRONT PRESSURE ADJUSTMENT VALVE.

    CM082803
    Back order
    £109.55
    0
  • 33
    DISTRIBUTION FRAME SUPPORT BRACKET WITH U.P.

    DISTRIBUTION FRAME SUPPORT BRACKET WITH U.P.

    650648
    Back order
    £22.45
    0
  • 34
    SCREW W/ FLANGE M6X16

    SCREW W/ FLANGE M6X16

    434541
    20 in stock
    £0.33
    0
  • 35
    OIL PIPE SCREW M10X18

    OIL PIPE SCREW M10X18

    265451
    5 in stock
    £4.10
    0
  • 36
    WASHER

    WASHER

    127927
    25 in stock
    £0.86
    0
  • 37
    BREAK PIPES

    BREAK PIPES

    650720
    Back order
    £40.57
    0
  • 38
    BLEED SCREW

    BLEED SCREW

    651461
    Back order
    £10.75
    0
  • 40
    BREAK PIPES

    BREAK PIPES

    650721
    Back order
    £54.38
    0
  • 41
    HEX SOCKET SCREW

    HEX SOCKET SCREW

    122675
    Back order
    £0.32
    0
  • 42
    JOINT

    JOINT

    597033
    Back order
    £22.62
    0
  • 43
    CAP

    CAP

    651462
    Back order
    £5.84
    0
