Piaggio MP3 125 2006-2008 (EMEA) Cylinder-piston-wrist pin unit

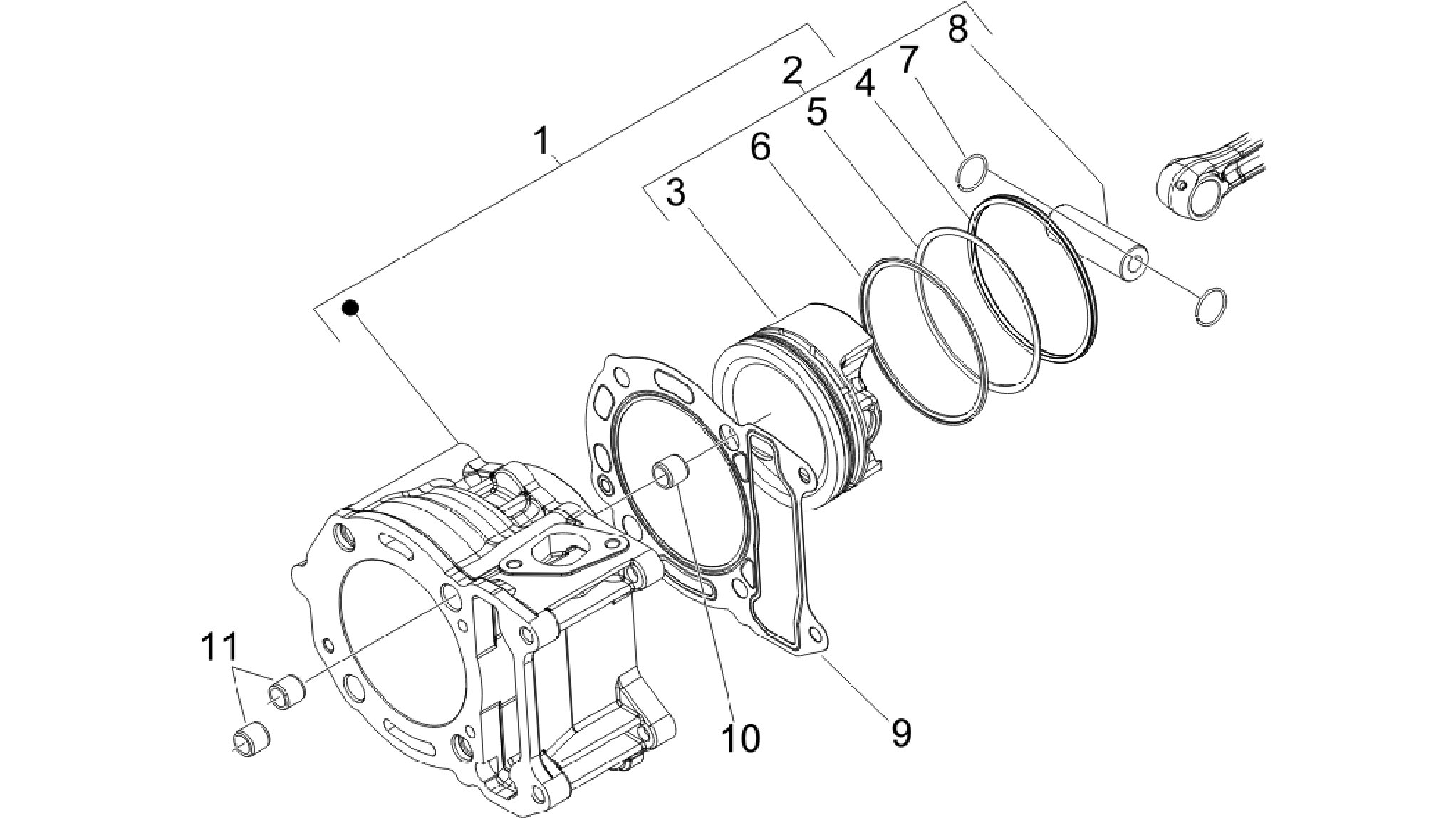

Cylinder-piston-wrist pin unit
Skip to results list
Position
Part Name
Stock
Price
  • 1
    CYLINDER - PISTON - PIN - PARTS- RINGS ASSEMBLY

    CYLINDER - PISTON - PIN - PARTS- RINGS ASSEMBLY

    840566
    Back order
    £160.15
    0
  • 1
    CYLINDER - PISTON - PIN - PARTS- RINGS ASSEMBLY

    CYLINDER - PISTON - PIN - PARTS- RINGS ASSEMBLY

    1A007784
    Back order
    £198.04
    0
  • 2
    PISTON-WRIST PIN ASSY.

    PISTON-WRIST PIN ASSY.

    8284665004
    Back order
    £102.69
    0
  • 2
    PISTON-WRIST PIN ASSY.

    PISTON-WRIST PIN ASSY.

    8284665003
    Back order
    £102.69
    0
  • 2
    PISTON-WRIST PIN ASSY.

    PISTON-WRIST PIN ASSY.

    8284665002
    Back order
    £102.69
    0
  • 2
    PISTON-WRIST PIN ASSY.

    PISTON-WRIST PIN ASSY.

    8284665001
    Back order
    £73.42
    0
  • 2
    PISTON ASSY 125CC 3M

    PISTON ASSY 125CC 3M

    828465
    Back order
    £102.69
    0
  • 2
    PISTON ASSY 125CC 2M

    PISTON ASSY 125CC 2M

    828464
    Back order
    £102.69
    0
  • 2
    PISTON-WRIST PIN ASSY.

    PISTON-WRIST PIN ASSY.

    828463
    Back order
    £102.21
    0
  • 3
    ***PISTON

    ***PISTON

    828313
    Back order
    £50.19
    0
  • 3
    ***PISTON

    ***PISTON

    828312
    Back order
    £50.57
    0
  • 3
    ***PISTON

    ***PISTON

    828311
    Back order
    £76.07
    0
  • 3
    PISTON

    PISTON

    828310
    Back order
    £24.96
    0
  • 4
    OIL SCRAPER RING D.57X1

    OIL SCRAPER RING D.57X1

    486362
    11 in stock
    £32.58
    0
  • 4
    57X2,5

    57X2,5

    1A007264
    Back order
    £15.58
    0
  • 5
    OIL SCRAPER RING D.57X2,5

    OIL SCRAPER RING D.57X2,5

    485914
    9 in stock
    £16.69
    0
  • 5
    OIL SCRAPER RING 57X1

    OIL SCRAPER RING 57X1

    1A007265
    Back order
    £15.58
    0
  • 6
    COMPRESSION RING D.57X1

    COMPRESSION RING D.57X1

    485779
    18 in stock
    £18.14
    0
  • 6
    OIL SCRAPER RING 57X1

    OIL SCRAPER RING 57X1

    1A007266
    Back order
    £16.36
    0
  • 7
    SNAP RING

    SNAP RING

    963486
    182 in stock
    £0.48
    0
  • 8
    PISTON PIN

    PISTON PIN

    482335
    11 in stock
    £11.53
    0
  • 9
    CYLINDER BASE GASKET 0,8 MM

    CYLINDER BASE GASKET 0,8 MM

    828148
    Replaced by

    CYLINDER BASE GASKET 0,8 MM

    875114
    4 in stock
    8 in stock
    £2.66
    £12.01
    0
    0
  • 9
    CYLINDER BASE GASKET 0,6 MM

    CYLINDER BASE GASKET 0,6 MM

    828147
    Replaced by

    CYLINDER BASE GASKET 0,6 MM

    875113
    6 in stock
    Back order
    £2.41
    £11.90
    0
    0
  • 9
    CYLINDER BASE GASKET 0,4 MM

    CYLINDER BASE GASKET 0,4 MM

    828146
    Replaced by

    CYLINDER BASE GASKET 0,4 MM

    875112
    5 in stock
    19 in stock
    £2.41
    £12.22
    0
    0
  • 10
    LOCATING DOWEL Ø7,5X12

    LOCATING DOWEL Ø7,5X12

    277916
    29 in stock
    £5.30
    0
  • 11
    LOCATING DOWEL Ø11X10

    LOCATING DOWEL Ø11X10

    478115
    19 in stock
    £0.38
    0
