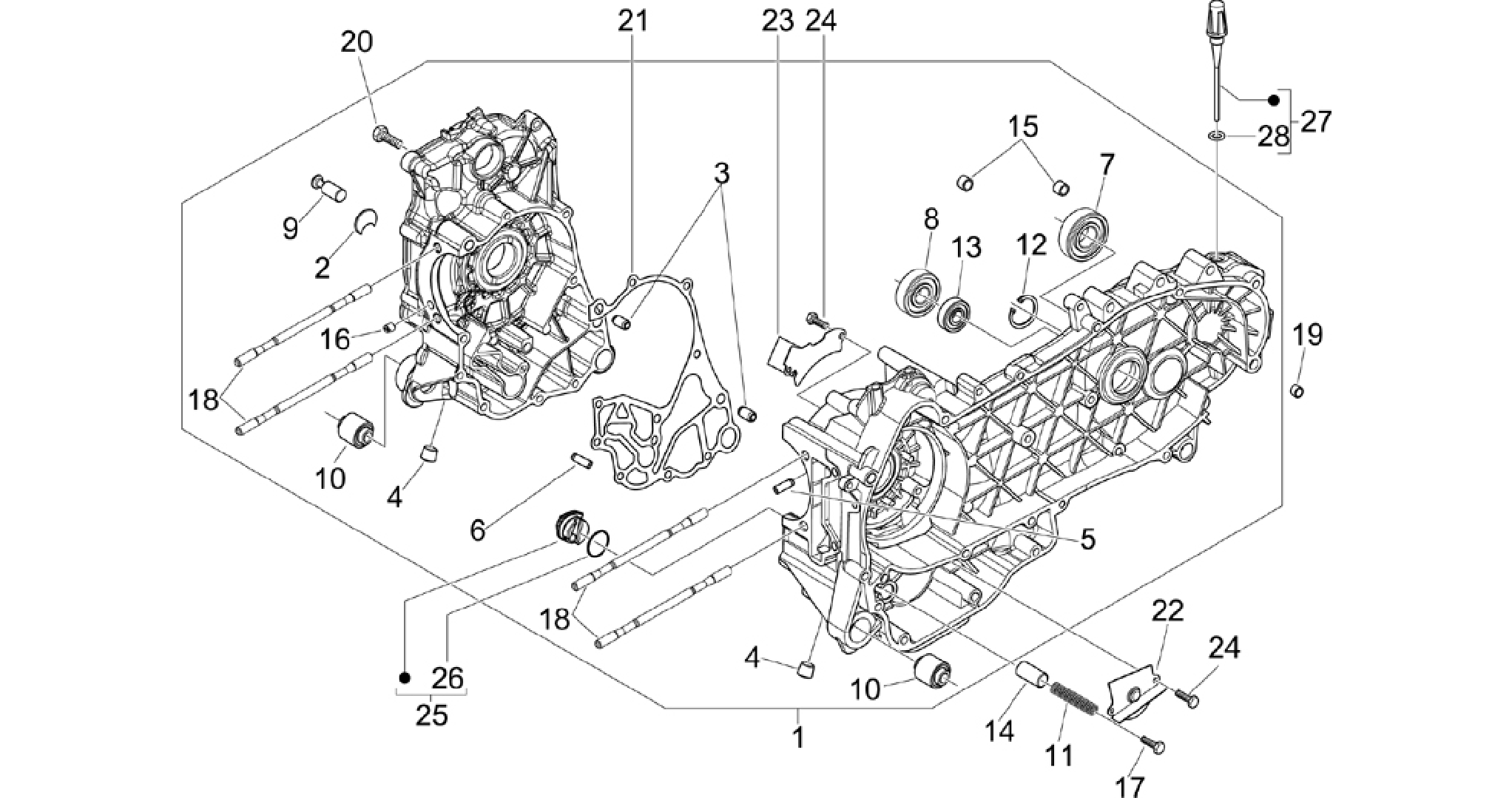

Piaggio X7 250 ie Euro 3 2008 (EMEA) Crankcase

Crankcase
Skip to results list
Position
Part Name
Stock
Price
  • 1
    CRANKSHAFT CPL.,CAT.1

    CRANKSHAFT CPL.,CAT.1

    8462415002
    Back order
    £423.04
    0
  • 1
    CRANKSHAFT CPL.,CAT.1

    CRANKSHAFT CPL.,CAT.1

    8462415001
    Back order
    £511.87
    0
  • 2
    CUP

    CUP

    840489
    13 in stock
    £1.02
    0
  • 3
    PIN 6,5X9,5X15

    PIN 6,5X9,5X15

    239388
    46 in stock
    £0.63
    0
  • 4
    PLUG M12X1,5

    PLUG M12X1,5

    411311
    12 in stock
    £1.20
    0
  • 5
    NOZZLE

    NOZZLE

    484034
    9 in stock
    £6.73
    0
  • 7
    RADIAL BALL BEARING 15X42X13

    RADIAL BALL BEARING 15X42X13

    485912
    15 in stock
    £18.23
    0
  • 8
    RADIAL BALL BEARING 20X47X14

    RADIAL BALL BEARING 20X47X14

    833701
    1 in stock
    £8.63
    0
  • 9
    SPRINGS FIXING PIN

    SPRINGS FIXING PIN

    483785
    26 in stock
    £3.99
    0
  • 10
    ENGINE SUPPORT SILENT-BLOCK

    ENGINE SUPPORT SILENT-BLOCK

    486081
    16 in stock
    £8.04
    0
  • 11
    OIL PRESSURE VALVE SPRING

    OIL PRESSURE VALVE SPRING

    485655
    18 in stock
    £0.93
    0
  • 12
    CIRCLIP 25X26.9X1.2

    CIRCLIP 25X26.9X1.2

    000674
    68 in stock
    £0.96
    0
  • 13
    GASKET RING

    GASKET RING

    82539R
    2 in stock
    £3.04
    0
  • 14
    OIL PRESSURE VALVE

    OIL PRESSURE VALVE

    829661
    Back order
    £9.53
    0
  • 15
    LOCATING DOWEL Ø11X10

    LOCATING DOWEL Ø11X10

    478115
    19 in stock
    £0.38
    0
  • 16
    NOZZLE D 1.1

    NOZZLE D 1.1

    844582
    10 in stock
    £6.34
    0
  • 17
    SCREW M5X10

    SCREW M5X10

    018575
    145 in stock
    £0.08
    0
  • 18
    STUD BOLT

    STUD BOLT

    840332
    Replaced by

    STUD BOLT

    877285
    Discontinued
    Back order
    N/A
    £4.16
    0
  • 19
    LOCATING DOWEL Ø7,5X12

    LOCATING DOWEL Ø7,5X12

    277916
    29 in stock
    £5.30
    0
  • 20
    SCREW M6X60

    SCREW M6X60

    432142
    Replaced by

    FLANGED HEXAGON SCREW M6X60

    B016425
    22 in stock
    Back order
    £0.54
    £1.28
    0
    0
  • 21
    HALF CRANKCASE GASKET

    HALF CRANKCASE GASKET

    845212
    Replaced by

    GASKET

    875111
    4 in stock
    1 in stock
    £3.37
    £13.24
    0
    0
  • 22
    LOWER OIL BULKHEAD

    LOWER OIL BULKHEAD

    483767
    Back order
    £8.30
    0
  • 23
    UPPER OIL BULKHEAD

    UPPER OIL BULKHEAD

    485047
    Back order
    £10.28
    0
  • 24
    FLANGED HEXAGON SCREW M5X16

    FLANGED HEXAGON SCREW M5X16

    830061
    10 in stock
    £2.06
    0
  • 25
    FILTER DOOR INSERT

    FILTER DOOR INSERT

    845861
    4 in stock
    £8.46
    0
  • 26
    GASKET

    GASKET

    431065
    47 in stock
    £0.75
    0
  • 27
    COMPLETE OIL LEVEL DIPSTICK

    COMPLETE OIL LEVEL DIPSTICK

    832130
    47 in stock
    £4.52
    0
  • 28
    GASKET RING 14,43X9,19X2,62

    GASKET RING 14,43X9,19X2,62

    827085
    146 in stock
    £0.52
    0
