Piaggio X8 125 Street Euro 2 2006-2007 (EMEA) Crankcase

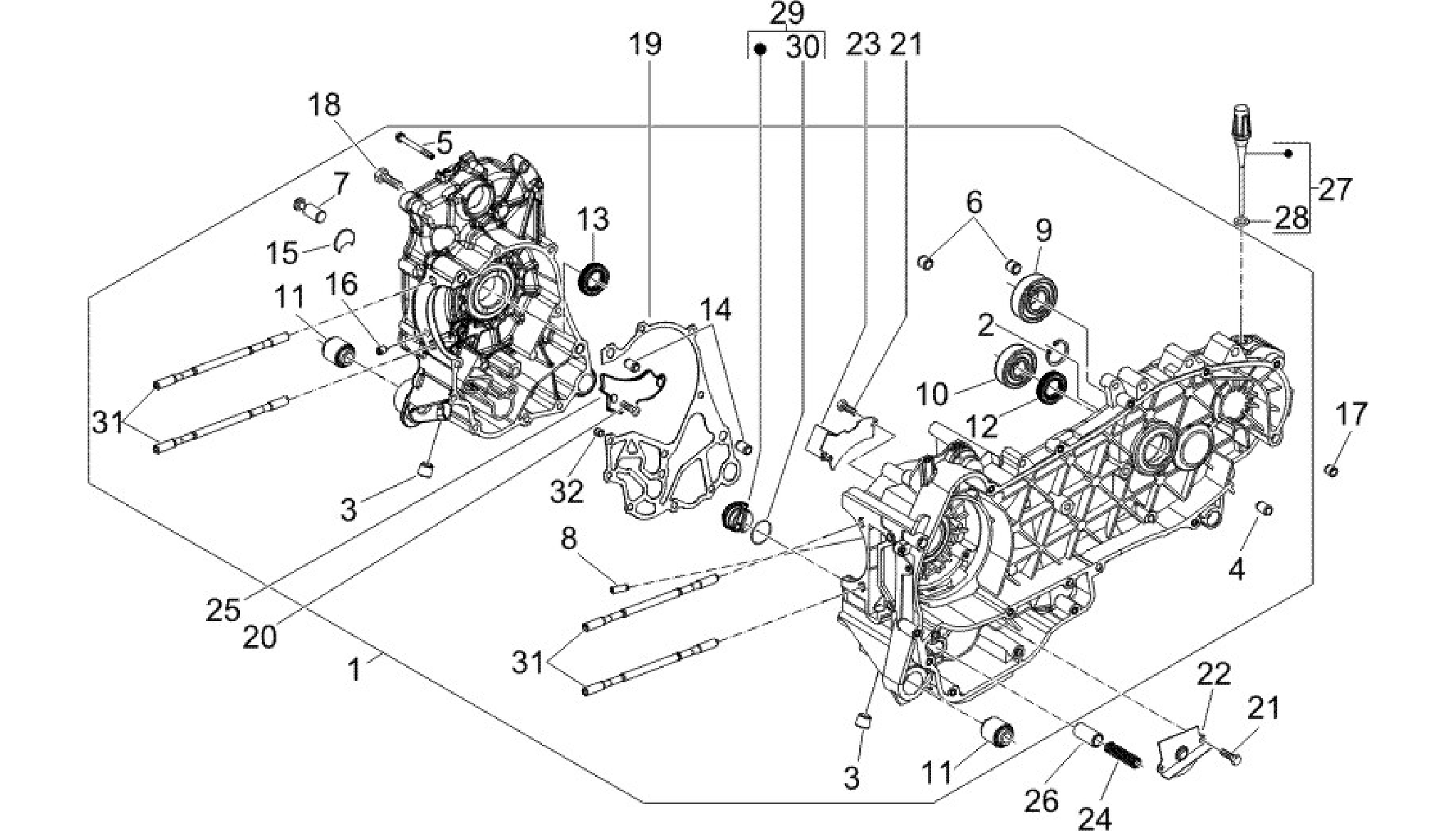

Crankcase

Position

Part Name

Stock

Price

1

COMPLETE CRANKCASE CAT.2

CM1280085002

Back order
£386.69

0
1

COMPLETE CRANKCASE CAT.1

CM1280085001

Back order
£467.39

0
2

CIRCLIP 25X26.9X1.2

000674

68 in stock
£0.96

0
3

PLUG M12X1,5

411311

12 in stock
£1.20

0
4

BUSH Ø8XØ12X8

431860

68 in stock
£1.18

0
6

LOCATING DOWEL Ø11X10

478115

19 in stock
£0.38

0
7

SPRINGS FIXING PIN

483785

26 in stock
£3.99

0
8

NOZZLE

484034

9 in stock
£6.73

0
9

RADIAL BALL BEARING 15X42X13

485912

15 in stock
£18.23

0
10

RADIAL BEARING 20X47X14

485913
Replaced by

RADIAL BALL BEARING 20X47X14

833701

Discontinued

1 in stock
N/A

£8.63

0
11

ENGINE SUPPORT SILENT-BLOCK

486081

16 in stock
£8.04

0
12

GASKET RING

82539R

2 in stock
£3.04

0
13

GASKET RING

82540R
Replaced by

GASKET RING 20-30-7

82898R

4 in stock

22 in stock
£3.19

£10.01

0

0
14

PIN 6,5X9,5X15

239388

46 in stock
£0.63

0
15

CUP

840489

13 in stock
£1.02

0
16

NOZZLE D 1.1

844582

10 in stock
£6.34

0
17

LOCATING DOWEL Ø7,5X12

277916

29 in stock
£5.30

0
18

SCREW M6X60

432142
Replaced by

FLANGED HEXAGON SCREW M6X60

B016425

22 in stock

Back order
£0.54

£1.28

0

0
19

HALF CRANKCASE GASKET

845212
Replaced by

GASKET

875111

4 in stock

1 in stock
£3.37

£13.24

0

0
20

SCREW M5X10

018575

145 in stock
£0.08

0
21

FLANGED HEXAGON SCREW M5X16

830061

10 in stock
£2.06

0
22

LOWER OIL BULKHEAD

483767

Back order
£8.30

0
23

UPPER OIL BULKHEAD

485047

Back order
£10.28

0
24

OIL PRESSURE VALVE SPRING

485655

18 in stock
£0.93

0
25

PLATE

828766

Back order
£0.27

0
26

OIL PRESSURE VALVE

829661

Back order
£9.53

0
27

COMPLETE OIL LEVEL DIPSTICK

832130

47 in stock
£4.52

0
28

GASKET RING 14,43X9,19X2,62

827085

146 in stock
£0.52

0
29

FILTER DOOR INSERT

845861

4 in stock
£8.46

0
30

GASKET

431065

47 in stock
£0.75

0
31

STUD BOLT

411295

Back order
£2.74

0
32

LOCATING DOWEL

484993

Back order
£0.96

0
