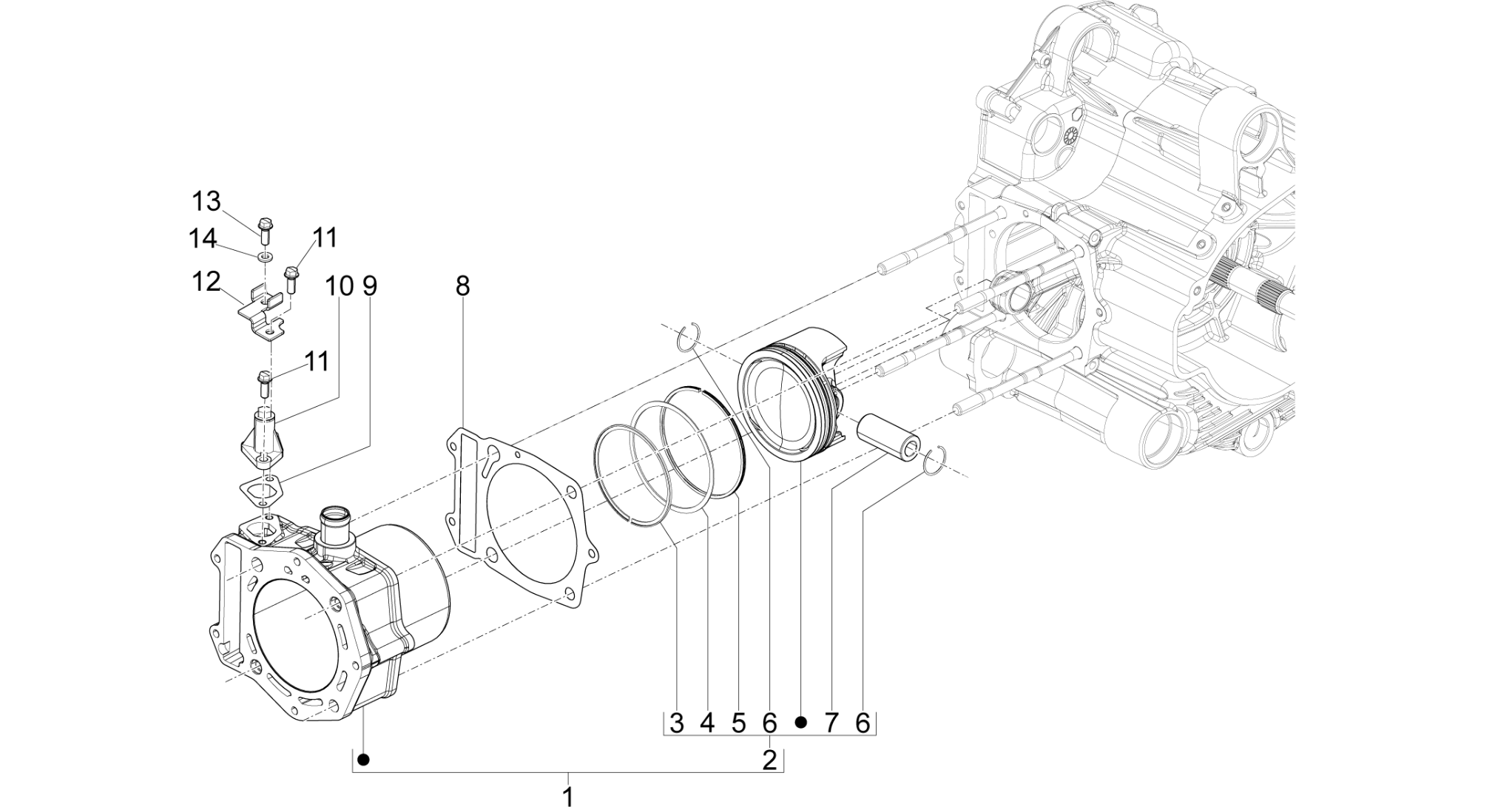

Piaggio X10 500 4T 4V I.E. E3 2012-2013 (EMEA) Cylinder-piston-wrist pin unit

Cylinder-piston-wrist pin unit
Skip to results list
Position
Part Name
Stock
Price
  • 1
    CYLINDER WITH PISTON

    CYLINDER WITH PISTON

    B019019
    Back order
    £220.38
    0
  • 1
    CYLINDER WITH PISTON

    CYLINDER WITH PISTON

    873812
    Back order
    £197.41
    0
  • 2
    PISTON ASSY CAT.4

    PISTON ASSY CAT.4

    B0190180004
    Back order
    £195.43
    0
  • 2
    PISTON ASSY CAT.3

    PISTON ASSY CAT.3

    B0190180003
    Back order
    £195.43
    0
  • 2
    PISTON ASSY CAT.2

    PISTON ASSY CAT.2

    B0190180002
    Back order
    £195.43
    0
  • 2
    PISTON ASSY CAT.1

    PISTON ASSY CAT.1

    B0190180001
    Back order
    £186.13
    0
  • 2
    PISTON ASSY CAT.4

    PISTON ASSY CAT.4

    8738110004
    Back order
    £41.74
    0
  • 2
    PISTON ASSY CAT.3

    PISTON ASSY CAT.3

    8738110003
    Back order
    £41.74
    0
  • 2
    PISTON ASSY CAT.2

    PISTON ASSY CAT.2

    8738110002
    Back order
    £41.74
    0
  • 2
    PISTON ASSY CAT.1

    PISTON ASSY CAT.1

    8738110001
    Back order
    £42.20
    0
  • 3
    RING

    RING

    833450
    Back order
    £29.31
    0
  • 4
    OIL SCRAPER RING D.92

    OIL SCRAPER RING D.92

    833451
    Back order
    £15.58
    0
  • 5
    OIL SCRAPER RING

    OIL SCRAPER RING

    833452
    Back order
    £23.08
    0
  • 6
    STOP RING

    STOP RING

    828116
    171 in stock
    £0.83
    0
  • 7
    PISTON PIN

    PISTON PIN

    827820
    4 in stock
    £15.48
    0
  • 8
    CYLINDER BASE GASKET 0,4

    CYLINDER BASE GASKET 0,4

    830277
    40 in stock
    £13.60
    0
  • 8
    CYLINDER BASE GASKET 0,6

    CYLINDER BASE GASKET 0,6

    830276
    2 in stock
    £13.60
    0
  • 8
    CYLINDER BASE GASKET 0,8

    CYLINDER BASE GASKET 0,8

    830275
    8 in stock
    £13.60
    0
  • 9
    CYLINDER/CHAIN TENSIONER GASKET

    CYLINDER/CHAIN TENSIONER GASKET

    847928
    261 in stock
    £2.69
    0
  • 10
    COMPLETE CHAIN TENSIONER

    COMPLETE CHAIN TENSIONER

    82650R
    Replaced by

    COMPLETE CHAIN TENSIONER

    289919
    Discontinued
    Back order
    N/A
    £28.97
    0
  • 11
    FLANGED HEXAGON SCREW M6X16

    FLANGED HEXAGON SCREW M6X16

    B016777
    9 in stock
    £0.95
    0
  • 11
    SCREW W/ FLANGE M6X16

    SCREW W/ FLANGE M6X16

    434541
    20 in stock
    £0.33
    0
  • 12
    BRACKET

    BRACKET

    680004
    Back order
    £17.13
    0
  • 13
    SCREW W/ FLANGE M6X20

    SCREW W/ FLANGE M6X20

    AP8152279
    15 in stock
    £1.48
    0
  • 14
    WASHER 6.4X13X1.5

    WASHER 6.4X13X1.5

    013777
    4 in stock
    £0.48
    0
