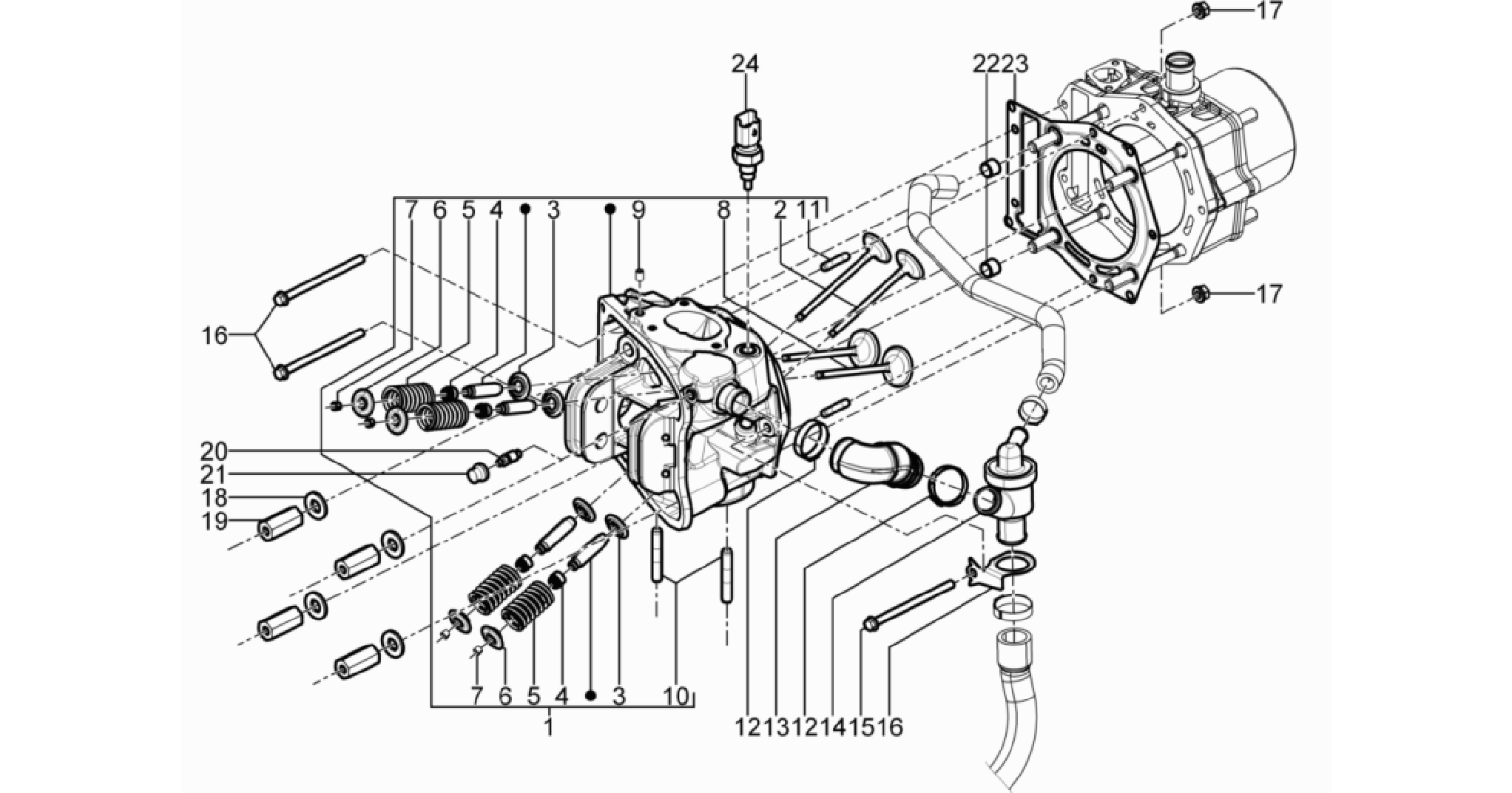

Piaggio X10 500 4T 4V I.E. E3 2012-2013 (EMEA) Cylinder head unit - Valve

Cylinder head unit - Valve
Skip to results list
Position
Part Name
Stock
Price
  • 1
    CYLINDER HEAD ASSEMBLY

    CYLINDER HEAD ASSEMBLY

    82988R1
    Back order
    £846.22
    0
  • 2
    EXHAUST VALVE

    EXHAUST VALVE

    828321
    Back order
    £120.83
    0
  • 3
    LOWER CUP

    LOWER CUP

    826256
    16 in stock
    £4.09
    0
  • 4
    VALVE GASKET RING

    VALVE GASKET RING

    436438
    41 in stock
    £9.16
    0
  • 5
    VALVE SPRING

    VALVE SPRING

    826103
    16 in stock
    £25.44
    0
  • 6
    UPPER CUP

    UPPER CUP

    828396
    16 in stock
    £43.92
    0
  • 7
    VALVE HALF-CONE

    VALVE HALF-CONE

    285846
    202 in stock
    £1.63
    0
  • 8
    INTAKE VALVE

    INTAKE VALVE

    828322
    8 in stock
    £72.45
    0
  • 9
    PLUG M6X10

    PLUG M6X10

    842360
    Back order
    £1.81
    0
  • 10
    STUD BOLT M6X27,5

    STUD BOLT M6X27,5

    878991
    Back order
    £11.02
    0
  • 11
    EXHAUST PIPE STUD BOLT

    EXHAUST PIPE STUD BOLT

    B017636
    Back order
    £2.89
    0
  • 12
    HOSE CLAMP

    HOSE CLAMP

    CM001915
    Back order
    £1.77
    0
  • 13
    THERMOSTAT-HEAD PIPE

    THERMOSTAT-HEAD PIPE

    840826
    Back order
    £9.33
    0
  • 14
    THERMOSTAT

    THERMOSTAT

    848140
    Back order
    £57.20
    0
  • 15
    FLANGED HEXAGON SCREW M6X90

    FLANGED HEXAGON SCREW M6X90

    B016776
    Back order
    £0.92
    0
  • 15
    SCREW M6X90 T.E.FLANGE

    SCREW M6X90 T.E.FLANGE

    830278
    Back order
    £0.35
    0
  • 16
    BRACKET FOR THERMOSTAT

    BRACKET FOR THERMOSTAT

    840062
    Back order
    £6.77
    0
  • 17
    SELF LOCKING NUT M6

    SELF LOCKING NUT M6

    288245
    141 in stock
    £0.63
    0
  • 18
    FLAT WASHER

    FLAT WASHER

    1A000427
    Back order
    £1.14
    0
  • 18
    FLAT WASHER 22X10,3X2,5

    FLAT WASHER 22X10,3X2,5

    178790
    29 in stock
    £1.36
    0
  • 19
    HIGH HEXAGONAL NUT

    HIGH HEXAGONAL NUT

    832783
    14 in stock
    £4.00
    0
  • 20
    BLEED SCREW

    BLEED SCREW

    430045
    17 in stock
    £1.32
    0
  • 21
    BLEED VALVE CAP

    BLEED VALVE CAP

    063435
    24 in stock
    £2.38
    0
  • 22
    CALIBRATED DOWEL 11,8X10

    CALIBRATED DOWEL 11,8X10

    825597
    12 in stock
    £1.85
    0
  • 23
    CYLINDER HEAD GASKET

    CYLINDER HEAD GASKET

    847406
    3 in stock
    £22.69
    0
  • 24
    TEMPERATURE GAUGE

    TEMPERATURE GAUGE

    640485
    Replaced by

    TEMPERATURE GAUGE

    1A021287R
    Discontinued
    Back order
    N/A
    £38.53
    0
