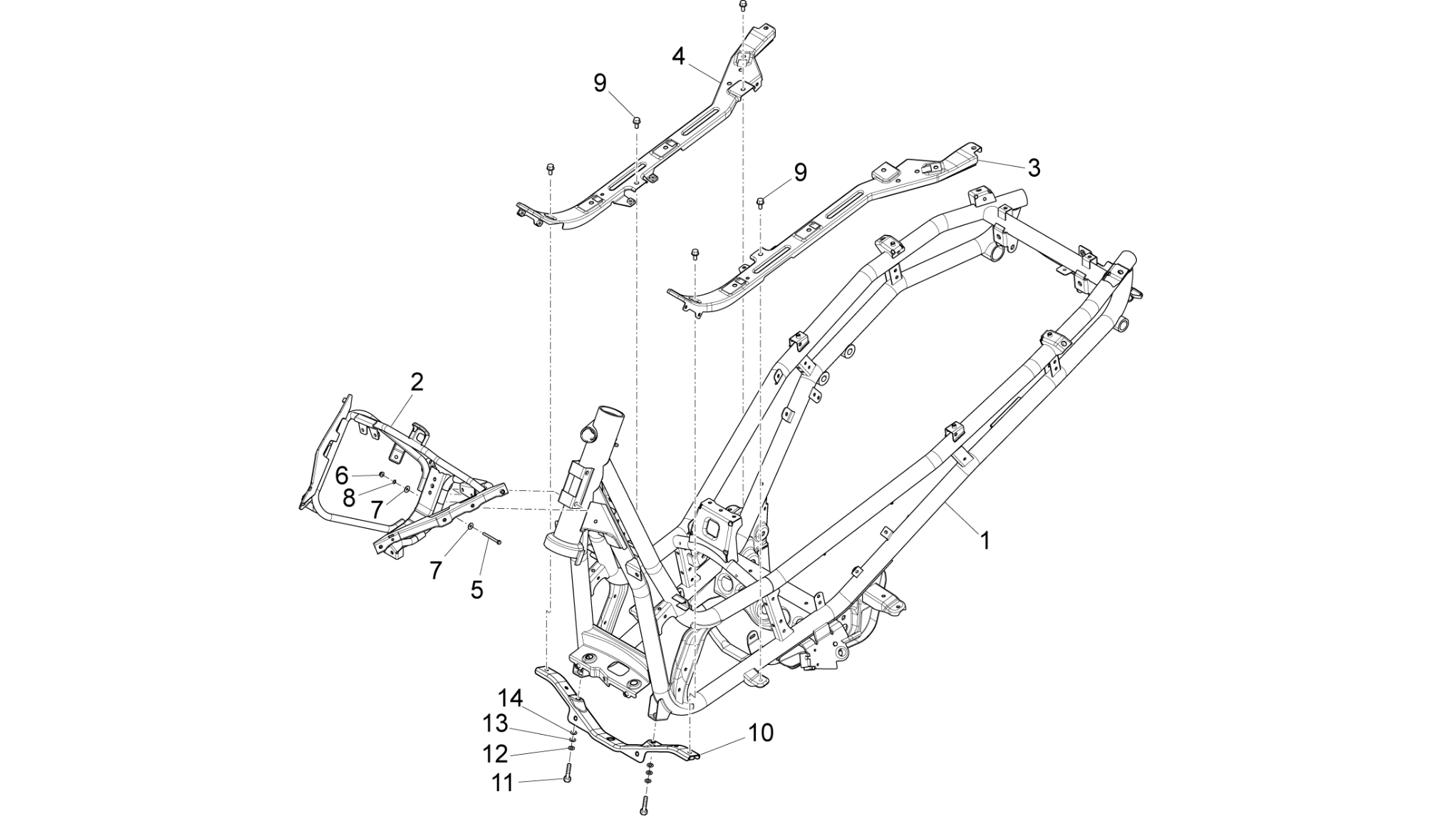

Piaggio X10 125 4T 4V I.E. E3 2012-2015 (EMEA) Frame/bodywork

Frame/bodywork
Skip to results list
Position
Part Name
Stock
Price
  • 1
    NOT AVAILABLE

    NOT AVAILABLE

    6727335
    Back order
    £306.13
    0
  • 2
    FRONT SUB-CHASSIS WITH U.P.

    FRONT SUB-CHASSIS WITH U.P.

    6756205
    Back order
    £53.61
    0
  • 3
    LEFT FOOTREST SUPPORT CROSS PIN WITH U.P.

    LEFT FOOTREST SUPPORT CROSS PIN WITH U.P.

    6752555
    Back order
    £78.84
    0
  • 4
    FOOTREST SUPPORT WITH I.P. RIGHT CROSS PIN

    FOOTREST SUPPORT WITH I.P. RIGHT CROSS PIN

    6746715
    Back order
    £77.83
    0
  • 5
    FLANGED HEXAGON SCREW M6X60

    FLANGED HEXAGON SCREW M6X60

    B016425
    Back order
    £1.28
    0
  • 6
    NUT

    NUT

    969224
    Back order
    £0.13
    0
  • 7
    WASHER 6,2X18X2

    WASHER 6,2X18X2

    013950
    Back order
    £0.94
    0
  • 8
    FLAT SPRING WASHER WITH EXTERNAL TEETH

    FLAT SPRING WASHER WITH EXTERNAL TEETH

    012533
    Out of stock
    £0.00
  • 9
    SCREW W/ FLANGE

    SCREW W/ FLANGE

    436788
    Replaced by

    SCREW W/ FLANGE M6X14

    833722
    Discontinued
    Back order
    N/A
    £0.27
    0
  • 10
    PIPES CONNECTION CROSS PIN

    PIPES CONNECTION CROSS PIN

    6734195
    Back order
    £37.59
    0
  • 11
    HEXAGONAL-HEAD SCREW M8X25 (CH13)

    HEXAGONAL-HEAD SCREW M8X25 (CH13)

    031120
    Back order
    £0.44
    0
  • 12
    SPRING WASHER 13,75X8,15X4,5

    SPRING WASHER 13,75X8,15X4,5

    016408
    Replaced by

    SPRINGS WASHER

    667059
    Discontinued
    51 in stock
    N/A
    £1.02
    0
  • 13
    FLAT WASHER 8,4X18X2

    FLAT WASHER 8,4X18X2

    003038
    21 in stock
    £0.94
    0
  • 14
    WASHER

    WASHER

    709012
    8 in stock
    £1.06
    0
