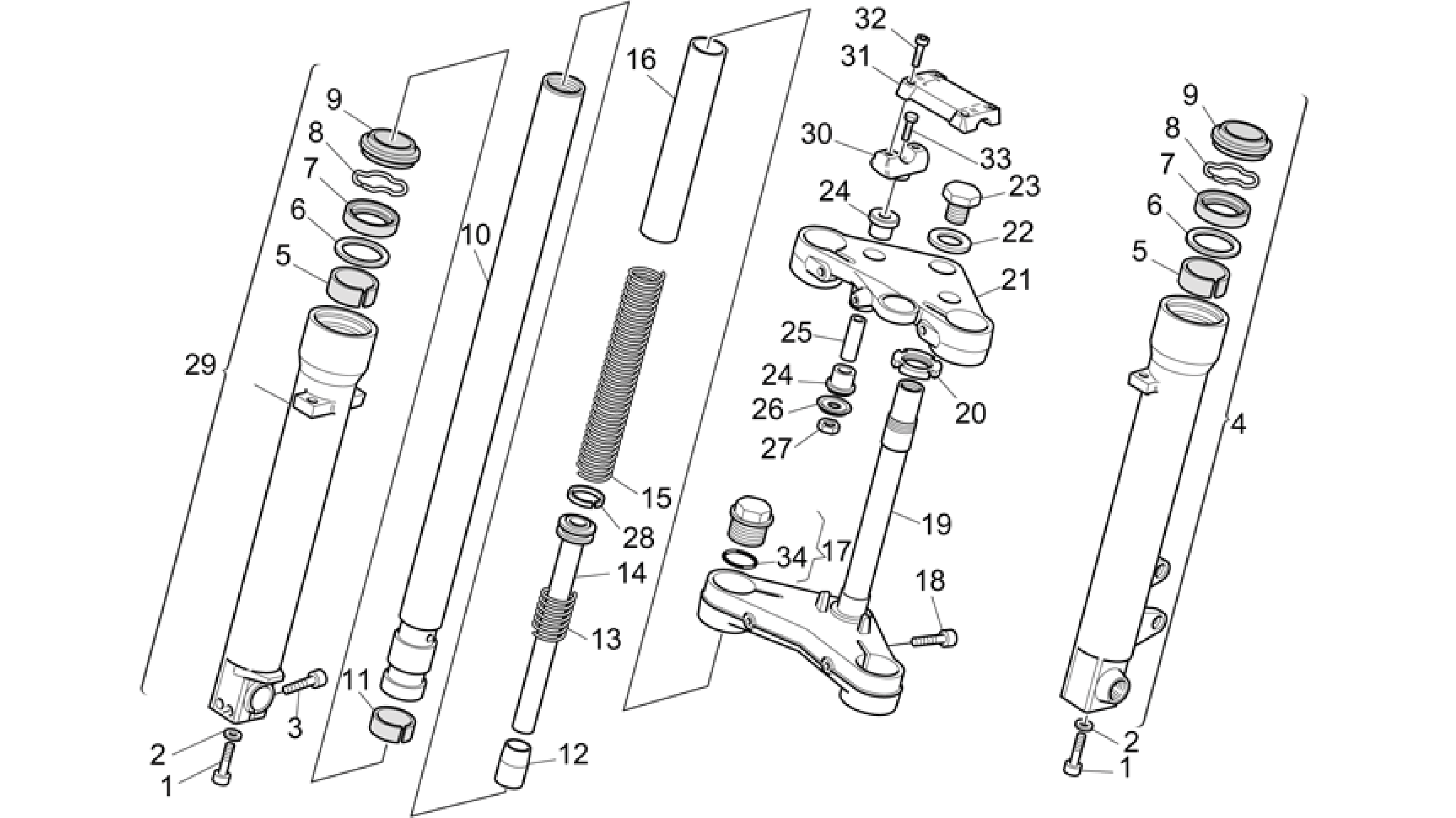

Moto Guzzi Nevada Base/Club 750 2002-2003 (APAC, EMEA) Front fork

Position

Part Name

Stock

Price

1

SCREW M10X30

GU03530530
Replaced by

HEX SOCKET SCREW

AP8203200

5 in stock

Back order
£10.50

£10.50

0

0
2

WASHER

GU03530529
Replaced by

SEAL WASHER

AP8123206

4 in stock

2 in stock
£10.74

£10.74

0

0
3

SCREW M6X35

GU98620335
Replaced by

SCREW

AP8123947

Discontinued

Back order
N/A

£2.00

0
4

LH SLEEVE

GU31490783

Back order
£869.89

0
5

UPPER BUSH

GU30526761
Replaced by

UPPER BUSH (MARZOCCHI)

599505

Discontinued

Back order
N/A

£18.38

0
6

WASHER

GU01530568
Replaced by

CUP (MARZOCCHI)

599504

Discontinued

2 in stock
N/A

£4.86

0
7

GASKET RING 40X52X9,5

GU27530584
Replaced by

GASKET RING (MARZOCCHI)

599501

4 in stock

11 in stock
£25.40

£25.40

0

0
8

STOP RING

GU31530582

Back order
£0.00

0
9

DUST COVER

GU01530571
Replaced by

DUST COVER + SPRING (MARZOCCHI)

599502

Discontinued

Back order
N/A

£19.15

0
10

SLEEVE

GU31525483

Back order
£617.89

0
11

LOWER BUSH

GU30525861
Replaced by

LOWER BUSH

599629

Discontinued

Back order
N/A

£13.99

0
12

PAD

GU03530551
Replaced by

STROKE LIMIT STOP

AP8123655

Discontinued

Back order
N/A

£45.55

0
13

RETURN SPRING

GU03530553
Replaced by

RETURN SPRING

AP8163076

Discontinued

Back order
N/A

£21.36

0
14

ROD

GU31530583

Back order
£74.23

0
15

SPRING

GU31530581

Back order
£0.00

0
16

PRELOAD TUBE

GU31530584

Back order
£19.67

0
17

PLUG CPL.

GU31504583
Replaced by

COVER D.40

AP8123631

Discontinued

4 in stock
N/A

£35.53

0
18

SCREW

GU31530580

Back order
£0.00

0
19

STEM BASE

GU31494183

Back order
£674.81

0
20

RING NUT M25X1

GU31513480

Back order
£15.75

0
21

FORK UPPER PLATE

GU31493183

1 in stock
£554.20

0
22

WASHER

GU27530510
Replaced by

WASHER

AP8123843

Discontinued

1 in stock
N/A

£5.53

0
23

NUT M20X1,5

GU30512830
Replaced by

PLUG

AP8203251

Discontinued

4 in stock
N/A

£23.89

0
24

RUBBER SPACER

AP8144222

more info + more info -

Technical Specification: From frame number LK 112689[T6]

3 in stock
£5.67

0
24

RUBBER SPACER

GU27530503

more info + more info -

Technical Specification: Up to frame number LK 112688[T5]

Back order
£1.51

0
25

SPACER

GU91181039

more info + more info -

Technical Specification: From frame number LK 112689[T6]

2 in stock
£7.99

0
25

SPACER

GU03530503

more info + more info -

Technical Specification: Up to frame number LK 112688[T5]

3 in stock
£3.92

0
26

CUP

GU27530505
Replaced by

CUP

AP8123511

Discontinued

Back order
N/A

£6.97

0
27

NUT

GU27530506
Replaced by

NUT

AP8123512

Discontinued

5 in stock
N/A

£8.09

0
28

RING

GU31530579

Back order
£0.00

0
29

RH SLEEVE

GU31490683

Back order
£821.24

0
30

LOWER U-BOLT

GU31501283

Back order
£94.23

0
31

U-BOLT

GU31500483

Back order
£185.10

0
32

SCREW M8X30

GU66530505
Replaced by

HEX SOCKET SCREW M8X30

GU98682430

Discontinued

14 in stock
N/A

£0.53

0
33

SCREW

GU31530578

Back order
£0.00

0
34

O-RING

GU31530577

Back order
£0.00

0
