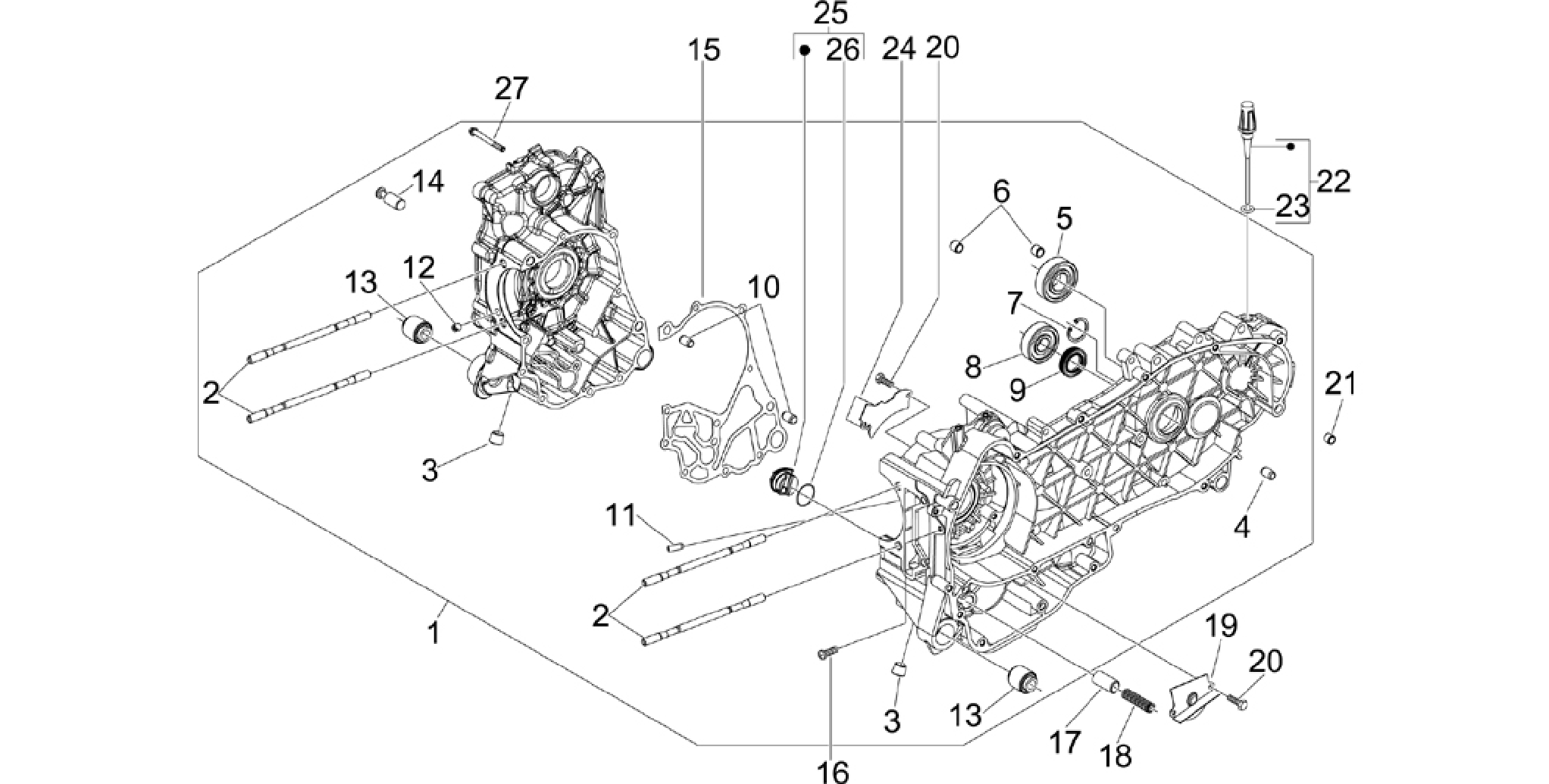

Piaggio BEVERLY 300 ie Tourer E3 2009 (EMEA) Crankcase

Crankcase

Position

Part Name

Stock

Price

1

COMPLETE CRANKCASE CAT.2

8787015002

Back order
£448.45

0
1

COMPLETE CRANKCASE CAT.1

8787015001

Back order
£445.32

0
1

CRANKSHAFT CPL.,CAT.1

8747940002
Replaced by

COMPLETE CRANKCASE CAT.2

B0172830002

Discontinued

Back order
N/A

£822.17

0
1

CRANKSHAFT CPL.,CAT.1

8747940001
Replaced by

COMPLETE CRANKCASE CAT.1

B0172830001

Discontinued

Back order
N/A

£809.91

0
2

STUD BOLT

877285

Back order
£4.16

0
2

STUD BOLT

840332
Replaced by

STUD BOLT

877285

Discontinued

Back order
N/A

£4.16

0
3

PLUG M12X1,5

411311

12 in stock
£1.20

0
5

RADIAL BALL BEARING 15X42X13

485912

15 in stock
£18.23

0
6

LOCATING DOWEL Ø11X10

478115

19 in stock
£0.38

0
7

CIRCLIP 25X26.9X1.2

000674

68 in stock
£0.96

0
8

RADIAL BALL BEARING 20X47X14

833701

1 in stock
£8.63

0
9

GASKET RING 20-32-7

82878R

16 in stock
£10.69

0
10

PIN 6,5X9,5X15

239388

46 in stock
£0.63

0
11

NOZZLE

484034

9 in stock
£6.73

0
12

NOZZLE D 1.1

844582

10 in stock
£6.34

0
13

ENGINE SUPPORT SILENT-BLOCK

486081

16 in stock
£8.04

0
14

SPRINGS FIXING PIN

483785

26 in stock
£3.99

0
15

GASKET

875111

1 in stock
£13.24

0
16

SCREW M5X10

018575

145 in stock
£0.08

0
16

SCREW

847233

3 in stock
£0.63

0
17

OIL PRESSURE VALVE

829661

Back order
£9.53

0
18

OIL PRESSURE VALVE SPRING

485655

18 in stock
£0.93

0
19

LOWER OIL BULKHEAD

483767

Back order
£8.30

0
20

FLANGED HEXAGON SCREW M5X16

830061

10 in stock
£2.06

0
21

LOCATING DOWEL Ø7,5X12

277916

29 in stock
£5.30

0
22

COMPLETE OIL LEVEL DIPSTICK

832130

47 in stock
£4.52

0
23

GASKET RING 14,43X9,19X2,62

827085

146 in stock
£0.52

0
24

UPPER OIL BULKHEAD

485047

Back order
£10.28

0
25

FILTER DOOR INSERT

845861

4 in stock
£8.46

0
26

GASKET

431065

47 in stock
£0.75

0
27

SCREW M6X60

432142
Replaced by

FLANGED HEXAGON SCREW M6X60

B016425

22 in stock

Back order
£0.54

£1.28

0

0
