Piaggio Beverly 250 Tourer E3 2007-2009 (EMEA) CRANKCASE

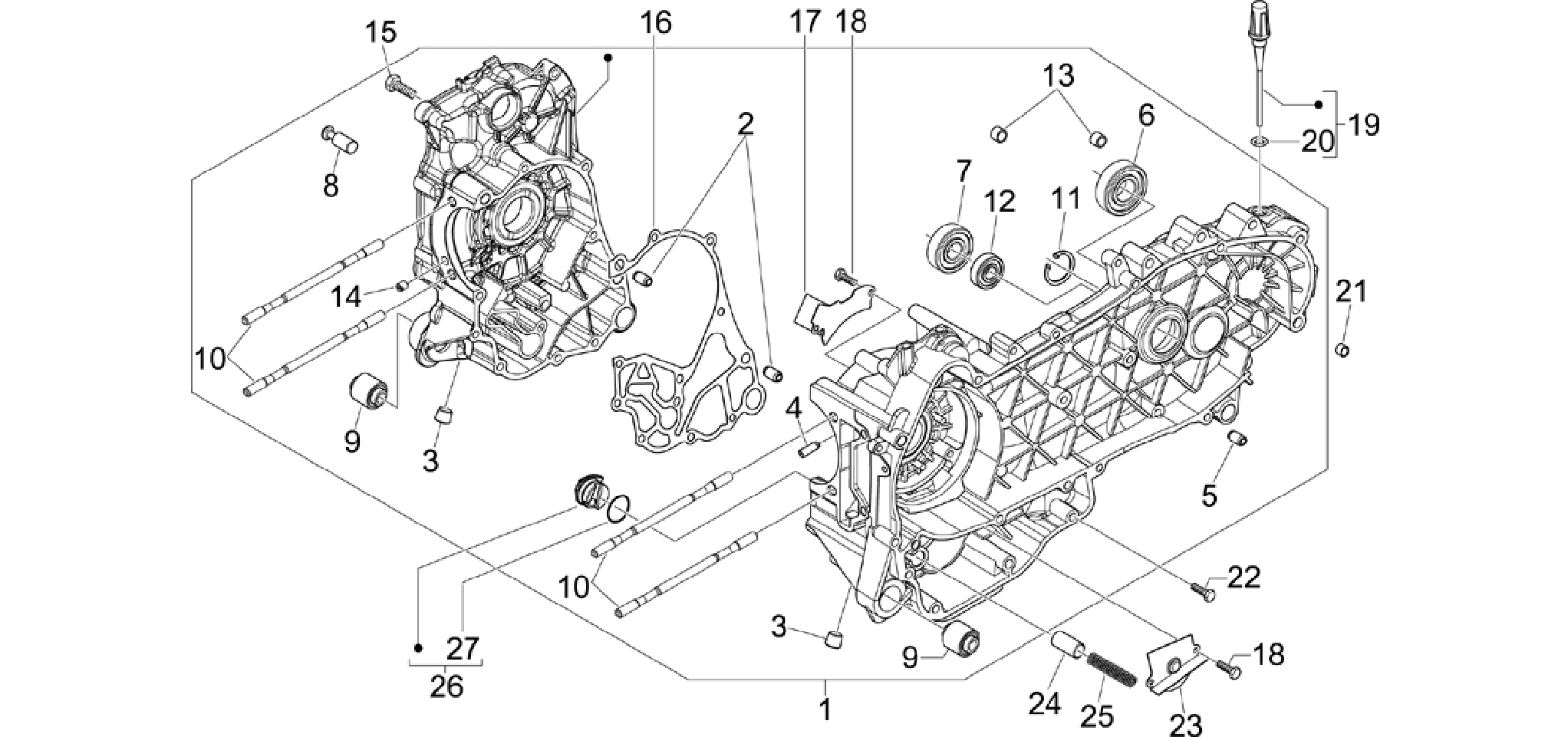

CRANKCASE

Position

Part Name

Stock

Price

1

CRANK-CASE

8462875002

Back order
£466.93

0
1

CRANK-CASE

8462875001

Back order
£402.78

0
2

PIN 6,5X9,5X15

239388

46 in stock
£0.63

0
3

PLUG M12X1,5

411311

12 in stock
£1.20

0
4

NOZZLE

484034

9 in stock
£6.73

0
6

RADIAL BALL BEARING 15X42X13

485912

15 in stock
£18.23

0
7

RADIAL BALL BEARING 20X47X14

833701

1 in stock
£8.63

0
8

SPRINGS FIXING PIN

483785

26 in stock
£3.99

0
9

ENGINE SUPPORT SILENT-BLOCK

486081

16 in stock
£8.04

0
10

STUD BOLT

840332
Replaced by

STUD BOLT

877285

Discontinued

Back order
N/A

£4.16

0
11

CIRCLIP 25X26.9X1.2

000674

68 in stock
£0.96

0
12

GASKET RING 20-32-7

82878R

16 in stock
£10.69

0
12

GASKET RING

82539R

2 in stock
£3.04

0
13

LOCATING DOWEL Ø11X10

478115

19 in stock
£0.38

0
14

NOZZLE D 1.1

844582

10 in stock
£6.34

0
15

SCREW M6X60

432142
Replaced by

FLANGED HEXAGON SCREW M6X60

B016425

22 in stock

Back order
£0.54

£1.28

0

0
16

HALF CRANKCASE GASKET

845212
Replaced by

GASKET

875111

4 in stock

1 in stock
£3.37

£13.24

0

0
16

GASKET

875111

1 in stock
£13.24

0
17

UPPER OIL BULKHEAD

485047

Back order
£10.28

0
18

FLANGED HEXAGON SCREW M5X16

830061

10 in stock
£2.06

0
19

COMPLETE OIL LEVEL DIPSTICK

832130

47 in stock
£4.52

0
20

GASKET RING 14,43X9,19X2,62

827085

146 in stock
£0.52

0
21

LOCATING DOWEL Ø7,5X12

277916

29 in stock
£5.30

0
22

SCREW M5X10

018575

145 in stock
£0.08

0
23

LOWER OIL BULKHEAD

483767

Back order
£8.30

0
24

OIL PRESSURE VALVE

829661

Back order
£9.53

0
25

OIL PRESSURE VALVE SPRING

485655

18 in stock
£0.93

0
26

FILTER DOOR INSERT

845861

4 in stock
£8.46

0
27

GASKET

431065

47 in stock
£0.75

0
