Piaggio Carnaby 300 4T ie Cruiser 2009-2012 (EMEA) Oil pump

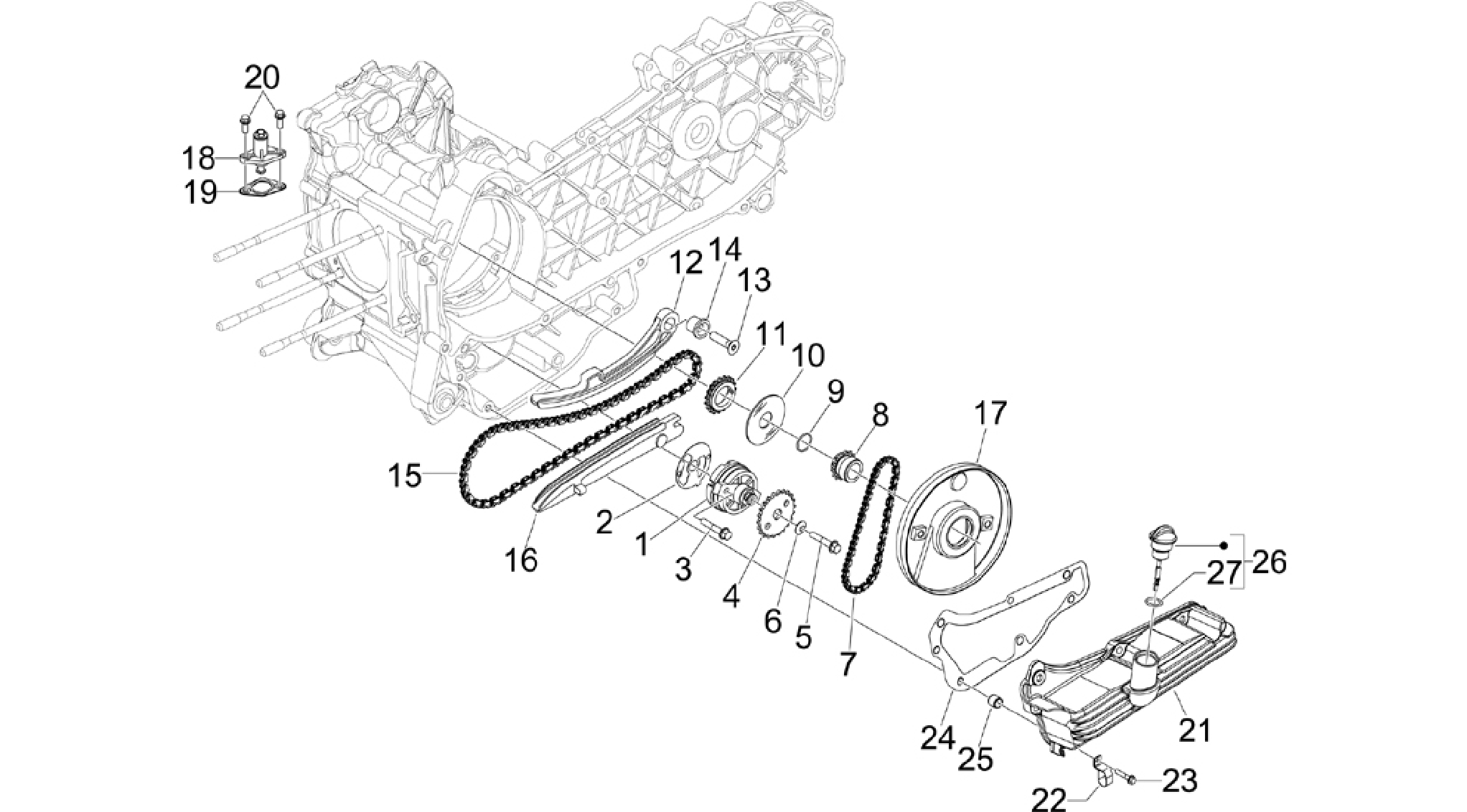

Oil pump

Position

Part Name

Stock

Price

1

OIL PUMP ASSEMBLY

82948R

3 in stock
£108.10

0
2

CARTER-OIL PUMP GASKET

847929

6 in stock
£0.98

0
3

FLANGED HEXAGON SCREW M5X35

829593

9 in stock
£1.06

0
4

OIL PUMP GEAR

287913

3 in stock
£7.03

0
5

FLANGED HEXAGON SCREW M6X14

B016426

Back order
£1.06

0
5

SCREW W/ FLANGE M6X14

833722

Back order
£0.27

0
6

BELLEVILLE SPRING Ø6,4XØ20X2

436695

Back order
£1.74

0
7

CAMSHAFT CHAIN

82723R

2 in stock
£50.59

0
8

OIL PUMP CONTROL PINION

82783R

3 in stock
£19.00

0
9

O-RING SEAL RING

825952

91 in stock
£0.66

0
10

OIL SEAL WASHER

483918

Back order
£1.06

0
11

TIMING CHAIN PINION

82782R

5 in stock
£18.85

0
12

CHAIN TENSIONER ROD

840344

5 in stock
£9.44

0
13

SCREW W/ FLANGE M6X25

414837
Replaced by

SCREW W/ FLANGE M6X25

B016774

19 in stock

42 in stock
£0.23

£0.95

0

0
13

FLANGED HEXAGON SCREW M6X25

B016774

42 in stock
£1.06

0
14

CHAIN TENSIONER ROD SPACER

485868

Back order
£0.73

0
15

OIL PUMP CHAIN

82649R

3 in stock
£13.17

0
16

CHAIN TENSIONER SLIDING BLOCK

847516

Back order
£12.13

0
17

TIMING SYSTEM COVER

847116

Back order
£49.11

0
18

COMPLETE CHAIN TENSIONER

82650R
Replaced by

COMPLETE CHAIN TENSIONER

289919

Discontinued

Back order
N/A

£28.97

0
19

CYLINDER/CHAIN TENSIONER GASKET

847928

261 in stock
£2.69

0
20

FLANGED HEXAGON SCREW M6X16

B016777

9 in stock
£0.95

0
20

SCREW W/ FLANGE M6X16

434541

20 in stock
£0.33

0
21

MOTOR OIL CUP

846096

2 in stock
£65.18

0
22

HOSE CLAMP

564629

5 in stock
£2.90

0
23

FLANGED HEXAGON SCREW M6X30

B016792

19 in stock
£0.95

0
23

SCREW W/ FLANGE M6X30

289731

12 in stock
£0.27

0
24

GASKET

846098

1 in stock
£5.17

0
25

LOCATING DOWEL Ø7,5X12

277916

29 in stock
£5.30

0
26

OIL PLUG ASSEMBLY

843364

10 in stock
£4.87

0
27

O-RING

479986

222 in stock
£0.38

0
