Piaggio Carnaby 250 4T ie E3 2008-2009 (EMEA) Flywheel magneto cover - Oil filter

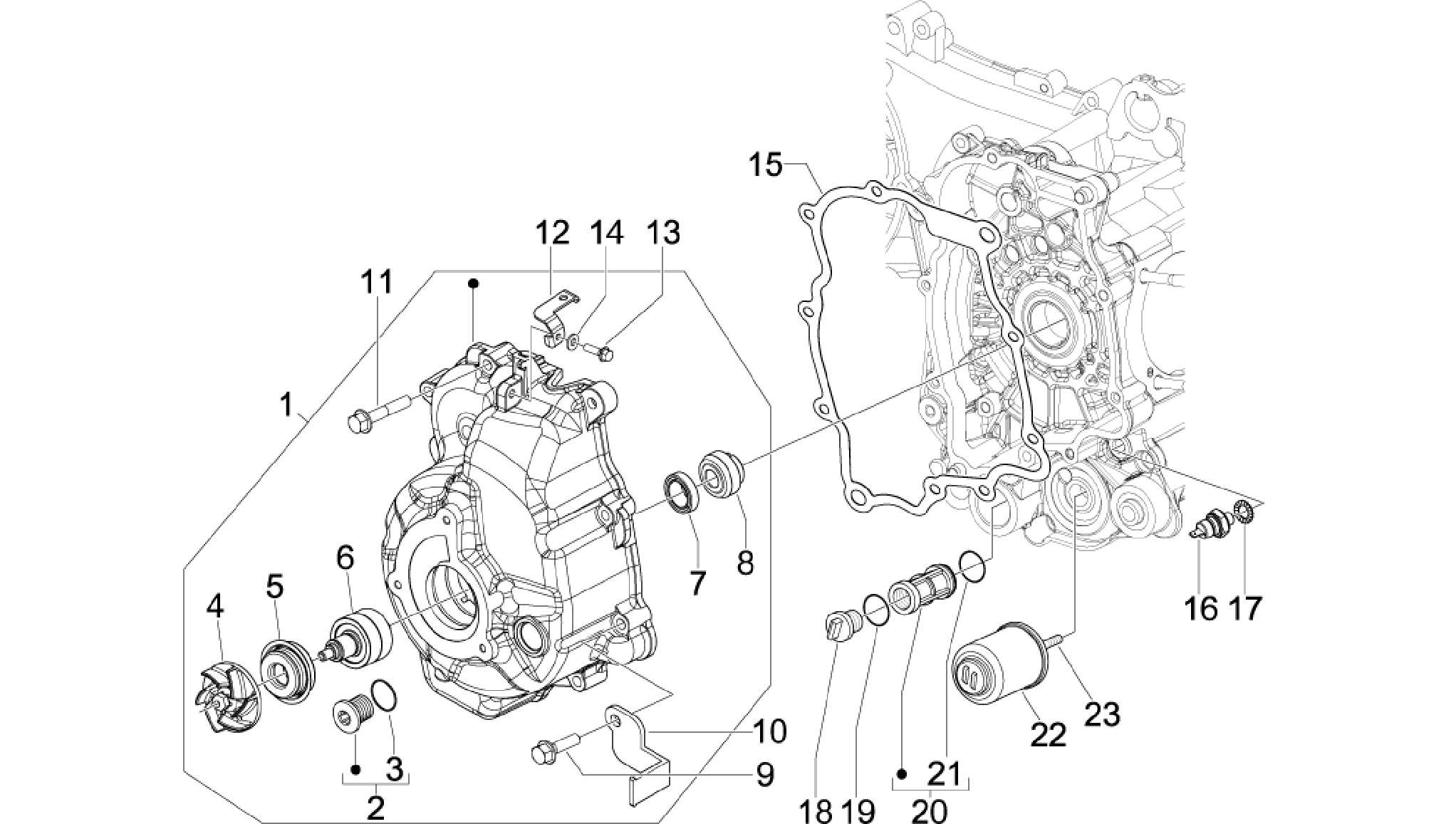

Flywheel magneto cover - Oil filter
Skip to results list
Position
Part Name
Stock
Price
  • 1
    FLYWHEEL COVER CPL.

    FLYWHEEL COVER CPL.

    8483785
    Back order
    £131.40
    0
  • 2
    TIMING PLUG ASSEMBLY

    TIMING PLUG ASSEMBLY

    829040
    Replaced by

    TIMING PLUG ASSEMBLY

    8290405
    Discontinued
    Back order
    N/A
    £14.03
    0
  • 3
    O-RING

    O-RING

    479986
    222 in stock
    £0.38
    0
  • 4
    WATER PUMP IMPELLER CPL.

    WATER PUMP IMPELLER CPL.

    844730
    22 in stock
    £10.61
    0
  • 5
    GASKET RING

    GASKET RING

    842595
    Replaced by

    OIL SEAL

    82991R
    Discontinued
    4 in stock
    N/A
    £22.52
    0
  • 6
    WATER PUMP SHAFT ASSY.

    WATER PUMP SHAFT ASSY.

    8447595
    Back order
    £47.50
    0
  • 7
    OIL SEAL 20X30X5

    OIL SEAL 20X30X5

    82897R
    1 in stock
    £10.69
    0
  • 8
    PUMP IMPELLER DRIVE KEY

    PUMP IMPELLER DRIVE KEY

    842389
    Back order
    £25.77
    0
  • 9
    SCREW

    SCREW

    844160
    Back order
    £0.62
    0
  • 10
    PLATE

    PLATE

    848109
    Back order
    £1.27
    0
  • 11
    FLANGED HEXAGON SCREW M6X35

    FLANGED HEXAGON SCREW M6X35

    414838
    105 in stock
    £1.06
    0
  • 12
    RETAINER PLATE

    RETAINER PLATE

    655511
    Back order
    £3.64
    0
  • 13
    SCREW W/ FLANGE

    SCREW W/ FLANGE

    484123
    63 in stock
    £0.50
    0
  • 14
    WASHER

    WASHER

    012528
    2 in stock
    £0.96
    0
  • 15
    FLYWHEEL HOUSING COVER GASKET

    FLYWHEEL HOUSING COVER GASKET

    840504
    2 in stock
    £8.77
    0
  • 16
    OIL PRESSURE SENSOR

    OIL PRESSURE SENSOR

    82580R
    Replaced by

    OIL PRESSURE SENSOR

    641541
    1 in stock
    Back order
    £7.00
    £13.43
    0
    0
  • 17
    WASHER 10.5X16X2.5

    WASHER 10.5X16X2.5

    486075
    108 in stock
    £1.10
    0
  • 18
    OIL FILTER PLUG

    OIL FILTER PLUG

    826165
    13 in stock
    £18.27
    0
  • 18
    OIL FILTER PLUG

    OIL FILTER PLUG

    82823R
    Replaced by

    OIL FILTER PLUG

    826165
    Discontinued
    13 in stock
    N/A
    £18.27
    0
  • 19
    O-RING 31,47X1,78

    O-RING 31,47X1,78

    285536
    23 in stock
    £1.36
    0
  • 20
    INTAKE OIL FILTER

    INTAKE OIL FILTER

    843568
    10 in stock
    £4.96
    0
  • 21
    O-RING 20,35X1,78

    O-RING 20,35X1,78

    288474
    324 in stock
    £0.43
    0
  • 22
    OIL FILTER CPL.

    OIL FILTER CPL.

    82635R
    6 in stock
    £14.41
    0
  • 23
    OIL FILTER SPECIAL SCREW

    OIL FILTER SPECIAL SCREW

    840507
    4 in stock
    £9.05
    0
