Piaggio CARNABY 200 4T E3 2007-2008 (EMEA) Head unit - Valve

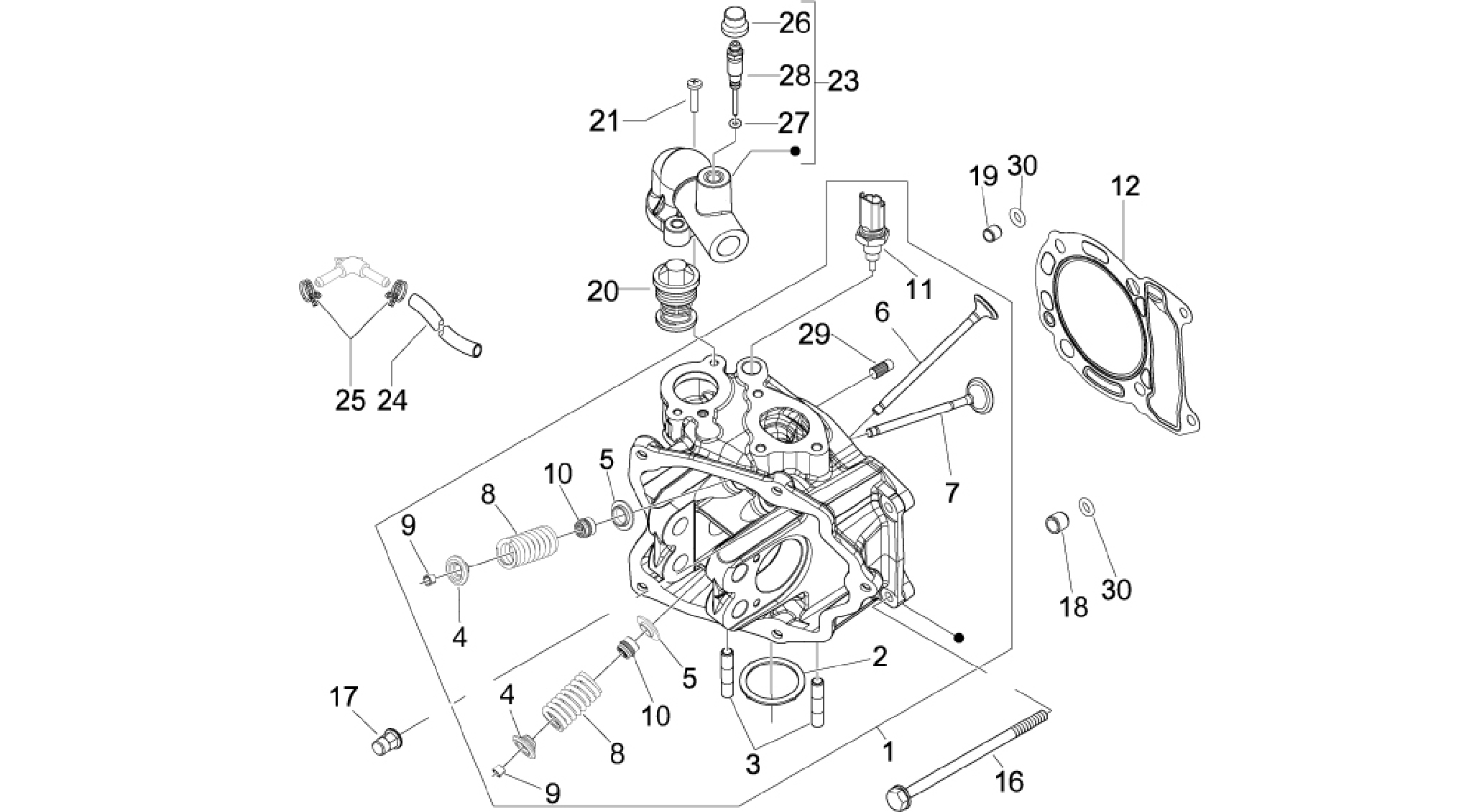

Head unit - Valve
Skip to results list
Position
Part Name
Stock
Price
  • 1
    CYLINDER HEAD ASSY.

    CYLINDER HEAD ASSY.

    848377
    Replaced by

    COMPLETE CYLINDER HEAD

    872745
    Discontinued
    1 in stock
    N/A
    £582.78
    0
  • 2
    EXHAUST PIPE GASKET

    EXHAUST PIPE GASKET

    480853
    61 in stock
    £4.26
    0
  • 3
    SPECIAL STUD BOLT M7

    SPECIAL STUD BOLT M7

    435629
    75 in stock
    £1.56
    0
  • 4
    UPPER CAP

    UPPER CAP

    483914
    9 in stock
    £4.72
    0
  • 5
    LOWER CAP

    LOWER CAP

    483711
    10 in stock
    £1.76
    0
  • 6
    INTAKE VALVE

    INTAKE VALVE

    872999
    3 in stock
    £27.82
    0
  • 6
    INTAKE VALVE

    INTAKE VALVE

    484733
    Back order
    £7.91
    0
  • 7
    EXHAUST VALVE

    EXHAUST VALVE

    873114
    Back order
    £45.05
    0
  • 7
    EXAUST VALVE

    EXAUST VALVE

    484734
    8 in stock
    £11.79
    0
  • 8
    SPRING

    SPRING

    828480
    Back order
    £9.11
    0
  • 9
    VALVE HALF-CONE

    VALVE HALF-CONE

    285846
    202 in stock
    £1.63
    0
  • 10
    VALVE GASKET RING

    VALVE GASKET RING

    436438
    41 in stock
    £9.16
    0
  • 11
    THERMISTOR

    THERMISTOR

    82622R
    3 in stock
    £21.87
    0
  • 12
    CYLINDER HEAD GASKET 0,3 MM

    CYLINDER HEAD GASKET 0,3 MM

    831174
    Back order
    £16.02
    0
  • 16
    SCREW W/ FLANGE

    SCREW W/ FLANGE

    485603
    Back order
    £1.55
    0
  • 17
    NUT M8X1,25

    NUT M8X1,25

    411296
    19 in stock
    £1.63
    0
  • 18
    LOCATING DOWEL Ø11X10

    LOCATING DOWEL Ø11X10

    478115
    19 in stock
    £0.38
    0
  • 19
    LOCATING DOWEL Ø7,5X12

    LOCATING DOWEL Ø7,5X12

    277916
    29 in stock
    £5.30
    0
  • 20
    THERMOSTAT

    THERMOSTAT

    82831R
    Replaced by

    THERMOSTAT

    82831R5
    Discontinued
    Back order
    N/A
    £57.69
    0
  • 21
    HEX SOCKET SCREW M5X20

    HEX SOCKET SCREW M5X20

    845753
    Replaced by

    COVEX HEAD SCREW WITH TORX M5X20

    B016808
    1 in stock
    9 in stock
    £0.59
    £6.62
    0
    0
  • 23
    THERMOSTAT COVER

    THERMOSTAT COVER

    845604
    Replaced by

    THERMOSTAT COVER

    876943
    Discontinued
    Back order
    N/A
    £21.55
    0
  • 24
    BY-PASS PIPE

    BY-PASS PIPE

    434381
    Back order
    £7.76
    0
  • 25
    HOSE CLAMP

    HOSE CLAMP

    CM002903
    Back order
    £0.44
    0
  • 26
    BLEED VALVE CAP

    BLEED VALVE CAP

    063435
    24 in stock
    £2.38
    0
  • 27
    GASKET

    GASKET

    297027
    9 in stock
    £1.26
    0
  • 28
    BLEED SCREW

    BLEED SCREW

    845605
    3 in stock
    £12.85
    0
  • 29
    PLUG M6X10

    PLUG M6X10

    842360
    Back order
    £1.81
    0
  • 30
    O-RING

    O-RING

    478184
    Replaced by

    O-RING

    B017342
    19 in stock
    23 in stock
    £0.23
    £0.84
    0
    0
