Piaggio CARNABY 125 4T E3 2007-2010 (EMEA) Oil pump

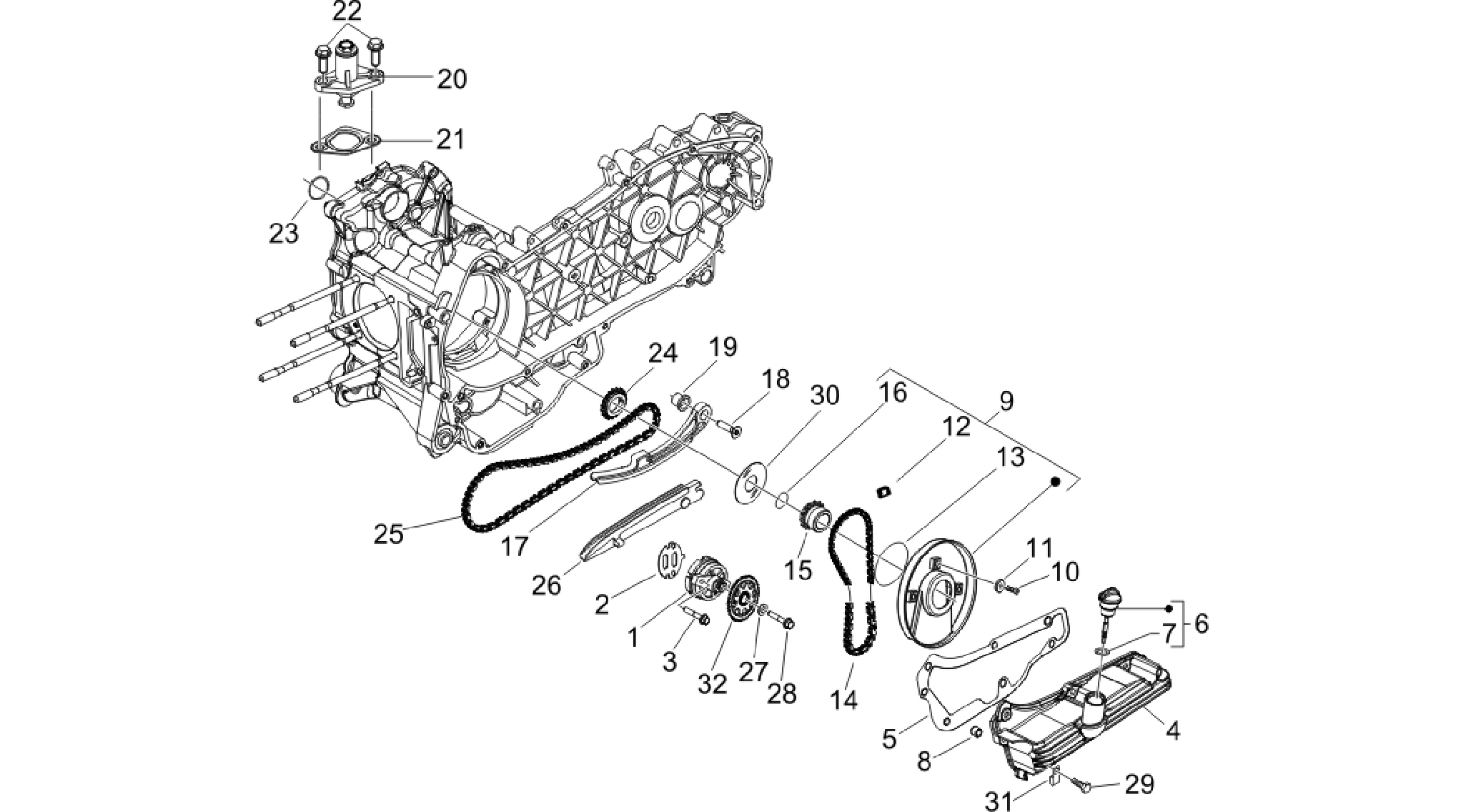

Oil pump

Position

Part Name

Stock

Price

1

OIL PUMP ASSEMBLY

82948R

3 in stock
£108.10

0
2

CARTER-OIL PUMP GASKET

847929

6 in stock
£0.98

0
3

FLANGED HEXAGON SCREW M5X35

829593

9 in stock
£1.06

0
4

MOTOR OIL CUP

846096

2 in stock
£65.18

0
5

GASKET

846098

1 in stock
£5.17

0
6

OIL PLUG ASSEMBLY

843364

10 in stock
£4.87

0
7

O-RING

479986

222 in stock
£0.38

0
8

LOCATING DOWEL Ø7,5X12

277916

29 in stock
£5.30

0
9

TIMING SYSTEM COVER

847116

Back order
£49.11

0
10

SELF-TAPPING SCREW M5X12

015585

142 in stock
£0.94

0
11

FLAT WASHER

487937

Back order
£1.00

0
12

OIL PUMP CHAIN DRIFT

434345

4 in stock
£6.04

0
13

GASKET RING

825620

17 in stock
£6.99

0
14

OIL PUMP CHAIN

82649R

3 in stock
£13.17

0
15

OIL PUMP CONTROL PINION

82783R

3 in stock
£19.00

0
16

GASKET RING

82538R

5 in stock
£13.21

0
17

CHAIN TENSIONER ROD

840510

10 in stock
£5.21

0
18

SCREW W/ FLANGE M6X25

414837
Replaced by

SCREW W/ FLANGE M6X25

B016774

19 in stock

42 in stock
£0.23

£0.95

0

0
19

CHAIN TENSIONER ROD SPACER

485868

Back order
£0.73

0
20

COMPLETE CHAIN TENSIONER

82650R
Replaced by

COMPLETE CHAIN TENSIONER

289919

Discontinued

Back order
N/A

£28.97

0
21

CYLINDER/CHAIN TENSIONER GASKET

847928

261 in stock
£2.69

0
22

FLANGED HEXAGON SCREW M6X16

B016777

9 in stock
£0.95

0
23

O-RING SEAL RING

825952

91 in stock
£0.66

0
24

TIMING CHAIN PINION

82782R

5 in stock
£18.85

0
25

CAMSHAFT CHAIN

82644R

1 in stock
£35.56

0
26

CHAIN TENSIONER SLIDING BLOCK

828308

9 in stock
£4.08

0
27

BELLEVILLE SPRING Ø6,4XØ20X2

436695

Back order
£1.74

0
28

FLANGED HEXAGON SCREW M6X14

B016426

Back order
£1.06

0
29

FLANGED HEXAGON SCREW M6X30

B016792

19 in stock
£0.95

0
30

OIL SEAL WASHER

483918

Back order
£1.06

0
31

HOSE CLAMP

564629

5 in stock
£2.90

0
32

OIL PUMP GEAR

287913

3 in stock
£7.03

0
