Piaggio BEVERLY 500 ie E3 2006-2008 (EMEA) Flywheel magneto cover - Oil filter

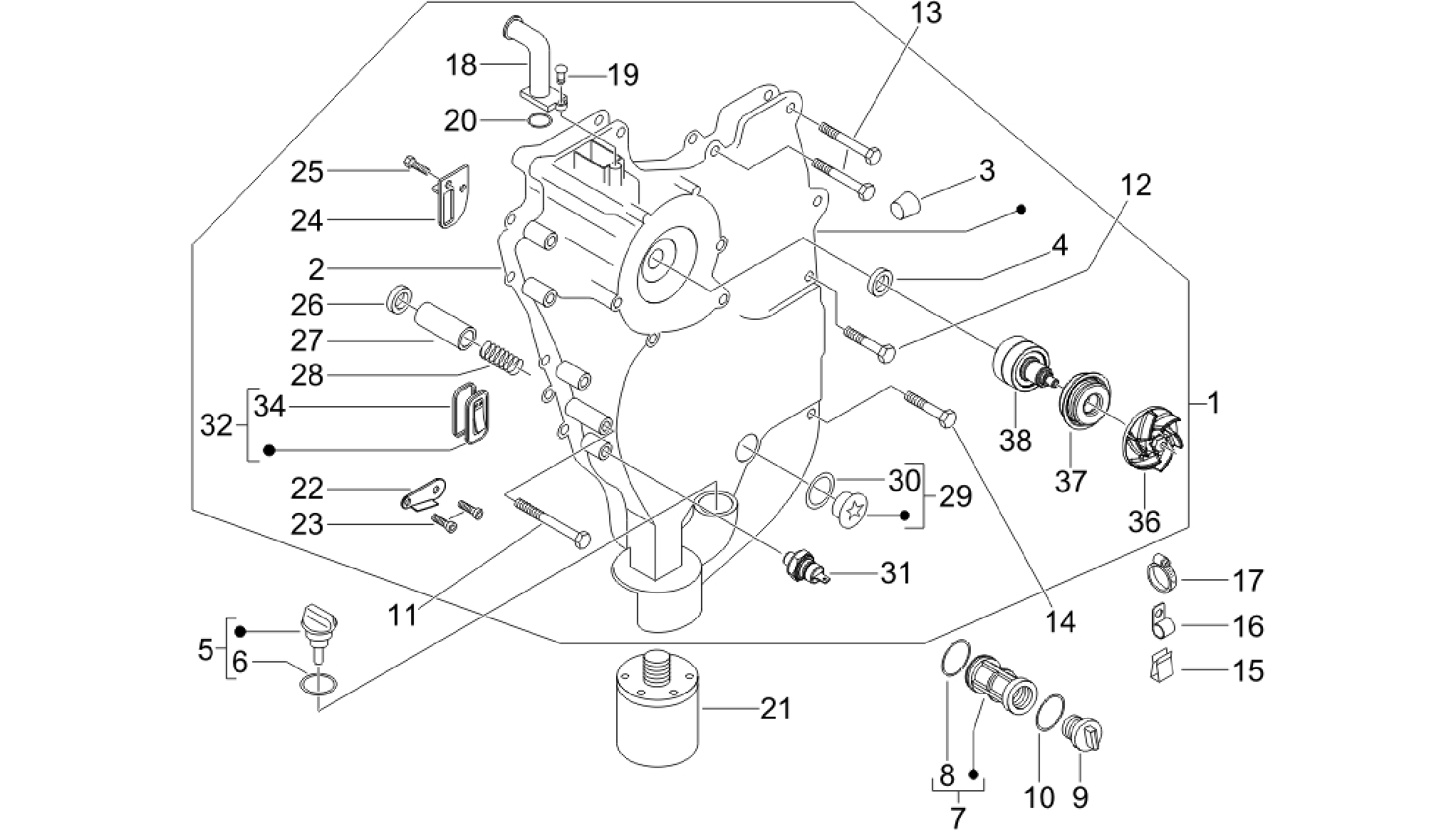

Flywheel magneto cover - Oil filter

Position

Part Name

Stock

Price

1

***FLY-WHEEL COVER

8482355

Back order
£134.40

0
2

FLYWHEEL HOUSING COVER GASKET

847649

Back order
£17.73

0
3

PLUG M12X1,5

411311

12 in stock
£1.20

0
4

FLAT WASHER 22X12,1X1

274246

49 in stock
£0.83

0
5

OIL DIP STICK

825665

6 in stock
£2.18

0
7

OIL FILTER

826033

7 in stock
£4.84

0
8

O-RING 20,35X1,78

288474

324 in stock
£0.43

0
9

OIL FILTER PLUG

826165

13 in stock
£18.27

0
9

OIL FILTER PLUG

82823R
Replaced by

OIL FILTER PLUG

826165

Discontinued

13 in stock
N/A

£18.27

0
10

O-RING 31,47X1,78

285536

23 in stock
£1.36

0
11

SCREW M6X70

434429

Back order
£2.01

0
12

SCREW W/ FLANGE M6X25

414837
Replaced by

SCREW W/ FLANGE M6X25

B016774

19 in stock

42 in stock
£0.23

£0.95

0

0
13

FLANGED HEXAGON SCREW M6X35

414838

105 in stock
£1.06

0
14

SCREW

414835

19 in stock
£0.13

0
15

SPRING

640925

Out of stock
£0.00
15

SPRING

584464

Back order
£0.87

0
16

***CLAMP

845230

Back order
£1.65

0
17

HOSE CLAMP

845978

3 in stock
£7.11

0
18

BREATEHR TUBE FOR CRANKASE

829047

3 in stock
£6.20

0
19

CROSS HEAD CYLINDER HEAD SCREW M5X12

015935
Replaced by

SCREW M5X16

015715

Discontinued

90 in stock
N/A

£0.47

0
20

O-RING

237553

8 in stock
£1.56

0
21

OIL FILTER

82883R

11 in stock
£9.46

0
21

OIL FILTER CPL.

82658R
Replaced by

OIL FILTER

82960R

47 in stock

Back order
£12.19

£14.77

0

0
22

PLATE

830886

Back order
£4.50

0
23

SCREW M5X10

018575

145 in stock
£0.08

0
24

VALVE TIGHTENING PLATE WITH U.P.

876060

Back order
£9.94

0
24

VALVE TIGHTENING PLATE WITH U.P.

828930

Back order
£5.60

0
25

SCREW M5X10

433800

Back order
£0.71

0
26

WASHER 10.5X16X2.5

486075

108 in stock
£1.10

0
27

OIL PRESSURE VALVE

829661

Back order
£9.53

0
28

SPRING

829486

Back order
£1.42

0
29

TIMING PLUG ASSEMBLY

829040
Replaced by

TIMING PLUG ASSEMBLY

8290405

Discontinued

Back order
N/A

£14.03

0
30

O-RING

479986

222 in stock
£0.38

0
31

OIL PRESSURE SENSOR

82580R
Replaced by

OIL PRESSURE SENSOR

641541

1 in stock

Back order
£7.00

£13.43

0

0
32

REED VALVE SUPPORT

82778R

Back order
£31.65

0
34

GASKET

828031

Back order
£1.77

0
36

WATER PUMP IMPELLER CPL.

827929

19 in stock
£3.36

0
37

GASKET RING

842595
Replaced by

OIL SEAL

82991R

Discontinued

4 in stock
N/A

£22.52

0
38

WATER PUMP SHAFT ASSY.

844438

2 in stock
£28.61

0
39

GASKET RING

873934

2 in stock
£8.34

0
39

GASKET RING

844439
Replaced by

GASKET RING

873934

2 in stock

2 in stock
£1.89

£8.34

0

0
