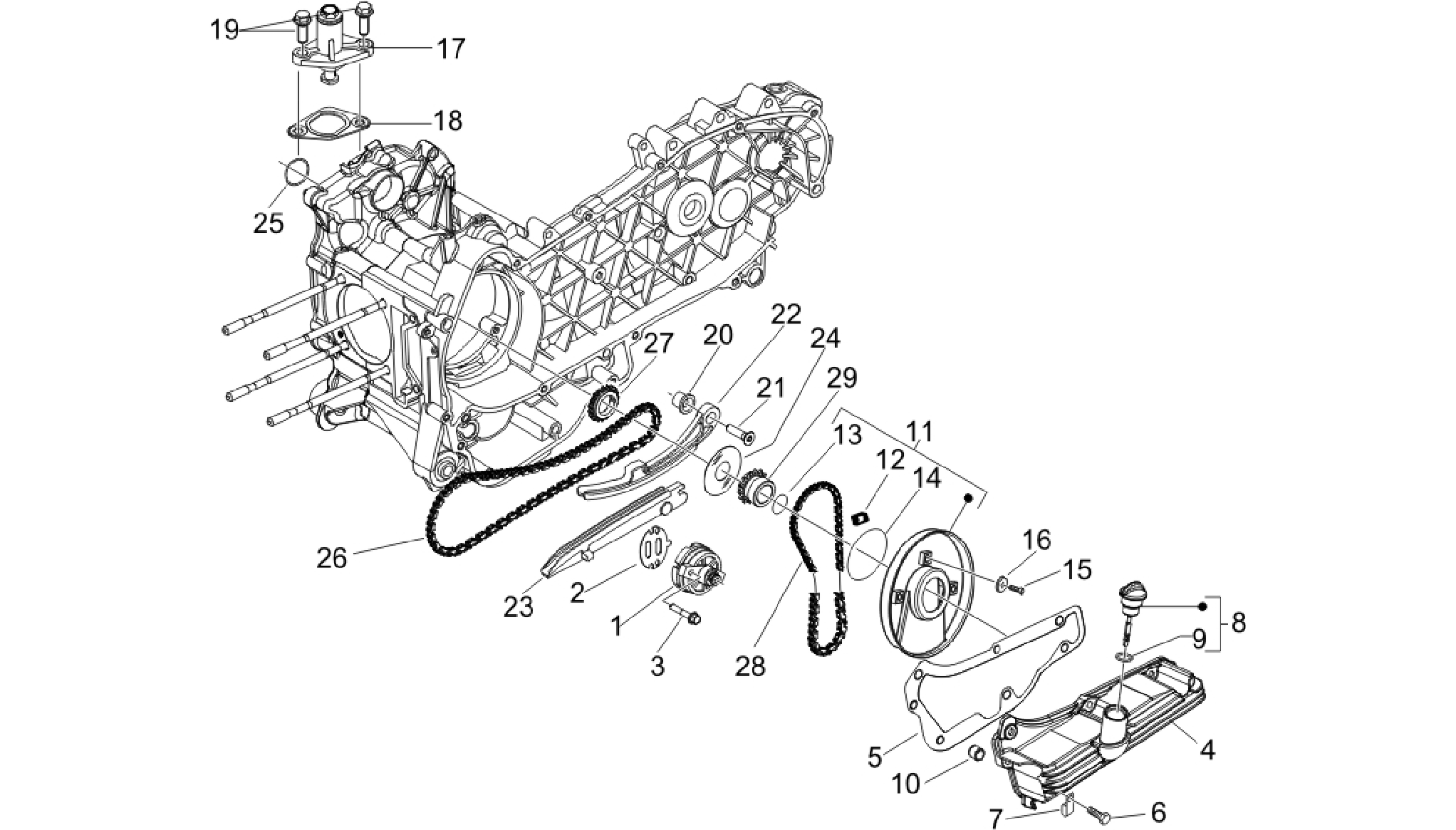

Piaggio Liberty 200 4T E3 2006-2008 (EMEA) Oil pump

Oil pump

Position

Part Name

Stock

Price

1

OIL PUMP ASSEMBLY

844352

Back order
£48.86

0
2

CARTER-OIL PUMP GASKET

847929

6 in stock
£0.98

0
3

FLANGED HEXAGON SCREW M5X35

829593

9 in stock
£1.06

0
4

MOTOR OIL CUP

843761

Back order
£57.94

0
5

SUMP GASKET

830128

12 in stock
£5.46

0
6

SCREW W/ FLANGE M6X30

289731

12 in stock
£0.27

0
7

RETAINER CLAMP

487824

Back order
£2.33

0
8

OIL PLUG ASSEMBLY

843364

10 in stock
£4.87

0
9

O-RING

479986

222 in stock
£0.38

0
10

LOCATING DOWEL Ø7,5X12

277916

29 in stock
£5.30

0
11

TIMING SYSTEM COVER

847116

Back order
£49.11

0
11

TIMING SYSTEM COVER

483775

Back order
£15.82

0
12

OIL PUMP CHAIN DRIFT

434345

4 in stock
£6.04

0
13

GASKET RING

82538R

5 in stock
£13.21

0
14

GASKET RING

825620

17 in stock
£6.99

0
15

SELF-TAPPING SCREW M5X12

015585

142 in stock
£0.94

0
16

FLAT WASHER

487937

Back order
£1.00

0
17

COMPLETE CHAIN TENSIONER

82650R
Replaced by

COMPLETE CHAIN TENSIONER

289919

Discontinued

Back order
N/A

£28.97

0
18

CYLINDER/CHAIN TENSIONER GASKET

847928

261 in stock
£2.69

0
19

SCREW W/ FLANGE M6X16

434541

20 in stock
£0.33

0
20

CHAIN TENSIONER ROD SPACER

485868

Back order
£0.73

0
21

SCREW W/ FLANGE M6X25

414837
Replaced by

SCREW W/ FLANGE M6X25

B016774

19 in stock

42 in stock
£0.23

£0.95

0

0
22

CHAIN TENSIONER ROD

840510

10 in stock
£5.21

0
23

CHAIN TENSIONER SLIDING BLOCK

828308

9 in stock
£4.08

0
24

OIL SEAL WASHER

483918

Back order
£1.06

0
25

O-RING SEAL RING

825952

91 in stock
£0.66

0
26

CAMSHAFT CHAIN

82643R

Back order
£47.33

0
27

TIMING CHAIN PINION

82782R

5 in stock
£18.85

0
28

OIL PUMP CHAIN

82649R

3 in stock
£13.17

0
29

OIL PUMP CONTROL PINION

82783R

3 in stock
£19.00

0
