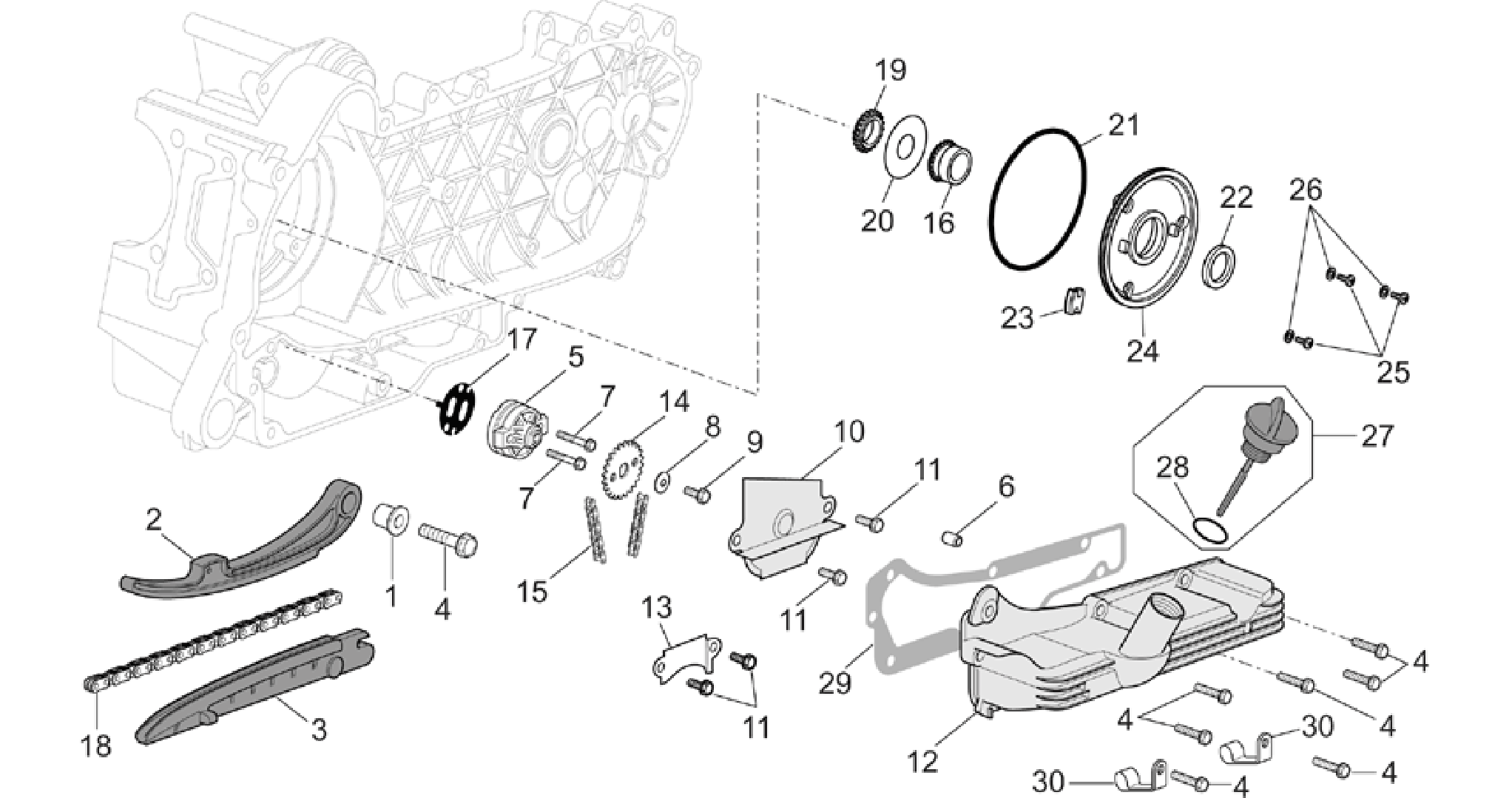

Aprilia Mojito 125-150 4T 2003-2007 (EMEA, NAFTA) Oil pump

Position

Part Name

Stock

Price

1

SPACER

AP8580090
Replaced by

CHAIN TENSIONER ROD SPACER

485868

Discontinued

Back order
N/A

£0.73

0
2

CHAIN TENSIONER ROD

AP8580156
Replaced by

CHAIN TENSIONER ROD

840510

5 in stock

10 in stock
£4.97

£4.97

0

0
3

CHAIN TENSIONER SLIDING BLOCK

AP8580157
Replaced by

CHAIN TENSIONER SLIDING BLOCK

828308

3 in stock

9 in stock
£3.89

£3.89

0

0
5

OIL PUMP ASSY.

AP8580102
Replaced by

OIL PUMP ASSEMBLY

82877R

2 in stock

2 in stock
£52.68

£52.68

0

0
6

LOCATING DOWEL

AP8551015
Replaced by

LOCATING DOWEL Ø7,5X12

277916

4 in stock

29 in stock
£5.04

£5.04

0

0
7

SCREW W/ FLANGE

AP8551029
Replaced by

FLANGED HEXAGON SCREW

433477

Discontinued

Back order
N/A

£2.40

0
8

BELLEVILLE SPRING

AP8550439
Replaced by

BELLEVILLE SPRING Ø6,4XØ20X2

436695

2 in stock

Back order
£1.65

£1.65

0

0
9

SCREW W/ FLANGE

AP8550556
Replaced by

SCREW W/ FLANGE M6X14

833722

Discontinued

Back order
N/A

£0.64

0
10

OIL BULHEAD

AP8580070
Replaced by

LOWER OIL BULKHEAD

483767

Discontinued

Back order
N/A

£7.91

0
11

SCREW W/ FLANGE

AP8551045
Replaced by

FLANGED HEXAGON SCREW

484123

Discontinued

63 in stock
N/A

£0.43

0
12

MOTOR OIL CUP

AP8580175
Replaced by

MOTOR OIL CUP

843761

Discontinued

Back order
N/A

£55.18

0
13

OIL BULHEAD

AP8580083
Replaced by

UPPER OIL BULKHEAD

485047

Discontinued

Back order
N/A

£9.79

0
14

OIL PUMP GEAR

AP8550380
Replaced by

OIL PUMP GEAR

287913

2 in stock

3 in stock
£6.70

£6.70

0

0
15

OIL PUMP CHAIN

AP8580131
Replaced by

OIL PUMP CHAIN

82649R

1 in stock

3 in stock
£12.55

£12.55

0

0
16

OIL PUMP CONTROL PINION

AP8580072
Replaced by

OIL PUMP CONTROL PINION

82783R

Discontinued

3 in stock
N/A

£18.10

0
17

GASKET

AP8580092
Replaced by

CARTER-OIL PUMP GASKET

847929

Discontinued

6 in stock
N/A

£0.94

0
18

CAMSHAFT CHAIN

AP8540048
Replaced by

CAMSHAFT CHAIN

82643R

Discontinued

Back order
N/A

£45.08

0
19

TIMING SYSTEM CHAIN PINION CPL

AP8580117

more info + more info -

Technical Specification: 150 cc version (M191M)[150] Euro1 homologation[E1] From engine M193M12249[MA] Country: Canadian[CA] United States of America[USA]

Replaced by

BOTTOM DIST. SPROKET LEADER 125

825595

1 in stock

1 in stock
£21.20

£21.20

0

0
19

TIMING SYSTEM CHAIN PINION CPL

AP8577033

more info + more info -

Technical Specification: 150 cc version (M191M)[150] Euro1 homologation[E1] From engine M193M12250[MB] Country: Canadian[CA] United States of America[USA]

Replaced by

TIMING CHAIN PINION

82782R

Discontinued

5 in stock
N/A

£17.95

0
20

OIL SEAL WASHER

AP8580077
Replaced by

OIL SEAL WASHER

483918

Discontinued

Back order
N/A

£1.00

0
21

O-RING

AP8580118
Replaced by

GASKET RING

825620

4 in stock

17 in stock
£6.66

£6.66

0

0
22

GASKET RING

AP8580113
Replaced by

GASKET RING

82538R

Discontinued

5 in stock
N/A

£12.58

0
23

OIL PUMP CHAIN DRIFT

AP8550522
Replaced by

OIL PUMP CHAIN DRIFT

434345

Discontinued

4 in stock
N/A

£5.76

0
24

TIMING SYSTEM COVER

AP8580169
Replaced by

TIMING SYSTEM COVER

847116

Discontinued

Back order
N/A

£46.77

0
25

SCREW W/ FLANGE M6X25

AP8550173
Replaced by

SCREW M6X25

830487

18 in stock

47 in stock
£0.84

£0.84

0

0
26

WASHER

AP8580107
Replaced by

PLAIN WASHER

487937

27 in stock

Back order
£1.00

£1.00

0

0
27

OIL FILLER PLUG

AP8580144
Replaced by

OIL PLUG ASSEMBLY

843364

Discontinued

10 in stock
N/A

£4.64

0
28

GASKET

AP8550417
Replaced by

O-RING

479986

81 in stock

222 in stock
£0.42

£0.42

0

0
29

GASKET

AP8580185
Replaced by

SUMP GASKET

830128

Discontinued

12 in stock
N/A

£5.20

0
30

HOSE CLAMP

AP8540019
Replaced by

RETAINER CLAMP

487824

Discontinued

Back order
N/A

£2.33

0
