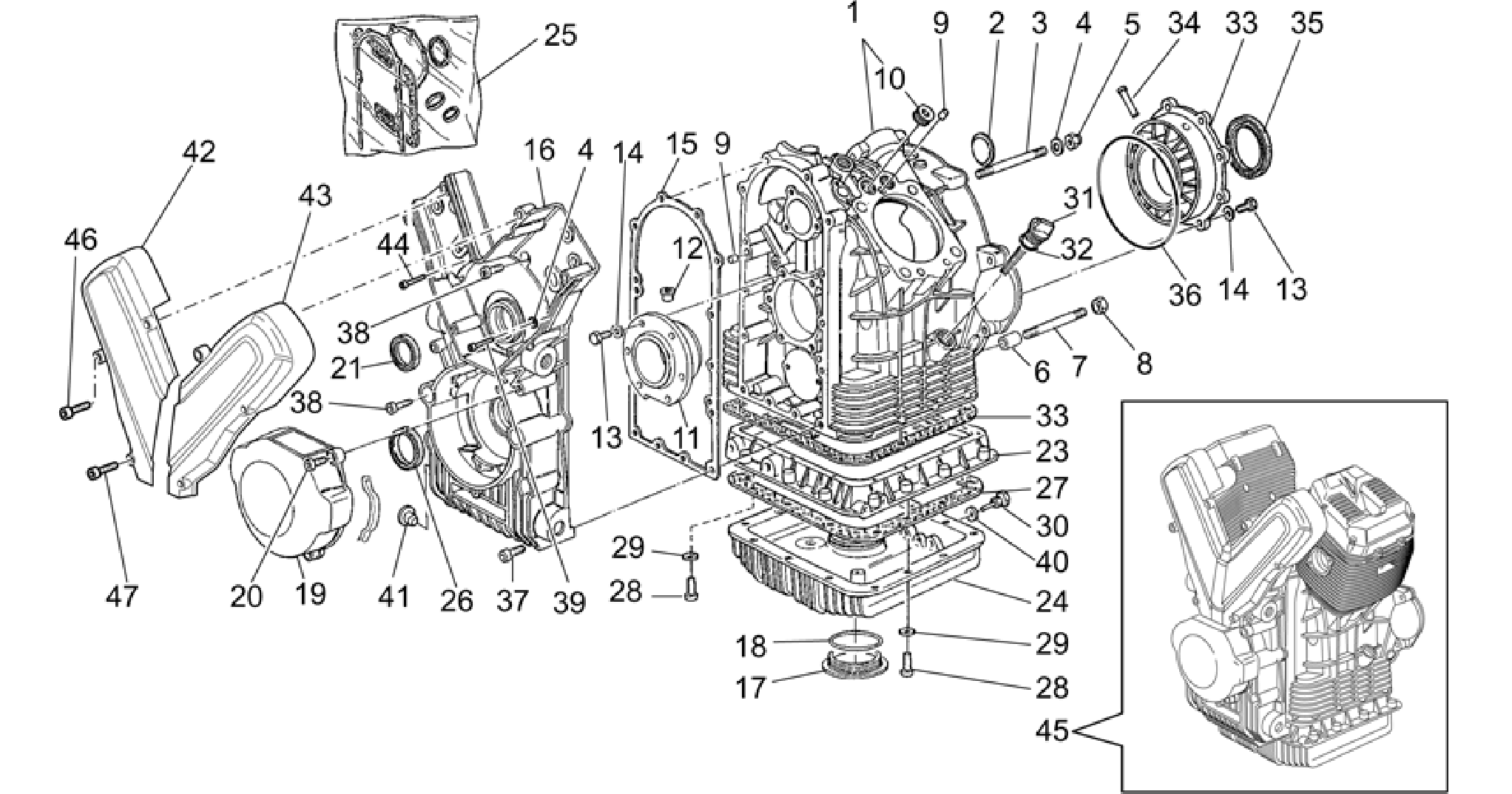

Moto Guzzi MGS-01 Corsa 1200 2004-2007 (EMEA, NAFTA) Crankcase

Position

Part Name

Stock

Price

1

CRANKCASE BLACK

GU02000750

Back order
£901.28

0
2

DISC

GU12003900

Back order
£6.08

0
3

STUD BOLT

GU96508051

2 in stock
£10.02

0
4

WASHER 8,4X15X1,5

GU95008208

4 in stock
£0.95

0
5

NUT

GU92781081

Back order
£7.99

0
6

COUPLING BUSH

GU12018900

Back order
£8.02

0
7

STUD BOLT M8X97

GU96508097

Back order
£17.90

0
7

STUD BOLT M8X87

GU96508087

Back order
£17.75

0
7

STUD BOLT M8X77

GU96508077

Back order
£17.65

0
7

STUD BOLT M8X66

GU96508066

Back order
£37.51

0
8

NUT

GU92602208

Back order
£0.39

0
9

PIN

GU95512081

Back order
£3.23

0
10

COVER

GU12065400

Back order
£23.73

0
11

COMPLETE FLANGE

GU02011950

more info + more info -

Technical Specification: Tolerance standard[std]

Replaced by

COMPLETE FLANGE

GU14011900

Discontinued

Back order
N/A

£115.95

0
12

PIN

GU02012250

Back order
£11.38

0
13

SCREW W/ FLANGE M8X25

AP8152287

16 in stock
£4.62

0
14

SPRING WASHER 8X15X0,3

GU61270300

8 in stock
£1.27

0
15

COVER GASKET

GU05001230

2 in stock
£13.25

0
16

TIMING COVER BLACK

GU02001450

Back order
£399.58

0
17

PLUG

GU01003400

1 in stock
£77.44

0
18

O-RING

GU90706948

8 in stock
£10.00

0
19

COVER

GU02001650

Back order
£449.29

0
20

HEX SOCKET SCREW M6X06

GU98350306

Back order
£0.16

0
21

GASKET RING 28X38X7-VITON

GU90402843

Back order
£34.40

0
22

GASKET

GU01003650

11 in stock
£9.54

0
23

FLANGE BLACK

GU01003290

Back order
£124.28

0
24

OIL SUMP BLACK

GU01003590

Back order
£162.35

0
25

GASKET SET

GU02998950

Back order
£490.93

0
26

GASKET RING 30X40X7-VITON

GU90403041

Back order
£24.25

0
27

GASKET

GU01003600

1 in stock
£9.54

0
28

SCREW

GU98622322

Back order
£0.76

0
29

WASHER 6,15X11X0,8

GU95004206
Replaced by

WASHER 6,15X11X0,8

GU95008206

Discontinued

11 in stock
N/A

£1.85

0
30

OIL UNLOAD PLUG M10X1

GU31003766

6 in stock
£11.70

0
31

OIL LEVEL PLUG

GU05004930

1 in stock
£13.66

0
32

O-RING 17,86X2,62

GU90706178

9 in stock
£0.74

0
33

FLANGE MIN.0,6 MM

GU12011403

more info + more info -

Technical Specification: Tolerance min.[M]

Back order
£345.47

0
33

FLANGE MIN.0,4 MM

GU12011402

more info + more info -

Technical Specification: Tolerance min.[M]

Back order
£331.61

0
33

FLANGE MIN.0,2 MM

GU12011401

more info + more info -

Technical Specification: Tolerance min.[M]

Back order
£331.61

0
33

COMPLETE FLANGE

GU12011400

more info + more info -

Technical Specification: Tolerance standard[std]

Back order
£126.05

0
34

PIN

GU02011750

Back order
£18.55

0
35

GASKET RING

GU90405367

1 in stock
£26.49

0
36

O-RING

GU90706981

Back order
£12.03

0
37

HEX SOCKET SCREW M6X35

GU98680335
Replaced by

HEX SOCKET SCREW M6X35

AP8150285

5 in stock

93 in stock
£1.56

£1.56

0

0
38

HEX SOCKET SCREW

GU98622325

Back order
£0.76

0
39

HEX SOCKET SCREW

GU98680445

15 in stock
£0.76

0
40

GASKET

GU10528900

8 in stock
£3.30

0
41

BUSHING

GU02002150

Back order
£21.69

0
42

RH COVER

GU02056850

Back order
£1,157.58

0
43

LH COVER

GU02056851

Back order
£716.43

0
44

HEX SOCKET SCREW

GU98680345

9 in stock
£1.85

0
45

ENGINE BLACK

GU02991050

Back order
£7,445.51

0
46

HEX SOCKET SCREW

GU98370622

2 in stock
£13.19

0
47

HEX SOCKET SCREW M6X10

GU98370609

Back order
£1.51

0
