Moto Guzzi California Alum./Tit. PI Cat. 1100 2003-2004 (APAC, EMEA, NAFTA) Crank-case

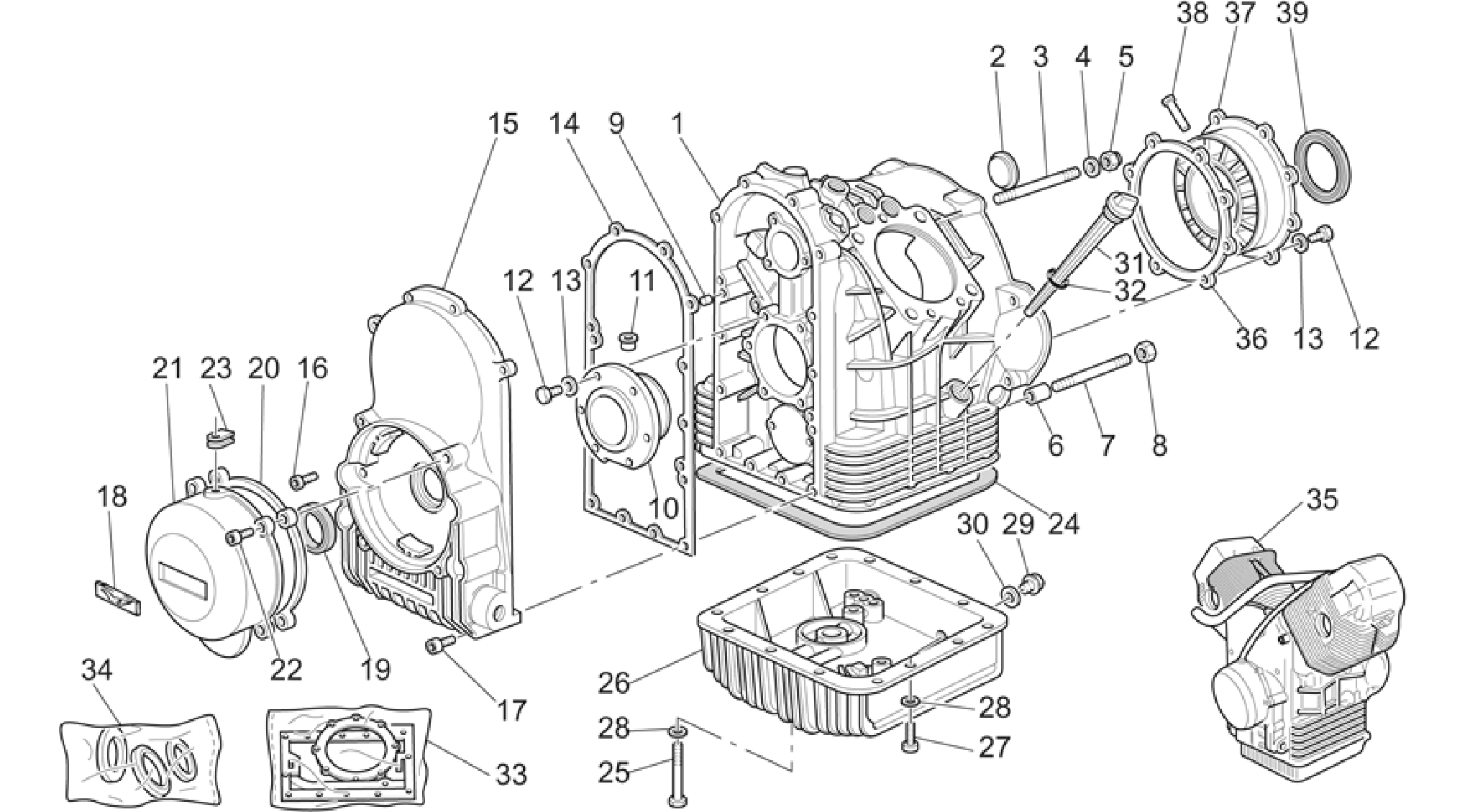

Crank-case
Skip to results list
Position
Part Name
Stock
Price
  • 1
    CRANKCASE BLACK

    CRANKCASE BLACK

    GU03000756
    more info + more info -
    Technical Specification: From engine number KN 15087[M2]
    Back order
    £1,020.78
    0
  • 1
    CRANKCASE BLACK

    CRANKCASE BLACK

    GU03000755
    more info + more info -
    Technical Specification: Up to engine number KN 15086[M1]
    Replaced by

    CRANKCASE BLACK

    GU03000756
    more info + more info -
    Technical Specification: From engine number KN 15087[M2]
    Discontinued
    Back order
    N/A
    £1,020.78
    0
  • 2
    DISC

    DISC

    GU12003900
    Back order
    £6.08
    0
  • 3
    STUD BOLT M8X66

    STUD BOLT M8X66

    GU96508066
    Back order
    £37.51
    0
  • 4
    WASHER 8,4X14,57X1,6

    WASHER 8,4X14,57X1,6

    GU95005308
    1 in stock
    £0.94
    0
  • 5
    CAP NUT M8X1,25

    CAP NUT M8X1,25

    GU92787008
    3 in stock
    £1.12
    0
  • 6
    COUPLING BUSH

    COUPLING BUSH

    GU12018900
    Back order
    £8.02
    0
  • 7
    STUD BOLT M8X75

    STUD BOLT M8X75

    GU96508075
    Back order
    £10.02
    0
  • 8
    NUT M8X1,25

    NUT M8X1,25

    GU92606208
    Back order
    £0.74
    0
  • 9
    PIN

    PIN

    GU95512081
    Back order
    £3.23
    0
  • 10
    FLANGE MIN.0,2 MM

    FLANGE MIN.0,2 MM

    GU14011901
    Back order
    £331.61
    0
  • 10
    COMPLETE FLANGE

    COMPLETE FLANGE

    GU14011900
    Back order
    £115.95
    0
  • 11
    PIN

    PIN

    GU12012200
    Back order
    £14.99
    0
  • 12
    HEX SCREW M8X25

    HEX SCREW M8X25

    GU98084425
    4 in stock
    £0.76
    0
  • 13
    WASHER 8,4X15

    WASHER 8,4X15

    GU03270300
    Back order
    £0.16
    0
  • 14
    COVER GASKET

    COVER GASKET

    GU12001200
    Replaced by

    COVER GASKET

    GU05001230
    Discontinued
    2 in stock
    N/A
    £13.25
    0
  • 15
    TIMING COVER BLACK

    TIMING COVER BLACK

    GU03001461
    Back order
    £334.85
    0
  • 16
    HEX SOCKET SCREW M6X25

    HEX SOCKET SCREW M6X25

    GU98682325
    7 in stock
    £0.94
    0
  • 17
    HEX SOCKET SCREW M6X35

    HEX SOCKET SCREW M6X35

    GU98680335
    Replaced by

    HEX SOCKET SCREW M6X35

    AP8150285
    5 in stock
    93 in stock
    £1.56
    £1.56
    0
    0
  • 18
    ADHESIVE LABEL

    ADHESIVE LABEL

    GU02517700
    1 in stock
    £19.62
    0
  • 19
    GASKET RING 28X38X7

    GASKET RING 28X38X7

    GU90402840
    1 in stock
    £11.39
    0
  • 20
    FLANGE

    FLANGE

    GU18001150
    1 in stock
    £12.94
    0
  • 21
    ALTERNATOR COVER GREY

    ALTERNATOR COVER GREY

    GU01001630
    Back order
    £48.96
    0
  • 22
    SCREW

    SCREW

    GU98310631
    9 in stock
    £1.17
    0
  • 23
    RUBBER SPACER

    RUBBER SPACER

    GU19007700
    Back order
    £4.35
    0
  • 24
    SUMP GASKET

    SUMP GASKET

    GU14003600
    Back order
    £9.18
    0
  • 25
    SCREW

    SCREW

    GU98082390
    7 in stock
    £3.90
    0
  • 26
    OIL SUMP BLACK

    OIL SUMP BLACK

    GU03003555
    Replaced by

    OIL SUMP BLACK

    9764511
    Discontinued
    Back order
    N/A
    £109.68
    0
  • 28
    WASHER 6,15X11X0,8

    WASHER 6,15X11X0,8

    GU95008206
    11 in stock
    £1.85
    0
  • 29
    OIL UNLOAD PLUG

    OIL UNLOAD PLUG

    GU12003702
    4 in stock
    £12.68
    0
  • 30
    GASKET 20,1X28X2

    GASKET 20,1X28X2

    GU95100709
    15 in stock
    £3.92
    0
  • 31
    OIL PLUG

    OIL PLUG

    GU30004910
    Back order
    £10.63
    0
  • 32
    O-RING 17,86X2,62

    O-RING 17,86X2,62

    GU90706178
    9 in stock
    £0.74
    0
  • 33
    GASKETS SET

    GASKETS SET

    GU30999060
    1 in stock
    £135.28
    0
  • 34
    ENGINE OIL SEAL KIT

    ENGINE OIL SEAL KIT

    GU17999550
    Back order
    £178.92
    0
  • 35
    ENGINE BLACK

    ENGINE BLACK

    GU03991068
    more info + more info -
    Technical Specification: Titanium version 2003[TI]
    Back order
    £0.00
    0
  • 35
    ENGINE BLACK

    ENGINE BLACK

    GU03991067
    more info + more info -
    Technical Specification: Aluminium version 2003[AL]
    Back order
    £0.00
    0
  • 36
    GASKET

    GASKET

    GU12011800
    Replaced by

    GASKET

    GU05011830
    Discontinued
    3 in stock
    N/A
    £7.86
    0
  • 37
    FLANGE MIN.0,6 MM

    FLANGE MIN.0,6 MM

    GU12011403
    Back order
    £345.47
    0
  • 37
    FLANGE MIN.0,4 MM

    FLANGE MIN.0,4 MM

    GU12011402
    Back order
    £331.61
    0
  • 37
    FLANGE MIN.0,2 MM

    FLANGE MIN.0,2 MM

    GU12011401
    Back order
    £331.61
    0
  • 37
    COMPLETE FLANGE

    COMPLETE FLANGE

    GU12011400
    Back order
    £126.05
    0
  • 38
    PIN

    PIN

    GU12011700
    Back order
    £11.99
    0
  • 39
    GASKET RING

    GASKET RING

    GU90405367
    1 in stock
    £26.49
    0
