Moto Guzzi GRISO V IE 850 2006-2007 (EMEA-NAFTA) Electrical system I

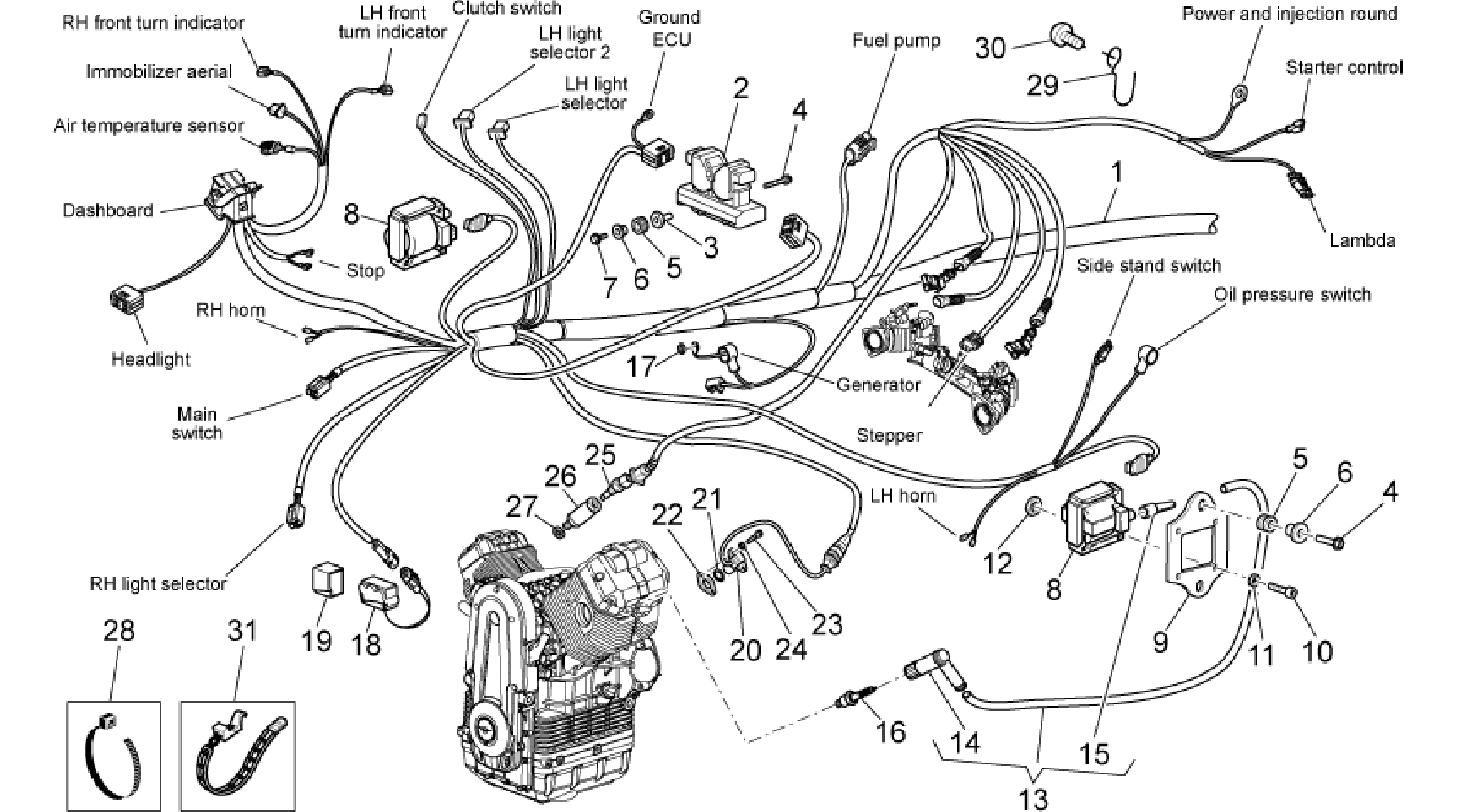

Electrical system I
Skip to results list
Position
Part Name
Stock
Price
  • 1
    MAIN WIRING HARNESS

    MAIN WIRING HARNESS

    GU06747100
    more info + more info -
    Technical Specification: With rotary switch,[V1]
    Back order
    £959.91
    0
  • 1
    MAIN WIRING HARNESS

    MAIN WIRING HARNESS

    978150
    more info + more info -
    Technical Specification: With linear switch,[V2]
    Back order
    £1,001.51
    0
  • 2
    ECU

    ECU

    977298
    1 in stock
    £1,025.72
    0
  • 3
    BUSH

    BUSH

    GU05729230
    Back order
    £8.02
    0
  • 4
    SCREW W/ FLANGE M6X20

    SCREW W/ FLANGE M6X20

    AP8152279
    16 in stock
    £1.48
    0
  • 5
    RUBBER SPACER

    RUBBER SPACER

    AP8120030
    10 in stock
    £1.09
    0
  • 6
    T BUSH

    T BUSH

    AP8221023
    Back order
    £1.30
    0
  • 7
    SCREW W/ FLANGE M6X35

    SCREW W/ FLANGE M6X35

    AP8152282
    106 in stock
    £1.00
    0
  • 8
    HT COIL

    HT COIL

    GU30716500
    Back order
    £156.83
    0
  • 9
    COIL HOLDER

    COIL HOLDER

    GU05716730
    Back order
    £8.03
    0
  • 10
    HEX SOCKET SCREW

    HEX SOCKET SCREW

    GU98682125
    Back order
    £0.94
    0
  • 11
    WASHER 4,3X8X0,5

    WASHER 4,3X8X0,5

    GU95008204
    2 in stock
    £0.63
    0
  • 12
    NUT M4X0,7

    NUT M4X0,7

    GU92630104
    Back order
    £0.76
    0
  • 13
    HT WIRE

    HT WIRE

    GU06718300
    Back order
    £48.78
    0
  • 14
    SPARKPLUG CAP

    SPARKPLUG CAP

    GU03717450
    2 in stock
    £12.82
    0
  • 15
    CAP

    CAP

    GU14717600
    1 in stock
    £2.97
    0
  • 16
    SPARK PLUG NGK BPR6ES

    SPARK PLUG NGK BPR6ES

    GU30717061
    Back order
    £6.76
    0
  • 17
    SELF-LOCKING NUT M6

    SELF-LOCKING NUT M6

    AP8152299
    18 in stock
    £1.49
    0
  • 18
    INCLINATION SENSOR

    INCLINATION SENSOR

    AP8124266
    Replaced by

    FALL SENSOR

    584509
    4 in stock
    Back order
    £78.89
    £78.89
    0
    0
  • 19
    RUBBER SENSOR SUPPORT

    RUBBER SENSOR SUPPORT

    AP8144046
    15 in stock
    £13.77
    0
  • 20
    PHASE/REVOLUTION SENSOR

    PHASE/REVOLUTION SENSOR

    GU01721600
    Back order
    £245.94
    0
  • 21
    O-RING

    O-RING

    GU90706141
    Replaced by

    O-RING

    847180
    Discontinued
    19 in stock
    N/A
    £2.23
    0
  • 22
    GASKET 0,5 MM

    GASKET 0,5 MM

    GU29722760
    3 in stock
    £2.60
    0
  • 22
    GASKET 1,5 MM

    GASKET 1,5 MM

    GU01722705
    7 in stock
    £2.60
    0
  • 22
    GASKET 1 MM

    GASKET 1 MM

    GU01722704
    more info + more info -
    mm
    1 in stock
    £2.59
    0
  • 22
    GASKET

    GASKET

    GU01722703
    Back order
    £2.60
    0
  • 22
    GASKET 0,6 MM

    GASKET 0,6 MM

    GU01722702
    Back order
    £2.60
    0
  • 22
    GASKET 0,4 MM

    GASKET 0,4 MM

    GU01722701
    Back order
    £2.60
    0
  • 22
    GASKET 0,3 MM

    GASKET 0,3 MM

    GU01722700
    5 in stock
    £2.60
    0
  • 23
    HEX SOCKET SCREW M5X12

    HEX SOCKET SCREW M5X12

    GU98682212
    Back order
    £0.79
    0
  • 24
    WASHER 5,3X10X0,8

    WASHER 5,3X10X0,8

    GU95008205
    3 in stock
    £0.94
    0
  • 25
    OIL TEMPERATURE SENSOR

    OIL TEMPERATURE SENSOR

    GU29729461
    5 in stock
    £111.19
    0
  • 26
    SENSOR SUPPORT

    SENSOR SUPPORT

    GU03163330
    Back order
    £50.83
    0
  • 27
    WASHER 10,2X18X2

    WASHER 10,2X18X2

    GU95008210
    7 in stock
    £0.63
    0
  • 28
    HOSE CLAMP 3,6X375

    HOSE CLAMP 3,6X375

    GU93304390
    Back order
    £1.53
    0
  • 28
    HOSE CLAMP 2,4X92

    HOSE CLAMP 2,4X92

    GU49609601
    Back order
    £0.67
    0
  • 28
    HOSE CLAMP 3,6X20,6

    HOSE CLAMP 3,6X20,6

    GU14609650
    Back order
    £0.76
    0
  • 29
    FAIRLEAD

    FAIRLEAD

    AP8121475
    Back order
    £3.62
    0
  • 30
    SCREW W/ FLANGE

    SCREW W/ FLANGE

    AP8152285
    30 in stock
    £1.49
    0
  • 31
    HOSE CLAMP

    HOSE CLAMP

    GU06609600
    Back order
    £1.87
    0
