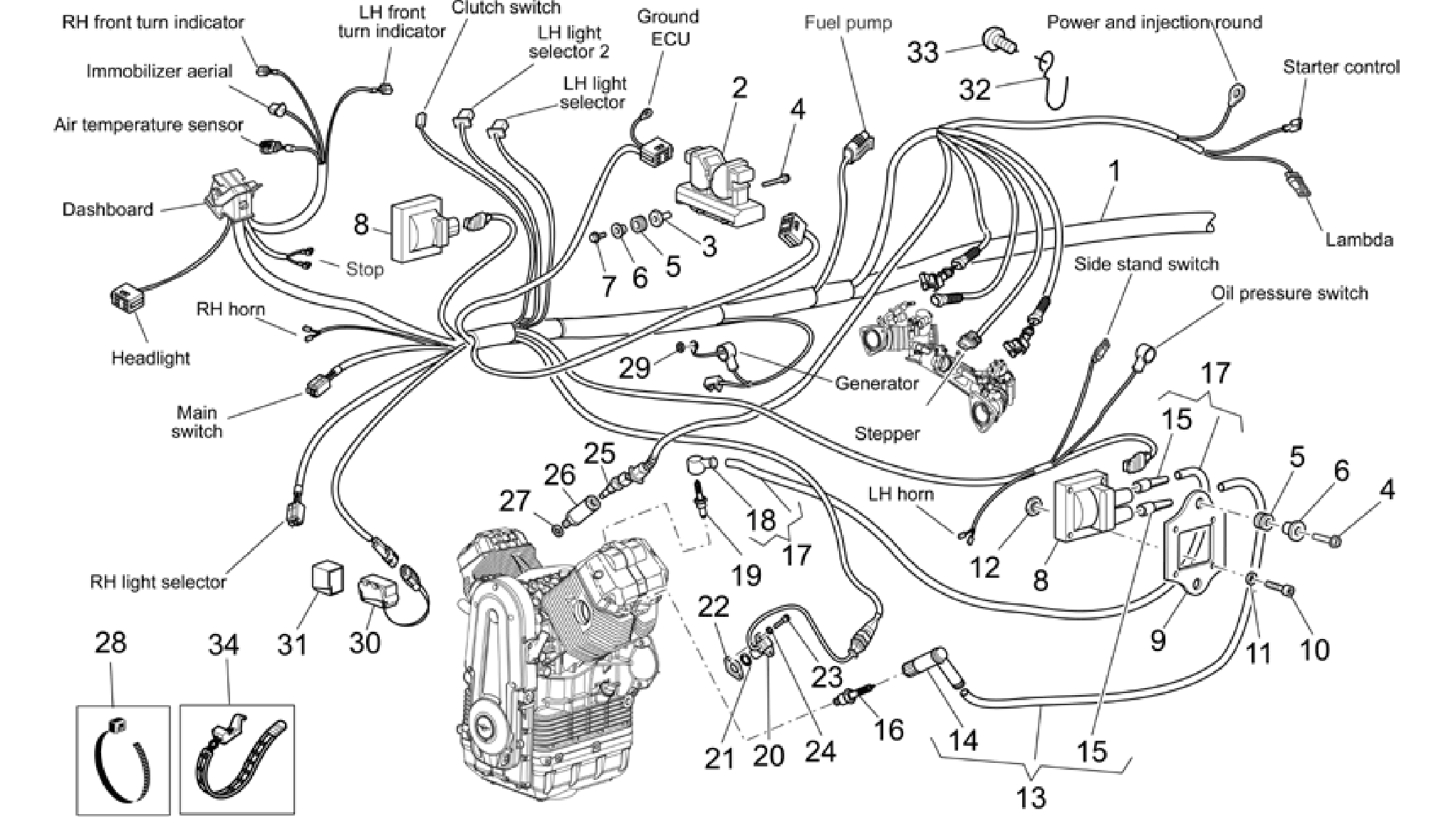

Moto Guzzi GRISO V IE 1100 2005-2008 (EMEA-APAC-NAFTA) Electrical system I

Position

Part Name

Stock

Price

1

MAIN WIRING HARNESS

GU06747100

more info + more info -

Technical Specification: With rotating switch (Tab.02 pos.16)[V1]

Back order
£959.91

0
1

MAIN WIRING HARNESS

978150

more info + more info -

Technical Specification: with linear switch (Tab.02 pos.24) [V2]

Back order
£1,001.51

0
2

ECU

GU06729500

Back order
£617.22

0
3

BUSH

GU05729230

Back order
£8.02

0
4

SCREW W/ FLANGE M6X20

AP8152279

16 in stock
£1.48

0
5

RUBBER SPACER

AP8120030

10 in stock
£1.09

0
6

T BUSH

AP8221023

Back order
£1.30

0
7

SCREW W/ FLANGE M6X35

AP8152282

106 in stock
£1.00

0
8

HT COIL

GU05716530

Back order
£82.53

0
9

COIL HOLDER

GU05716730

Back order
£8.03

0
10

SCREW M4X25

GU98680125

Back order
£3.90

0
11

WASHER 4,3X8X0,5

GU95008204

2 in stock
£0.63

0
12

NUT M4X0,7

GU92630104

Back order
£0.76

0
13

HT WIRE

GU06718300

Back order
£48.78

0
14

SPARKPLUG CAP

GU03717450

2 in stock
£12.82

0
15

CAP

GU14717600

1 in stock
£2.97

0
16

SPARK PLUG NGK BPR6ES

GU30717061

Back order
£6.76

0
17

HT WIRE

GU06718301

Back order
£27.63

0
18

SPARKPLUG CAP

GU06717400

1 in stock
£22.74

0
19

SPARK PLUG NGK PMR8B

GU05717030

6 in stock
£46.98

0
20

PHASE/REVOLUTION SENSOR

GU01721600

Back order
£245.94

0
21

O-RING

GU90706141
Replaced by

O-RING

847180

Discontinued

19 in stock
N/A

£2.23

0
22

GASKET 0,5 MM

GU29722760

3 in stock
£2.60

0
22

GASKET 1,5 MM

GU01722705

7 in stock
£2.60

0
22

GASKET 1 MM

GU01722704

1 in stock
£2.59

0
22

GASKET

GU01722703

Back order
£2.60

0
22

GASKET 0,6 MM

GU01722702

Back order
£2.60

0
22

GASKET 0,4 MM

GU01722701

Back order
£2.60

0
22

GASKET 0,3 MM

GU01722700

5 in stock
£2.60

0
23

HEX SOCKET SCREW M5X12

GU98682212

Back order
£0.79

0
24

WASHER 5,3X10X0,8

GU95008205

3 in stock
£0.94

0
25

OIL TEMPERATURE SENSOR

GU29729461

5 in stock
£111.19

0
26

SENSOR SUPPORT

GU03163330

Back order
£50.83

0
27

WASHER 10,2X18X2

GU95008210

7 in stock
£0.63

0
28

HOSE CLAMP 3,6X375

GU93304390

Back order
£1.53

0
28

HOSE CLAMP 2,4X92

GU49609601

Back order
£0.67

0
28

HOSE CLAMP 3,6X20,6

GU14609650

Back order
£0.76

0
29

SELF-LOCKING NUT M6

AP8152299

18 in stock
£1.49

0
30

INCLINATION SENSOR

AP8124266
Replaced by

FALL SENSOR

584509

4 in stock

Back order
£78.89

£78.89

0

0
31

RUBBER SENSOR SUPPORT

AP8144046

15 in stock
£13.77

0
32

FAIRLEAD

AP8121475

Back order
£3.62

0
33

SCREW W/ FLANGE

AP8152285

30 in stock
£1.49

0
34

HOSE CLAMP

GU06609600

Back order
£1.87

0
