Moto Guzzi GRISO V IE 1100 2005-2008 (EMEA-APAC-NAFTA) Cylinder head and valves I

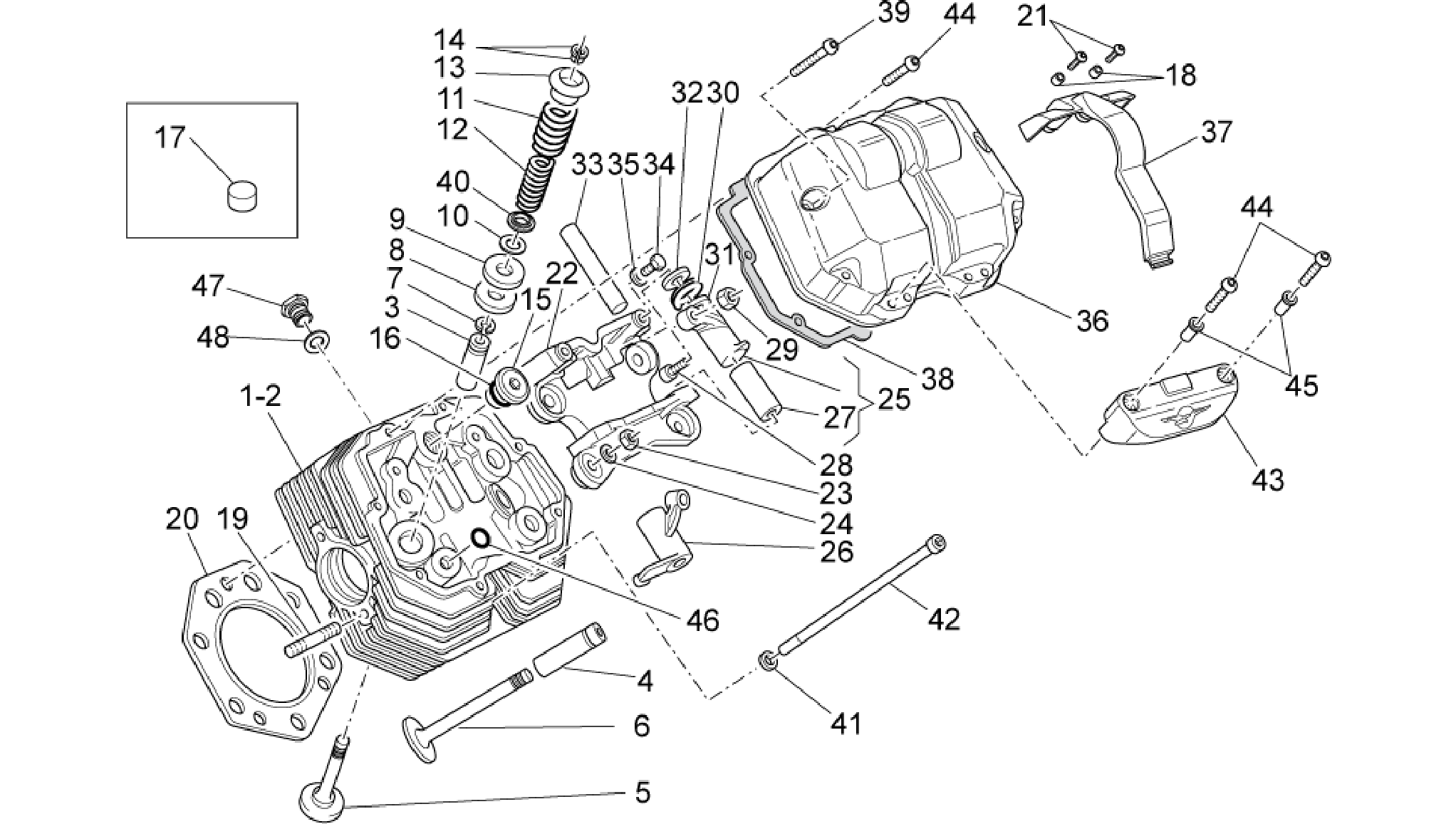

Cylinder head and valves I
Skip to results list
Position
Part Name
Stock
Price
  • 1
    RH HEAD ASSY W/H VALVE GREY

    RH HEAD ASSY W/H VALVE GREY

    GU05022132
    more info + more info -
    Technical Specification: From engine KS12285[M4] Up to engine < KS13769[M7]
    Back order
    £1,165.75
    0
  • 1
    RH HEAD ASSY W/H VALVE

    RH HEAD ASSY W/H VALVE

    GU05022130
    more info + more info -
    Technical Specification: Until engine < KS12284[M3]
    Back order
    £264.90
    0
  • 2
    LH HEAD ASSY WITHOUT VALVE GREY

    LH HEAD ASSY WITHOUT VALVE GREY

    GU05022232
    more info + more info -
    Technical Specification: From engine KS12285[M4] Up to engine < KS13769[M7]
    Back order
    £1,509.70
    0
  • 2
    LH HEAD ASSY WITH VALVE

    LH HEAD ASSY WITH VALVE

    GU05022230
    more info + more info -
    Technical Specification: Until engine < KS12284[M3]
    Replaced by

    LH HEAD ASSY WITH VALVE

    GU05022231
    Discontinued
    Back order
    N/A
    £1,119.07
    0
  • 3
    EXHAUST VALVE GUIDE

    EXHAUST VALVE GUIDE

    GU13036801
    more info + more info -
    Technical Specification: Until engine < KS12284[M3]
    Back order
    £58.33
    0
  • 4
    INTAKE VALVE GUIDE

    INTAKE VALVE GUIDE

    GU14036860
    more info + more info -
    Technical Specification: Until engine < KS12284[M3]
    Back order
    £38.43
    0
  • 5
    EXHAUST VALVE

    EXHAUST VALVE

    GU05036131
    Back order
    £81.11
    0
  • 6
    INTAKE VALVE

    INTAKE VALVE

    GU05036030
    Back order
    £55.59
    0
  • 7
    SNAP RING

    SNAP RING

    GU90353016
    Back order
    £0.76
    0
  • 8
    WASHER 14,2X31X1

    WASHER 14,2X31X1

    GU13037200
    Back order
    £2.69
    0
  • 9
    WASHER 14,2X31X0,3

    WASHER 14,2X31X0,3

    GU14037300
    2 in stock
    £1.87
    0
  • 10
    WASHER PLATE

    WASHER PLATE

    GU01038730
    Back order
    £3.91
    0
  • 11
    OUTER SPRING

    OUTER SPRING

    GU37037405
    6 in stock
    £14.82
    0
  • 12
    INNER SPRING

    INNER SPRING

    GU37037605
    6 in stock
    £17.24
    0
  • 13
    UPPER CUP

    UPPER CUP

    GU01038060
    6 in stock
    £33.19
    0
  • 14
    VALVE HALF-CONE

    VALVE HALF-CONE

    GU01038160
    12 in stock
    £5.82
    0
  • 15
    OIL PLUG

    OIL PLUG

    GU12022600
    Back order
    £26.81
    0
  • 16
    O-RING 20,24X2,62

    O-RING 20,24X2,62

    GU90706203
    14 in stock
    £1.03
    0
  • 17
    RUBBER SPACER

    RUBBER SPACER

    GU05025331
    Back order
    £11.99
    0
  • 18
    BUSHING 5,2X7X6

    BUSHING 5,2X7X6

    GU91110506
    Back order
    £1.06
    0
  • 19
    STUD BOLT

    STUD BOLT

    GU96508040
    Back order
    £12.07
    0
  • 20
    GASKET

    GASKET

    GU03022055
    more info + more info -
    Technical Specification: Up to engine < KS13769[M7]
    Replaced by

    CYL HEAD GASKET (M9)

    GU03022055X
    Discontinued
    1 in stock
    N/A
    £13.37
    0
  • 21
    HEX SOCKET SCREW M5X16

    HEX SOCKET SCREW M5X16

    AP8152268
    31 in stock
    £8.59
    0
  • 22
    ROCKER ARM SUPPORT

    ROCKER ARM SUPPORT

    GU14034865
    more info + more info -
    Technical Specification: Up to engine < KS13769[M7]
    Back order
    £236.68
    0
  • 23
    NUT M10X1,5

    NUT M10X1,5

    GU92603010
    Back order
    £1.28
    0
  • 24
    WASHER 10,5X21X1

    WASHER 10,5X21X1

    GU14018400
    Back order
    £0.94
    0
  • 25
    RH ROCKER ARM ASSY

    RH ROCKER ARM ASSY

    GU14030201
    Back order
    £232.85
    0
  • 26
    LH ROCKER ARM ASSY

    LH ROCKER ARM ASSY

    GU14030401
    Back order
    £232.85
    0
  • 27
    BUSHING 15X18X43

    BUSHING 15X18X43

    GU91111511
    Back order
    £52.46
    0
  • 28
    ADJUSTER SCREW

    ADJUSTER SCREW

    GU17034050
    Back order
    £11.32
    0
  • 29
    NUT

    NUT

    GU10034100
    Back order
    £10.00
    0
  • 30
    SPRING

    SPRING

    GU94322215
    Back order
    £10.13
    0
  • 31
    WASHER 15,2X26X1

    WASHER 15,2X26X1

    GU90118152
    Back order
    £10.05
    0
  • 32
    WASHER 15,2X26X0,5

    WASHER 15,2X26X0,5

    GU10032700
    Back order
    £1.03
    0
  • 33
    ROCKER SHAFT

    ROCKER SHAFT

    GU12031800
    Back order
    £84.49
    0
  • 34
    HEX SCREW

    HEX SCREW

    GU98084316
    Back order
    £0.94
    0
  • 35
    WASHER 6,5X11X2

    WASHER 6,5X11X2

    GU95120065
    Back order
    £0.76
    0
  • 36
    HEAD COVER

    HEAD COVER

    GU06023500
    Back order
    £180.22
    0
  • 37
    INSERT

    INSERT

    GU06941000
    1 in stock
    £12.60
    0
  • 38
    COVER GASKET

    COVER GASKET

    976139
    4 in stock
    £8.89
    0
  • 39
    SCREW M6X50

    SCREW M6X50

    GU05025932
    Back order
    £5.95
    0
  • 40
    LOWER CUP 14,2X32X5

    LOWER CUP 14,2X32X5

    GU01037030
    Back order
    £22.71
    0
  • 41
    WASHER 10,5X18X0,8

    WASHER 10,5X18X0,8

    GU95129180
    Back order
    £0.76
    0
  • 42
    SCREW

    SCREW

    GU05021831
    more info + more info -
    Technical Specification: Until engine < KS12937[M5]
    Back order
    £27.21
    0
  • 42
    SCREW

    SCREW

    976144
    more info + more info -
    Technical Specification: From engine KS12938[M6]
    1 in stock
    £29.08
    0
  • 43
    SPARK PLUG COVER

    SPARK PLUG COVER

    GU06023400
    Back order
    £35.70
    0
  • 44
    SCREW M6X35

    SCREW M6X35

    GU05025931
    Back order
    £12.03
    0
  • 45
    BUSHING 6,2X8,4X17,2

    BUSHING 6,2X8,4X17,2

    GU91120617
    2 in stock
    £3.72
    0
  • 46
    O-RING 9X2

    O-RING 9X2

    GU90706094
    more info + more info -
    Technical Specification: Up to engine < KS13769[M7]
    14 in stock
    £1.40
    0
  • 47
    COVER

    COVER

    976068
    19 in stock
    £11.43
    0
  • 48
    WASHER

    WASHER

    969973
    Replaced by

    WASHER 10.5X16X2.5

    486075
    Discontinued
    108 in stock
    N/A
    £1.21
    0
