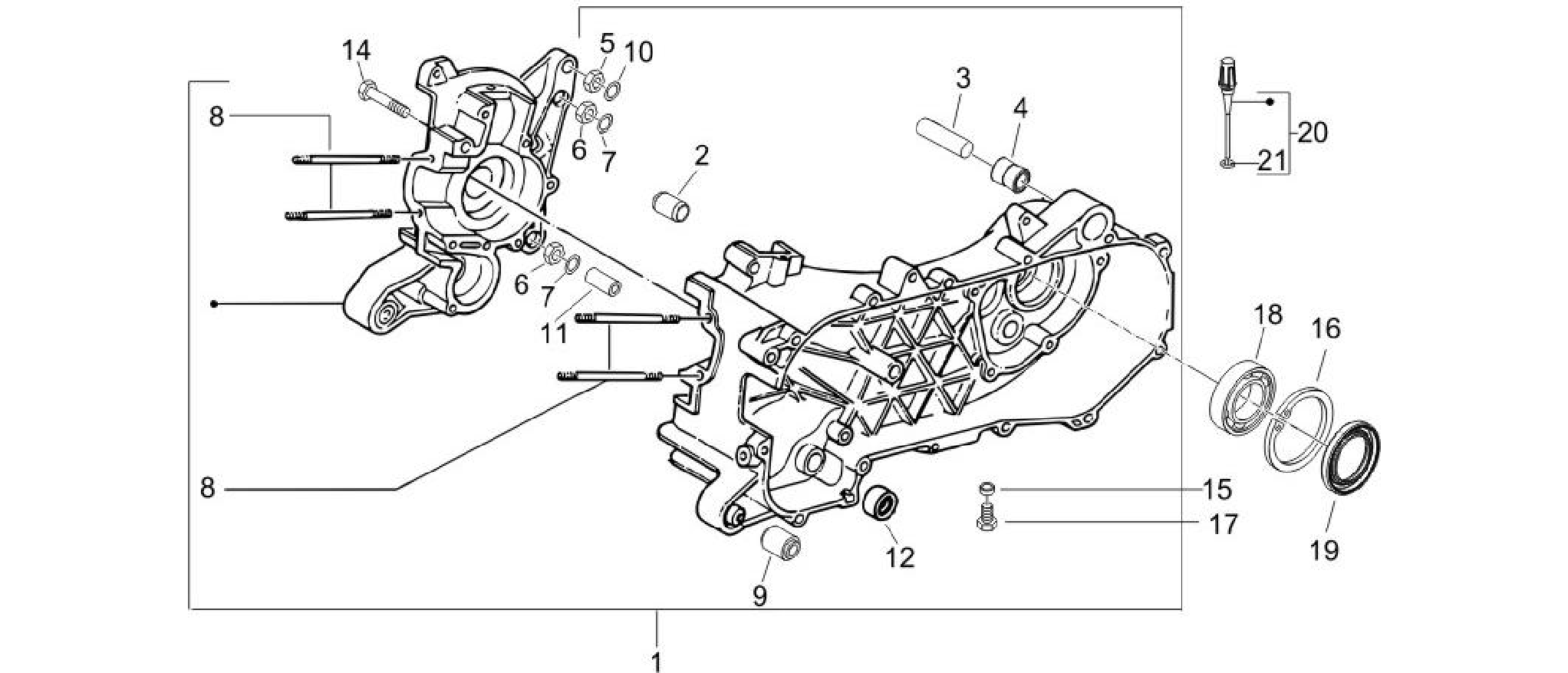

Piaggio NRG Power DD 2005 (EMEA) Crankcase

Crankcase

Position

Part Name

Stock

Price

1

***CRANKCASE ASSY

CM127325

Back order
£128.10

0
2

PIN 6,5X9,5X15

239388

46 in stock
£0.63

0
3

SPACER

266625

33 in stock
£1.66

0
4

SHOCK ABSORBER CONNECTION SILENT BLOCK

267823

3 in stock
£2.56

0
5

NUT

020006

34 in stock
£1.11

0
6

NUT M8-6H (CH13)

020008

Out of stock
£0.00
7

RING

113533

Back order
£1.63

0
8

STUD BOLT

239382
Replaced by

STUD BOLT

1A003633R

36 in stock

Back order
£0.87

£2.90

0

0
9

SILENT-BLOCK

266773

12 in stock
£8.87

0
10

RING

287223

Back order
£0.52

0
11

BUSH Ø8XØ12X8

431860

68 in stock
£1.18

0
12

GASKET RING

4352035

6 in stock
£11.02

0
14

SCREW

414835

19 in stock
£0.13

0
15

GASKET

000397

53 in stock
£1.11

0
16

CIRCLIP

006647

72 in stock
£0.83

0
17

COUNTERSUNK CYLINDRICAL HEX HEAD SCREW M8X12

269755

20 in stock
£1.13

0
18

BEARING 20X47X14

434735
Replaced by

DEEP GROOVE BALL BEARING

5110/200651

Back order

16 in stock
£14.62

£4.59

0

0
19

GASKET RING

478498

29 in stock
£5.22

0
20

COMPLETE OIL LEVEL DIPSTICK

832130

47 in stock
£4.52

0
21

GASKET RING 14,43X9,19X2,62

827085

146 in stock
£0.52

0
