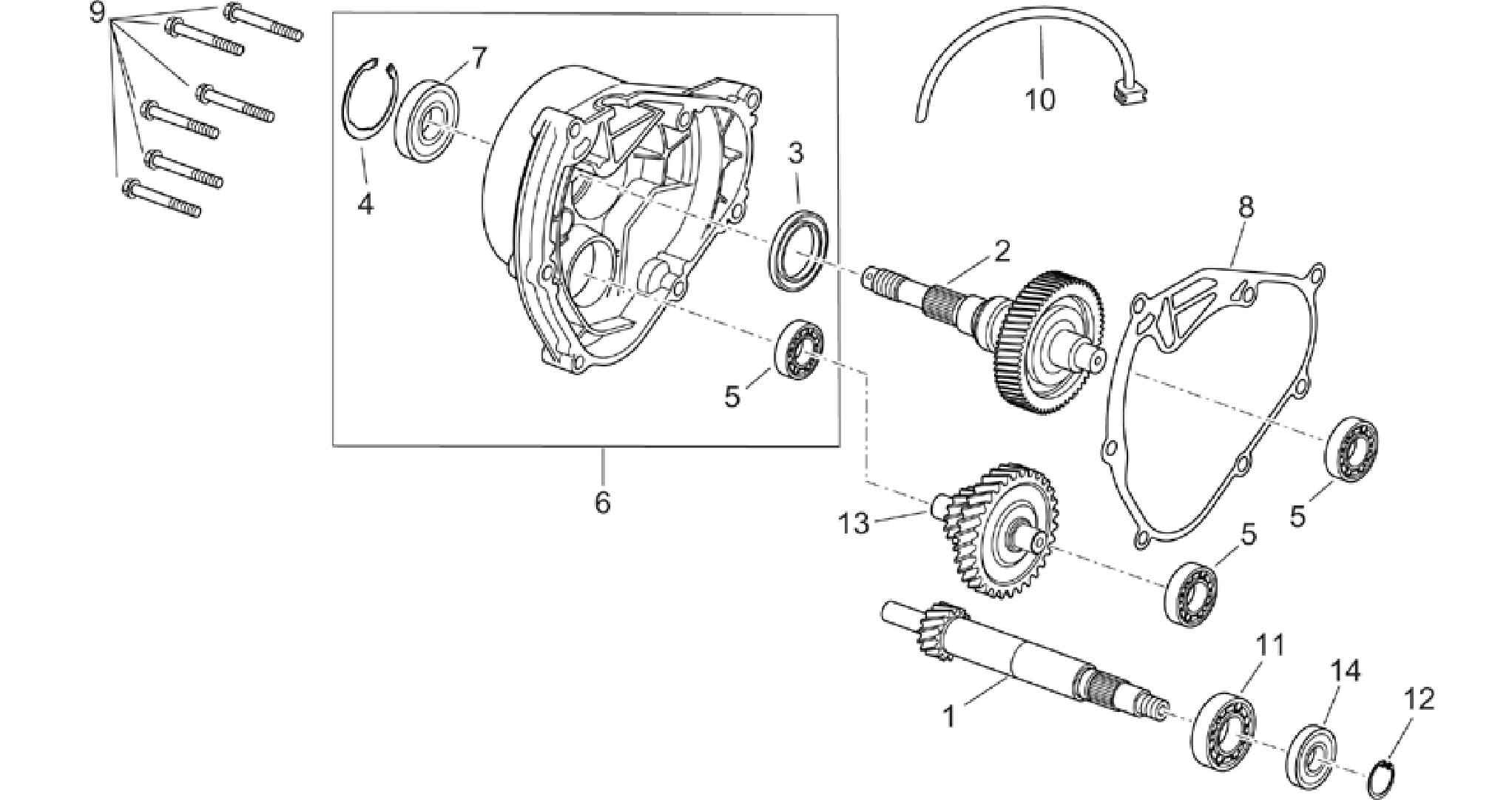

Scarabeo eng.Piaggio 2003 (APAC, EMEA) Transmission

Transmission
Skip to results list
Position
Part Name
Stock
Price
  • 1
    DRIVEN PULLEY SHAFT Z 15

    DRIVEN PULLEY SHAFT Z 15

    AP8575018
    Replaced by

    DRIVEN PULLEY SHAFT Z=14

    8738755
    Discontinued
    Back order
    N/A
    £176.74
    0
  • 2
    REAR WHEEL AXIS CPL.

    REAR WHEEL AXIS CPL.

    AP8575020
    more info + more info -
    Technical Specification: 125 cc version (M281M)[125]
    Replaced by

    REAR WHEEL AXIS CPL.

    8305995
    Discontinued
    Discontinued
    N/A
    N/A
  • 2
    REAR WHEEL AXIS CPL.

    REAR WHEEL AXIS CPL.

    AP8575019
    more info + more info -
    Technical Specification: 200 cc version (M282M)[200]
    Replaced by

    ALB. TRASM. FIN

    8305005
    Discontinued
    Back order
    N/A
    £101.99
    0
  • 3
    OIL SEAL 38X50X7

    OIL SEAL 38X50X7

    AP8560125
    Replaced by

    OIL SEAL 38X50X7

    873351
    9 in stock
    21 in stock
    £6.10
    £6.10
    0
    0
  • 4
    CIRCLIP

    CIRCLIP

    AP8560130
    Replaced by

    CIRCLIP

    829206
    1 in stock
    1 in stock
    £1.42
    £1.42
    0
    0
  • 5
    BEARING D15X42X13

    BEARING D15X42X13

    AP8560019
    Replaced by

    RADIAL BALL BEARING 15X42X13

    485912
    6 in stock
    15 in stock
    £18.23
    £18.23
    0
    0
  • 6
    TRANSMISSION COVER CPL.

    TRANSMISSION COVER CPL.

    AP8575021
    Replaced by

    SIDE COVER

    8481875
    Discontinued
    Back order
    N/A
    £203.25
    0
  • 7
    BEARING D30X55X13

    BEARING D30X55X13

    AP8560126
    Replaced by

    RADIAL BEARING 30X55X13

    82659R
    2 in stock
    3 in stock
    £9.77
    £9.77
    0
    0
  • 8
    GASKET

    GASKET

    AP8575022
    Replaced by

    GASKET

    847931
    Discontinued
    8 in stock
    N/A
    £6.13
    0
  • 9
    SCREW

    SCREW

    AP8570077
    Replaced by

    SCREW W/ FLANGE M8X45

    487211
    Discontinued
    20 in stock
    N/A
    £0.95
    0
  • 10
    BREATHER

    BREATHER

    AP8580189
    Replaced by

    BREATHER

    830862
    Discontinued
    Back order
    N/A
    £7.91
    0
  • 11
    BEARING

    BEARING

    AP8575025
    Replaced by

    RADIAL BALL BEARING 20X47X14

    833701
    Discontinued
    1 in stock
    N/A
    £20.58
    0
  • 12
    SNAP RING

    SNAP RING

    AP8560007
    Replaced by

    CIRCLIP 25X26.9X1.2

    000674
    Discontinued
    68 in stock
    N/A
    £1.93
    0
  • 13
    TRANSMISSION SHAFT

    TRANSMISSION SHAFT

    AP8575024
    more info + more info -
    Technical Specification: 200 cc version (M282M)[200]
    Replaced by

    SHAFT B200

    8301575
    Discontinued
    Back order
    N/A
    £240.20
    0
  • 13
    TRANSMISSION SHAFT

    TRANSMISSION SHAFT

    AP8575023
    more info + more info -
    Technical Specification: 125 cc version (M281M)[125]
    Replaced by

    TRANSMISSION SHAFT

    8305985
    Discontinued
    Back order
    N/A
    £195.44
    0
  • 14
    GASKET RING

    GASKET RING

    AP8550577
    Replaced by

    GASKET RING 20-32-7

    82878R
    7 in stock
    16 in stock
    £10.18
    £10.18
    0
    0
