Piaggio BV 500 Tourer 2008 (NAFTA) Crankcase

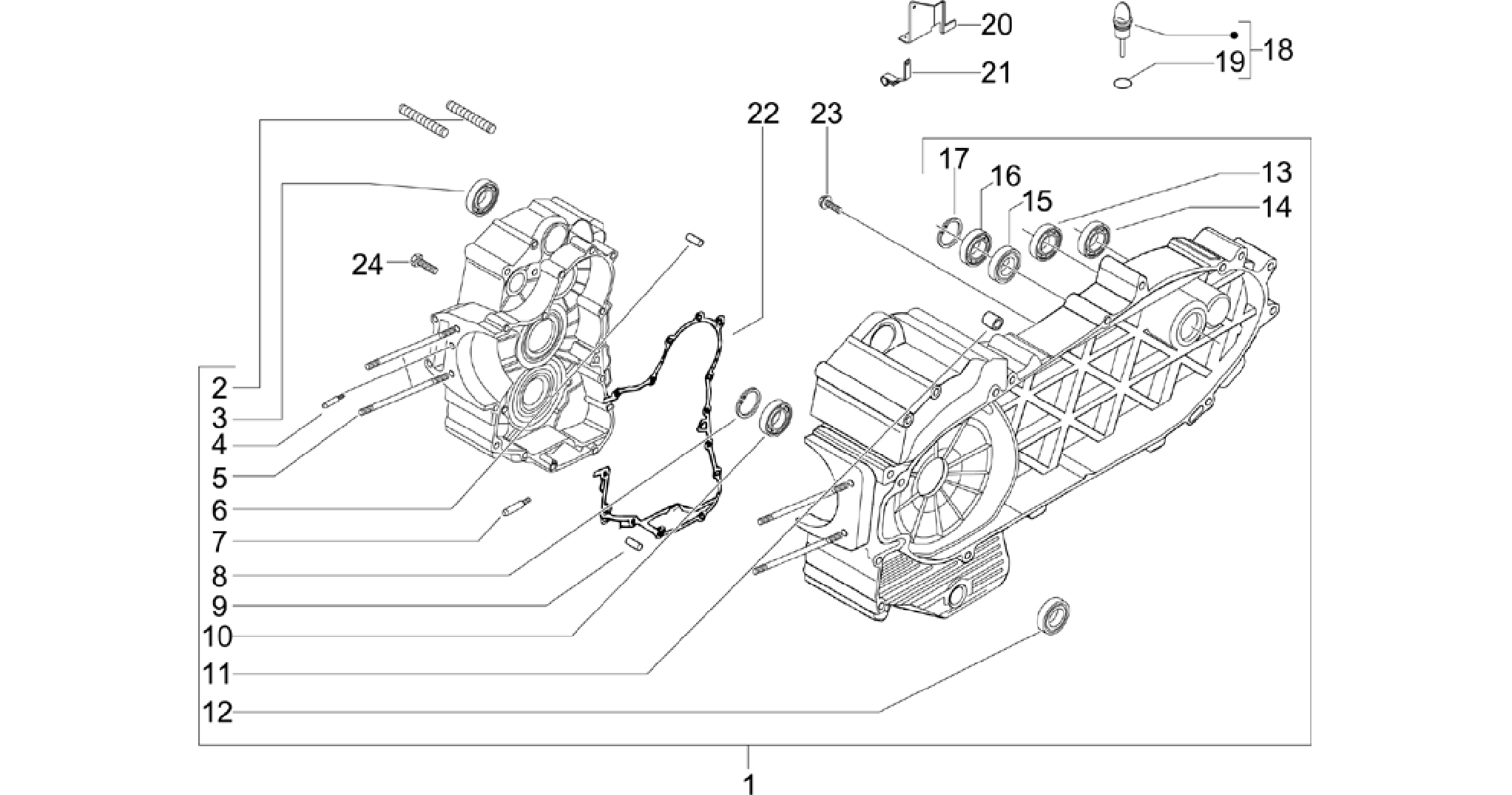

Crankcase
Skip to results list
Position
Part Name
Stock
Price
  • 1
    CRANKCASE ASSY. CLASS 4

    CRANKCASE ASSY. CLASS 4

    CM1145080004
    Back order
    £271.59
    0
  • 1
    CRANKCASE ASSY. CLASS 3

    CRANKCASE ASSY. CLASS 3

    CM1145080003
    Back order
    £271.59
    0
  • 1
    CRANKCASE CLASS 2

    CRANKCASE CLASS 2

    CM1145080002
    Back order
    £435.91
    0
  • 1
    CRANKCASE ASSY. CLASS 1

    CRANKCASE ASSY. CLASS 1

    CM1145080001
    Back order
    £435.91
    0
  • 3
    BEARING 20X42X1

    BEARING 20X42X1

    82656R
    4 in stock
    £9.98
    0
  • 4
    NOZZLE

    NOZZLE

    825649
    Back order
    £2.49
    0
  • 5
    STUD BOLT M10X1,25X51

    STUD BOLT M10X1,25X51

    833513
    1 in stock
    £0.68
    0
  • 6
    LOCATING DOWEL Ø11X10

    LOCATING DOWEL Ø11X10

    478115
    19 in stock
    £0.38
    0
  • 7
    NOZZLE

    NOZZLE

    484034
    9 in stock
    £6.73
    0
  • 8
    CIRCLIP

    CIRCLIP

    006647
    72 in stock
    £0.83
    0
  • 9
    LOCATING DOWEL

    LOCATING DOWEL

    484993
    Back order
    £0.96
    0
  • 10
    BALL BEARING

    BALL BEARING

    82668R
    2 in stock
    £24.07
    0
  • 11
    PIN 6,5X9,5X15

    PIN 6,5X9,5X15

    239388
    46 in stock
    £0.63
    0
  • 12
    OIL SEAL 35X47X7

    OIL SEAL 35X47X7

    873932
    Back order
    £15.62
    0
  • 13
    RADIAL BALL BEARING 20X47X14

    RADIAL BALL BEARING 20X47X14

    833701
    1 in stock
    £8.63
    0
  • 14
    STUD BOLT M10X1.25X51

    STUD BOLT M10X1.25X51

    877282
    Back order
    £1.84
    0
  • 14
    RADIAL BALL BEARING 15X42X13

    RADIAL BALL BEARING 15X42X13

    485912
    15 in stock
    £18.23
    0
  • 15
    OIL SEAL 40X25X7

    OIL SEAL 40X25X7

    873931
    1 in stock
    £12.94
    0
  • 15
    OIL SEAL 25X40X7

    OIL SEAL 25X40X7

    825238
    9 in stock
    £3.31
    0
  • 16
    BEARING 52X25X15

    BEARING 52X25X15

    825233
    4 in stock
    £6.61
    0
  • 17
    STUD BOLT M10X1.25X166

    STUD BOLT M10X1.25X166

    827951
    Replaced by

    STUD BOLT M10X1.25X166

    877281
    Discontinued
    1 in stock
    N/A
    £5.29
    0
  • 17
    CIRCLIP 25X26.9X1.2

    CIRCLIP 25X26.9X1.2

    000674
    68 in stock
    £0.96
    0
  • 18
    COMPLETE OIL LEVEL DIPSTICK

    COMPLETE OIL LEVEL DIPSTICK

    832130
    47 in stock
    £4.52
    0
  • 19
    GASKET RING 14,43X9,19X2,62

    GASKET RING 14,43X9,19X2,62

    827085
    146 in stock
    £0.52
    0
  • 20
    BRACKET

    BRACKET

    834911
    4 in stock
    £2.29
    0
  • 21
    HOSE CLAMP

    HOSE CLAMP

    564629
    5 in stock
    £2.90
    0
  • 22
    HALF CRANKCASE GASKET

    HALF CRANKCASE GASKET

    872909
    Back order
    £17.17
    0
  • 23
    SCREW M6X70

    SCREW M6X70

    434429
    Back order
    £2.01
    0
  • 24
    SCREW W/ FLANGE M6X65

    SCREW W/ FLANGE M6X65

    828909
    20 in stock
    £0.46
    0
